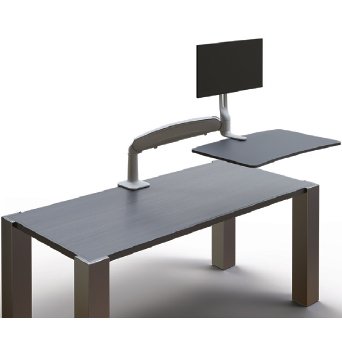

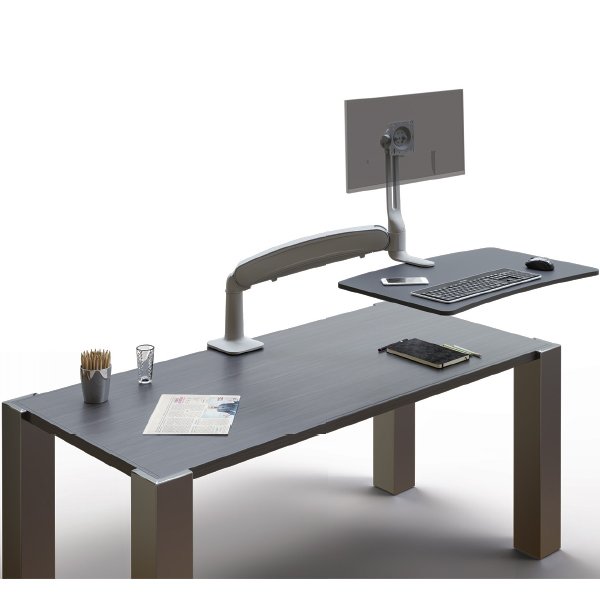

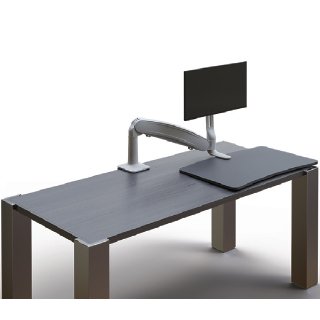

Workrite SOL-SINGLE-CCG-S Solace Single Sit-Stand Workstation

Product ID 18788
Workrite SOL-SINGLE-CCG-S Solace Single Sit-Stand Workstation
Standing position
Seated position
Workrite SOL-SINGLE-CCG-S Solace Single Sit-Stand Workstation
Standing position
Seated position


Arm Features:

◆ 31 lb capacity
◆ 18.5" lift range
◆ 360° rotation at base, 180° with included pivot limiter
◆ Monitor tower and keyboard platform rotate independently
◆ Available in silver
◆ Warranty: 5 years

Monitor Mount Features:

◆ Supports one 6– 24 lb monitor
◆ 6.3" independent monitor height adjustment

Platform Features:

◆ 28" w × 18" d Phenolic platform

◆ Platform can be mounted above mounting plate for clean look or below to lay flush with worksurface


For more than 25 years, Workrite Ergonomics has been helping organizations create happier, healthier and more productive workplaces. We take issues like neck and back pain, blurred vision, and headaches caused by extended computer use seriously, and are committed to helping organizations fight these increasingly common problems.

Workrite's Solace series of products was specifically designed to address these issues. The Solace family, which includes our new Solace 2, Solace Single Surface and Solace Desk Top, has evolved to include a range of solutions designed to address all your Sit-to-Stand needs. It now includes options that offer the greatest level of adjustability and desk space utilization, delivering ergonomic solutions for virtually any budget.

The Solace family of products features simple and quick installation designed to save organizations both time and money and has the flexibility to accommodate a wide variety of users, and deliver stable, customizable workspaces that increase comfort and productivity. Solace - For the Way You Work.

Solace Single: Sit-Stand benefits at a value price

The Solace Single will allow users to easily transform their existing desk to a sit-stand workstation. The Solace Single uses a gas assist counter balanced arm to raise and lower the single surface workstation through 18.5" of smooth acting height adjustment with industry leading stability. To maximize the use of the desk surface, the work surface can also be swung to the side when not in use. The Solace Single will complement every working environment and provide an ergonomic workstation at a value price.

Solace Single Arm

  • Height adjustment range of 18.5"

  • A large adjustment range allows most users to experience the benefits of a sit-stand workstation

  • Accommodates a wide range of technology requirements with balanced functionality

Solace Single Independent Monitor Adjustment - The Solace Single also incorporates the ability to fine-tune independent adjustments to your monitor. The user can adjust monitor pivot, tilt and height with minimal effort thanks to the independently pivoting monitor tower and monitor height adjustment knob.

  • Supports one 6-24 lbs monitor

  • 6.3" of independent height adjustment

  • Standard VESA (75 mm & 100 mm)

  • Quick Release Adaptor included for faster monitor installation

Optional Dual Monitor Adaptor - Supports two monitors 1-10 lbs each and up to 22" wide.

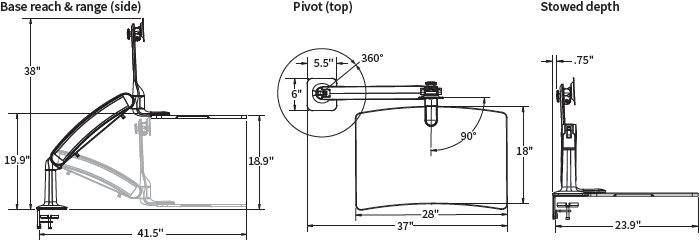

Technical Drawing

Technical Drawing for Workrite SOL-SINGLE-CCG-S Solace Single Sit-Stand Workstation


  Solace 2 Solace Single Solace Desktop
Load Capacity 14-32 lbs 13-31 lbs 35 lbs
Height Range 22" 18.5" 13.8" (20" above desktop)
Arm Pivot at Base/Monitor 360°/180° 360°/180° N/A
Keyboard Platform Range 3.75" N/A 14.6" (with worksurface)
Keyboard Platform Tilt +4°/-15° N/A +10°/-10°
Monitor Height Range 9.5" 6.3" N/A
Monitor Tilt Range/Swivel +4°/-40°, 90°  +4°/-40°, 90° N/A
Single Monitor Load Range 6.5-24.5 lbs 6-24 lbs N/A
Optional Dual Monitor Load Range 1.25-10.25 lbs (each) 1-10 lbs (each) N/A
Stowed Depth/Height 16" D 23.9" D 6.2" H
Color Silver Silver Black
Integrated Monitor Mount Yes Yes -
Keyboard Platform Yes Yes Yes
Secondary Worksurface Yes - -
Integrated Cable Management Yes Yes Yes
Optional Dual Monitor Adaptor Yes Yes N/A
Included Monitor Quick Release Adaptor Yes Yes N/A
Mounting Options
C-Clamp Yes Yes N/A
Grommet Yes Yes N/A
Warranty 5 years 5 years 2 years
Manufacturer Workrite Ergonomics
Color Silver
Weight Capacity 13-31 lbs
Lift 18.5 in
Rotation At base 360 degree, at monitor mount 180 degree
Monitor Height Range: 6.3"
Monitor Tilt Range/Swivel +4°/-40°, 90°
Weight Range Single Monitor: 6-24 lbs, Optional Dual Monitor: 1-10 lbs (each)
Stowed Depth/Height 23.9" D
Warranty 5 years
Mounting Options C-Clamp and Grommet
Price $400 - $499

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)


Workrite warrants to the original purchaser that the products it manufactures are free from defects in design, material and workmanship. Subject to the limitations below, Workrite warrants each product in this catalog to be free from defects in materials and workmanship for the life of the product in its original installation. With prompt written notice, Workrite will repair or replace, free of charge, any product, part or component which fails under normal use as a result of such defect.

  • Sierra HX Height Adjustable Workcenter components - Limited Lifetime
    Electric components, motors, frames, brackets and feet.

All of the following exceptions to the limited lifetime warranty apply:

  • Fundamentals Electric Height Adjustable Workcenter components - 10 years
    Electric components, motors, frames, brackets and feet

  • Essentia Height Adjustable Workcenter components - 5 years
    Electric components, motors, frames, brackets and feet

  • Laminated worksurfaces and modesty panels - 5 years

  • Sierra HXL Crank Height Adjustable Workcenter components - 5 years
    Including crank mechanisms

  • Cascade Height Adjustable Workcenter components - 5 years
    Including counter-balance mechanisms

  • Line of Sight electrical components and manual lifts - 5 years

  • Line of Sight frames and metal desk parts - 5 years

  • Monitor supports and mounts - 10 years

  • Solace Clamp-on sit-stand products - 5 years

  • Solace Desktop sit-stand products - 2 years

  • LED and florescent lighting fixtures - 5 years

  • Lighting transformers and fluorescent ballasts - 1 year

  • Tranquility Wool & PET Felt panels and mounts - 5 years

  • Tranquility Poly Panels - 2 years

  • Fabrics, modesty panels, custom products and special order items - 2 years

  • Mousing surfaces and Slide Guide - 1 year
