Workrite SOL-DT-B Solace Desktop Sit-Stand Workstation

Product ID 18789
Workrite SOL-DT-B Solace Desktop Sit-Stand Workstation

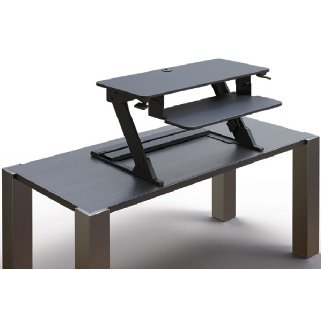

Solace Desktop Standing position

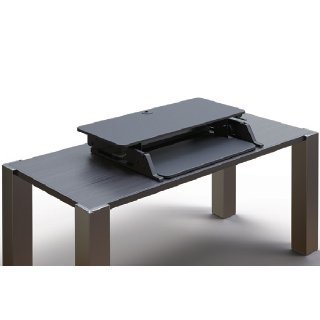

Solace Desktop Seated position
Workrite SOL-DT-B Solace Desktop Sit-Stand Workstation
Solace Desktop Standing position
Solace Desktop Seated position


  • Available in black

  • 35 lbs capacity

  • 13.8" lift range, 20" above desktop

  • Separate keyboard surface with 20° of tilt (+10°/-10°)

  • Warranty: 2 years


For more than 25 years, Workrite Ergonomics has been helping organizations create happier, healthier and more productive workplaces. We take issues like neck and back pain, blurred vision, and headaches caused by extended computer use seriously, and are committed to helping organizations fight these increasingly common problems.

Workrite's Solace series of products was specifically designed to address these issues. The Solace family, which includes our new Solace 2, Solace Single Surface and Solace Desk Top, has evolved to include a range of solutions designed to address all your Sit-to-Stand needs. It now includes options that offer the greatest level of adjustability and desk space utilization, delivering ergonomic solutions for virtually any budget.

The Solace family of products features simple and quick installation designed to save organizations both time and money and has the flexibility to accommodate a wide variety of users, and deliver stable, customizable workspaces that increase comfort and productivity. Solace - For the Way You Work.

Solace Desktop: Easy, Stable and Durable Sit Stand Converter

Quickly and economically convert an existing desk to a smooth and effortless sit-stand workstation. Solace Desktop ships fully assembled making it the ideal retrofit solution. The compact footprint of the Solace Desktop, easily fits onto a 24" deep desk with room for personal equipment. The large primary work surface includes a grommet for cable management and can accommodate an added Workrite Monitor Arm or two 24" monitors. The wide lifting range and independent keyboard surface assures that users can easily set Solace Desktop to their ideal ergonomic position. Solace Desktop is strong enough to support users technology requirements, yet light enough for simple installation and moving from desk-to-desk.

  • Dual worksurface with independent keyboard surface

  • 20° Keyboard tilt (+10°/-10°)

  • 35 lbs lifting capacity

  • 13.8" lifting range, 20" above desktop

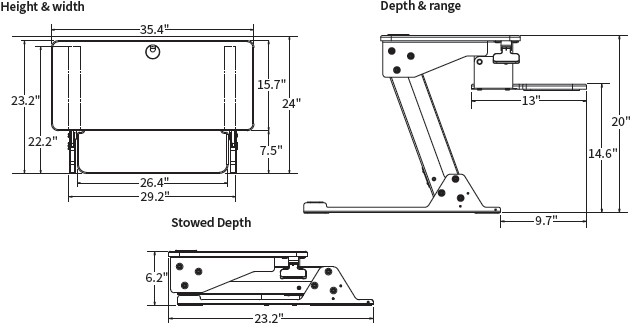

Technical Drawing

Technical Drawing for Workrite SOL-DT-B Solace Desktop Sit-Stand Workstation


  Solace 2 Solace Single Solace Desktop
Load Capacity 14-32 lbs 13-31 lbs 35 lbs
Height Range 22" 18.5" 13.8" (20" above desktop)
Arm Pivot at Base/Monitor 360°/180° 360°/180° N/A
Keyboard Platform Range 3.75" N/A 14.6" (with worksurface)
Keyboard Platform Tilt +4°/-15° N/A +10°/-10°
Monitor Height Range 9.5" 6.3" N/A
Monitor Tilt Range/Swivel +4°/-40°, 90°  +4°/-40°, 90° N/A
Single Monitor Load Range 6.5-24.5 lbs 6-24 lbs N/A
Optional Dual Monitor Load Range 1.25-10.25 lbs (each) 1-10 lbs (each) N/A
Stowed Depth/Height 16" D 23.9" D 6.2" H
Color Silver Silver Black
Integrated Monitor Mount Yes Yes -
Keyboard Platform Yes Yes Yes
Secondary Worksurface Yes - -
Integrated Cable Management Yes Yes Yes
Optional Dual Monitor Adaptor Yes Yes N/A
Included Monitor Quick Release Adaptor Yes Yes N/A
Mounting Options
C-Clamp Yes Yes N/A
Grommet Yes Yes N/A
Warranty 5 years 5 years 2 years
Model SOL-DT-B
Manufacturer Workrite Ergonomics
Part Number SOL-DT-B
Color Black
Weight Capacity 35 lbs
Lift (20" above desktop) 13.8 in
Keyboard Tray Tilt +10/-10 degee
Keyboard Platform Range 14.6" (with worksurface)
Stowed Depth/Height 6.2" H
Warranty 2 years
Price $300 - $399

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)


Workrite warrants to the original purchaser that the products it manufactures are free from defects in design, material and workmanship. Subject to the limitations below, Workrite warrants each product in this catalog to be free from defects in materials and workmanship for the life of the product in its original installation. With prompt written notice, Workrite will repair or replace, free of charge, any product, part or component which fails under normal use as a result of such defect.

  • Sierra HX Height Adjustable Workcenter components - Limited Lifetime
    Electric components, motors, frames, brackets and feet.

All of the following exceptions to the limited lifetime warranty apply:

  • Fundamentals Electric Height Adjustable Workcenter components - 10 years
    Electric components, motors, frames, brackets and feet

  • Essentia Height Adjustable Workcenter components - 5 years
    Electric components, motors, frames, brackets and feet

  • Laminated worksurfaces and modesty panels - 5 years

  • Sierra HXL Crank Height Adjustable Workcenter components - 5 years
    Including crank mechanisms

  • Cascade Height Adjustable Workcenter components - 5 years
    Including counter-balance mechanisms

  • Line of Sight electrical components and manual lifts - 5 years

  • Line of Sight frames and metal desk parts - 5 years

  • Monitor supports and mounts - 10 years

  • Solace Clamp-on sit-stand products - 5 years

  • Solace Desktop sit-stand products - 2 years

  • LED and florescent lighting fixtures - 5 years

  • Lighting transformers and fluorescent ballasts - 1 year

  • Tranquility Wool & PET Felt panels and mounts - 5 years

  • Tranquility Poly Panels - 2 years

  • Fabrics, modesty panels, custom products and special order items - 2 years

  • Mousing surfaces and Slide Guide - 1 year
