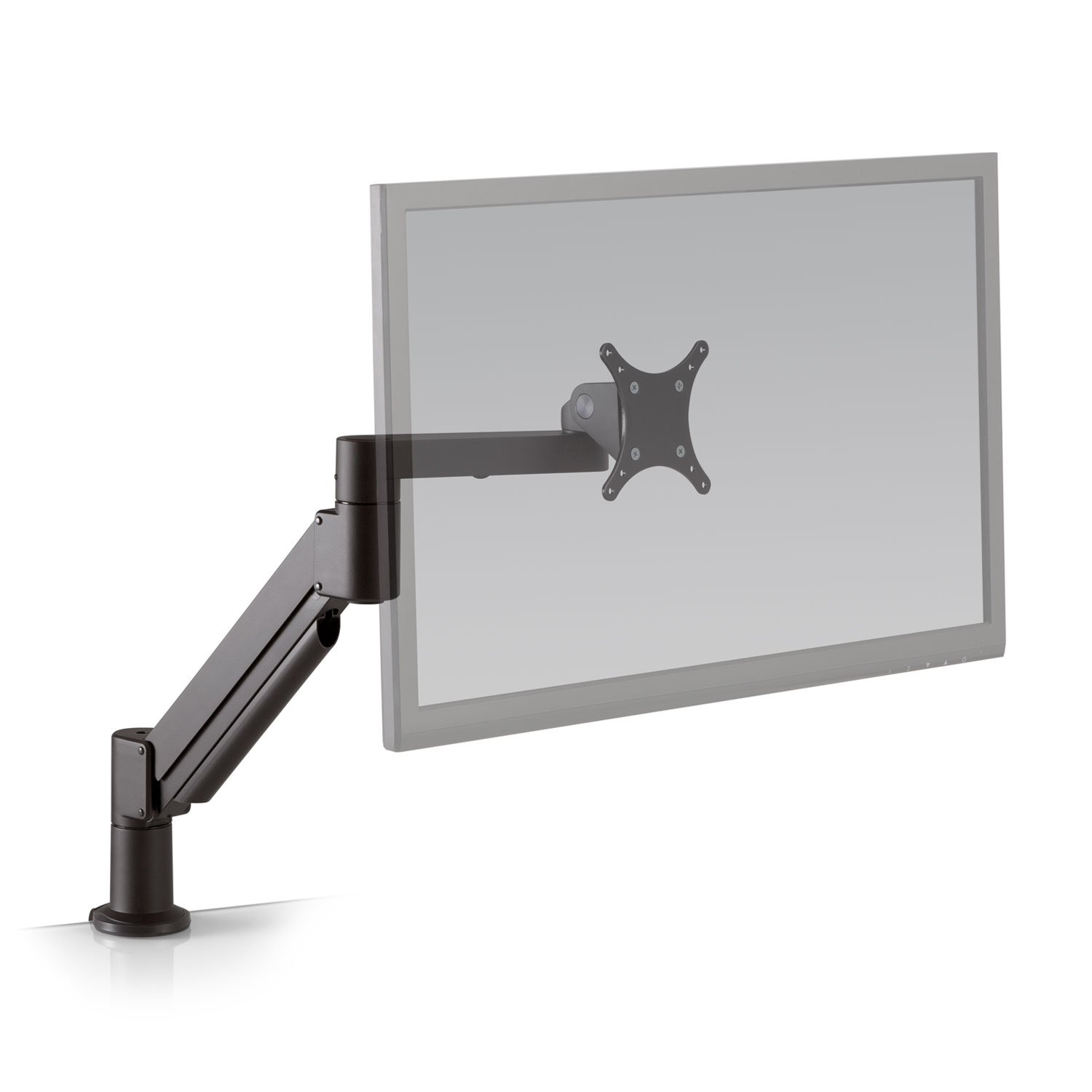

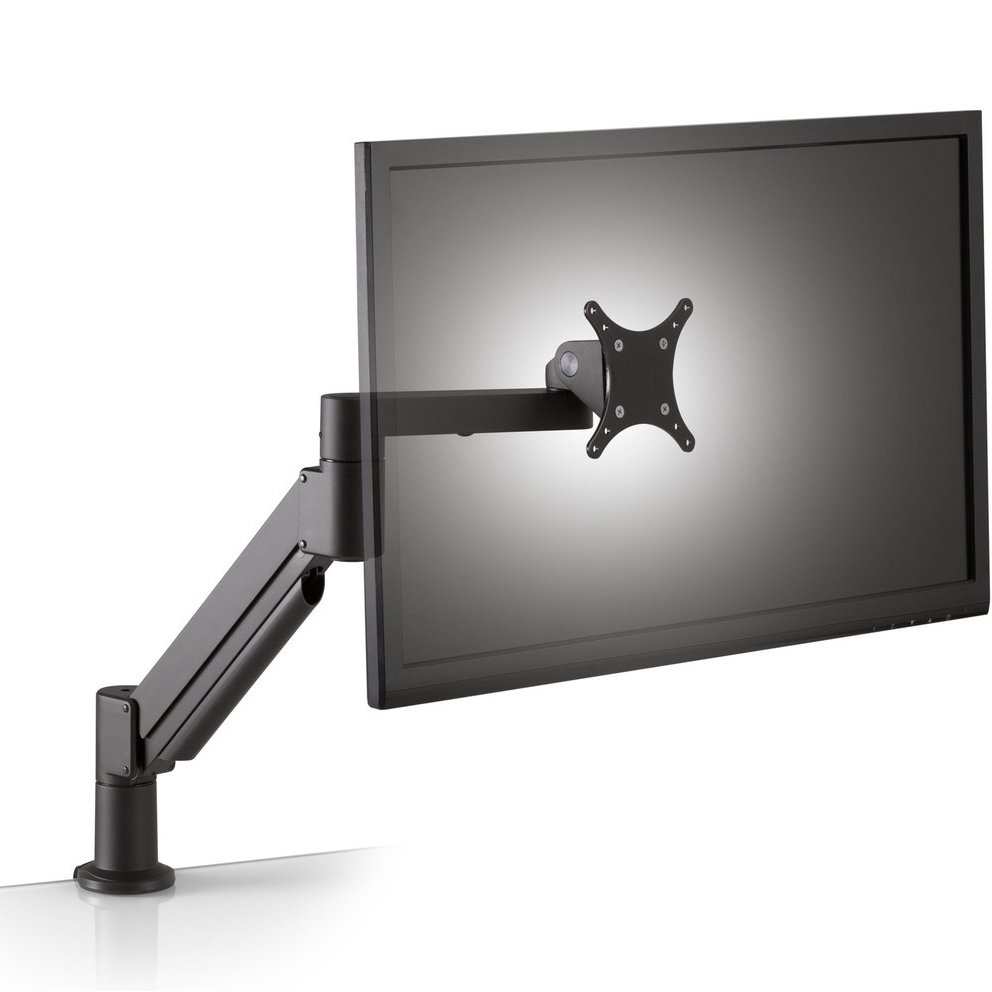

Ergotech 7Flex-HD-ETUS-104 7Flex HD LCD Monitor Arm - TAA Version

Product ID 18796


Ergotech 7Flex-HD-ETUS-104 LCD monitor arm suspends your flat panel monitor above the work surface. Move your monitor precisely where you need it, and simply move it out of the way when not in use. The unique slim profile design folds up flat to occupy just 3.5" of space. All 7Flex models include FlexMount: a 6-in-1 mounting interface that includes clamp, thru-desk, wall, grommet, side bolt and reverse wall.

7Flex is compatible with all VESA displays, including the 2012-present iMac.

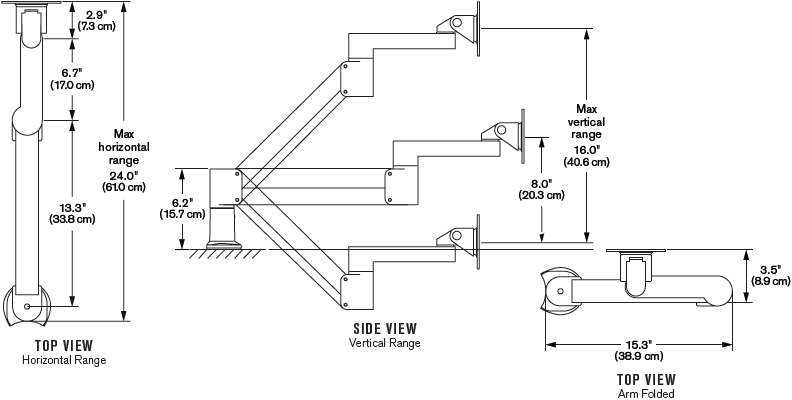

Technical Drawing

Technical Drawing for Ergotech 7Flex-HD-ETUS-104 7Flex HD LCD Monitor Arm


Weight Capacity 12 - 31 lbs
Mounting Pattern VESA 100mm
Height Adjustment 16"
Extension Range 24"
Tilt 200°
Pan 180º

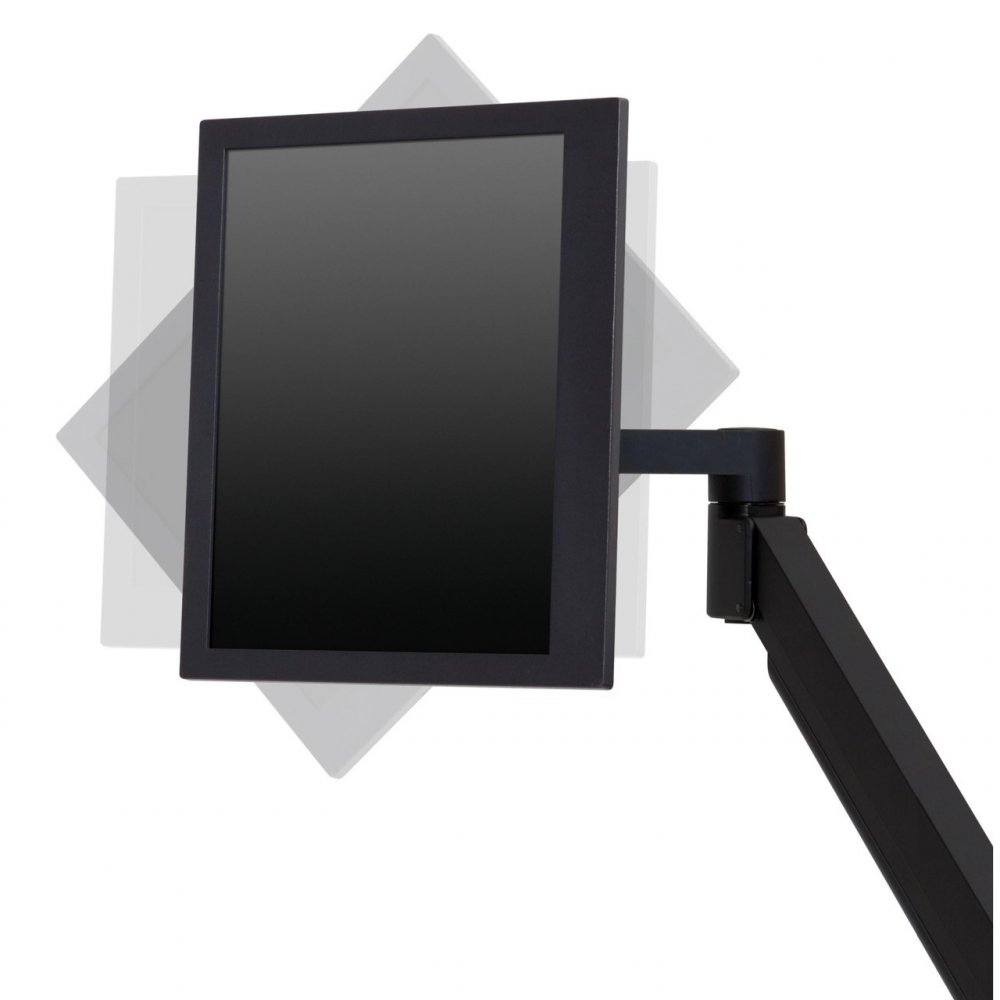

Rotation 360º on 3 joints
Max Desk Thickness 2.5"
Warranty 10 years

Product Options/Accessories

Model 7Flex-HD-ETUS-104
Manufacturer Ergotech
Part Number 7Flex-HD-ETUS-104
UPC 814595020479
Color Black
Weight Capacity 12-31 lbs
Mounting Pattern VESA 75mm and 100mm
Height Adjustment 16"
Extension 24"
Tilt 200 degree
Pan 180 degree
Rotation 360 degree
Maximum Desk Thickness 2.5"
Warranty 10 years
Mounting Options FlexMount (6-in-1 mounting interface)
