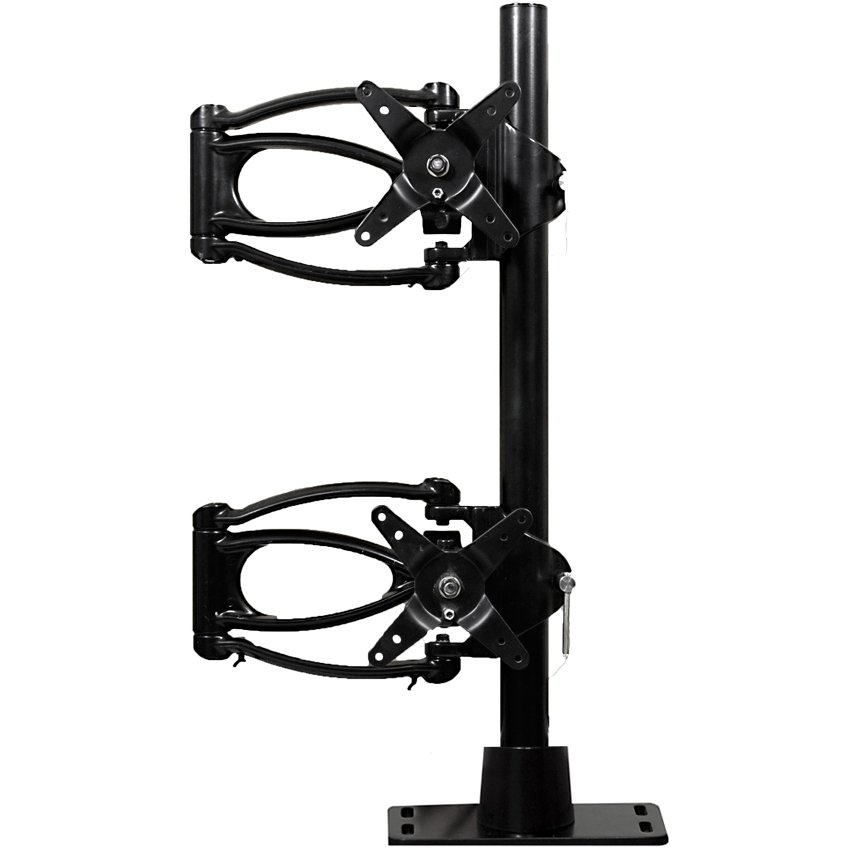

Ergotech 200-F28-B11-AP 200 Series Dual Vertical Monitor Arm

Product ID 18806
Ergotech 200-F28-B11-AP 200 Series Dual Vertical Monitor Arm
Ergotech 200-F28-B11-AP 200 Series Dual Vertical Monitor Arm


  • Includes articulating arm + 28" pole + flush mount

  • Integrated Cable Management System

  • Available in Black

  • Cost effective solution / tool-less design

  • Includes patented Quick Release Pivots

  • Easy install

  • Pivots 20º up / 10º down for each monitor

  • 75mm and 100mm VESA compatible

  • Warranty: Lifetime


Ergotech 200-F28-B11-AP 200 Series Articulating Arm is an easy, quick and cost effective solution for mounting one to four 27" monitors. Allowing you to expand and convert from one to four monitors, with NO TOOLS needed.

Workplace comfort and productivity are directly linked and Ergotech is a leader in ergonomically inspired monitor mounting solutions. The 200 Series is the industry leader in multi-monitor mounting, primarily due to it's stability, durability and LIFETIME WARRANTY.

The 200 Series Articulating Arm allows for customized monitor positioning which makes every task easier whether you are viewing financial data, reviewing documents, or engaging in other activities. Easily slide the monitors up or down on the pole to meet your height requirements. Use the patented Quick Release Pivots to tilt the monitors left and right, up and down. Rotate between both portrait and landscape views.

Technical Drawing

Technical Drawing for Ergotech 200-F28-B11-AP 200 Series Dual Vertical Monitor Arm


Monitor Weight Capacity Up to 25 lbs per monitor
Monitor Size Max 24" per monitor
VESA Compatibility 75mm & 100mm
Height Adjustment 14"
Tilt +20º / -10º
Pan 180º
Rotation 360º
Minimum Desk Thickness 1.25"
Maximum Desk Thickness 2.5"
Warranty Lifetime

Product Options/Accessories

Model 200-F28-B11-AP
Manufacturer Ergotech
Part Number 200-F28-B11-AP
Color Black
Weight Capacity 0-25 lbs per monitor
Monitor Size Max 24" per monitor
Mounting Pattern VESA 75mm & 100mm
Height Adjustment 14"
Tilt +20/-10 degree
Pan 180 degree
Rotation 360 degree
Desk Thickness 1.25" - 2.5"
Pole Length 28"
Mounting Options Flush mount
Warranty Lifetime
