Chief VPAUB or VPAUW Vertical & Portrait Projector Mount

Product ID 18850
Chief VPAUB or VPAUW Vertical & Portrait Projector Mount
Chief VPAUB or VPAUW Vertical & Portrait Projector Mount

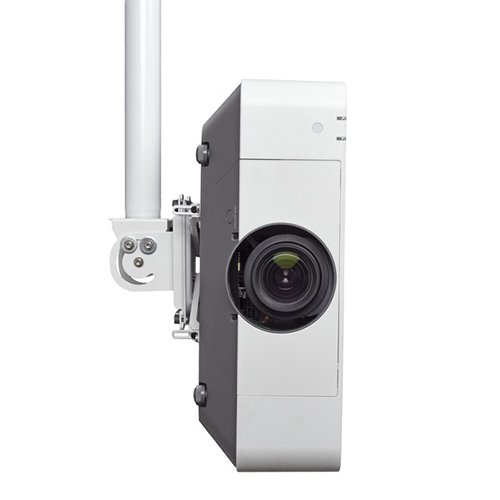

Chief’s VPAU enables projectors to be positioned in multiple orientations including popular vertical and portrait digital signage applications. A great solution for projectors that are equipped with multi-direction capabilities.

Technical Drawing

Technical Drawing for Chief VPAUB or VPAUW Vertical & Portrait Projector Mount


Adjustments Roll, Pitch, Yaw (+/-95°, 360°, 360°)
Certifications UL Listed, TÜV Certified
Color Black and White
Overall Dimensions (H x W x D) 5.5 x 6 x 5" (139.7 x 152.4 x 177.8 mm)
Solution Type Universal
Weight Capacity 75 lbs (34 kg)


  • Independent roll, pitch and yaw for quick and precise projector registration

  • Quick connect / disconnect for easy installation and servicing

  • Maintains registration when disconnected and doesn't affect preset adjustments

  • Solid steel construction

  • Universal interface compatible with 6 projector attachment points

  • Adjustable mounting legs and feet

  • Not compatible with other Chief projector interface brackets (SLB/SLM/SSB/SSM)

Product Options/Accessories

Manufacturer Chief Mounts
Part Number VPAUB, VPAUW
UPC 841872168265
Color Black and White
Roll +/-95 degree
Pitch 360 degree
Yaw 360 degree
Overall Dimensions 5.5 x 6 x 5” (139.7 x 152.4 x 177.8 mm)
Weight Capacity 75 lbs (34 kg)
