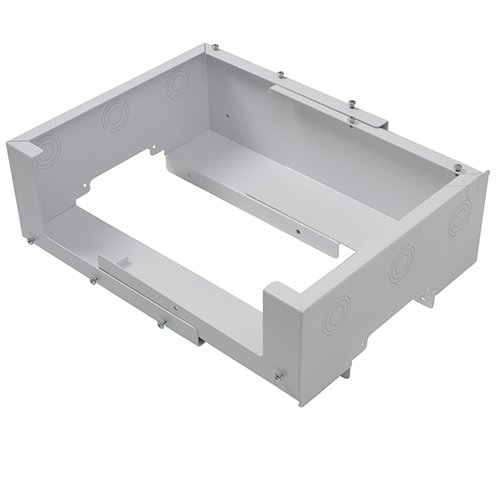

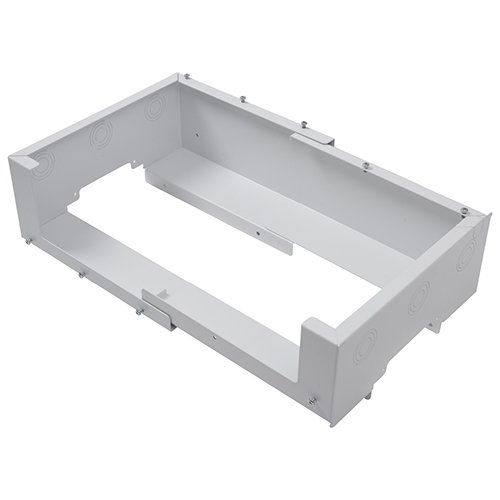

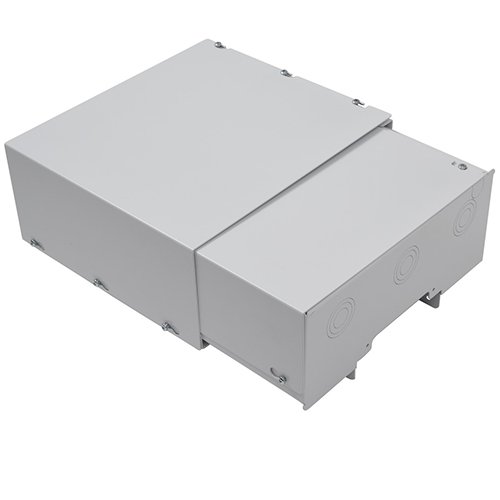

Chief CMA474 SYSAU Plenum Rated Storage Box
Description
Chief CMA474 plenum storage system scales and shifts to fit AV equipment and avoid plenum obstructions. Only compatible with the SYS Suspended Ceiling Projector System.

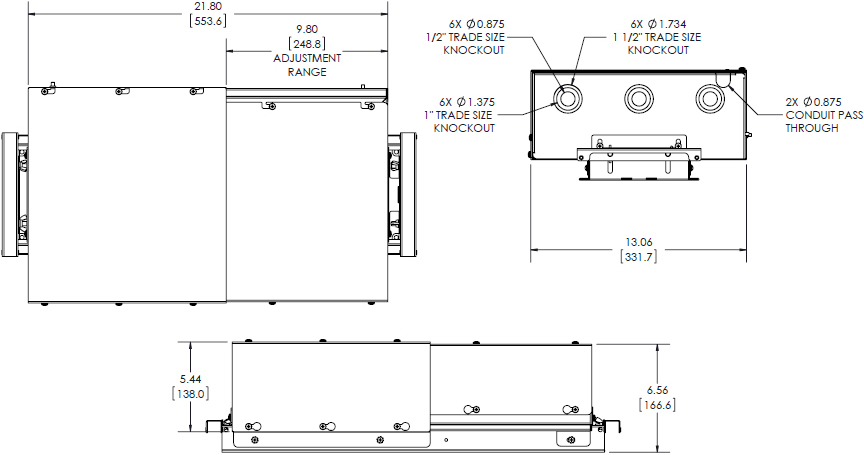

Technical Drawing
Specifications
| Certifications | UL Listed |
| Color | White |
| Notes | Collapsed Width 12" (305 mm) |
| Overall Dimensions (H x W x D) | 5.38 x 22 x 13" (137 x 559 x 330 mm) (expanded dimensions) |
| Weight Capacity | 35 lbs (15.9 kg) |
Features
Plenum-rated enclosure is scalable to fit AV equipment
Shift enclosure along tile bridge to avoid plenum interferences
Removable covers enable side access in shallow plenum spaces and full access from above
Six trade size conduit knockouts in 0.5", 1", 1.5" (12, 25, 38 mm)
Flexible conduit knockouts allow high voltage conduit to pass through plenum box when the power is facing into the room below.
Compatible with SYS Suspended Ceiling Projector System
Product Options/Accessories
| Model | CMA474 |
| Manufacturer | Chief Mounts |
| Part Number | CMA474 |
| UPC | 841872167503 |
| Color | White |
| Overall Dimensions | 5.38 x 22 x 13" (137 x 559 x 330 mm) (expanded dimensions) |
| Weight Capacity | 35 lbs (15.9 kg) |
