Workrite CIG2-UCL Ciglio 2 LED Under-Cabinet Light

Product ID 18854

Description

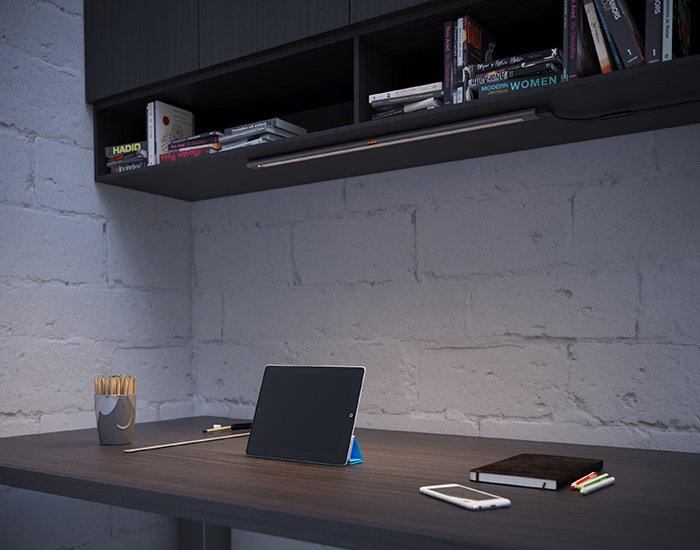

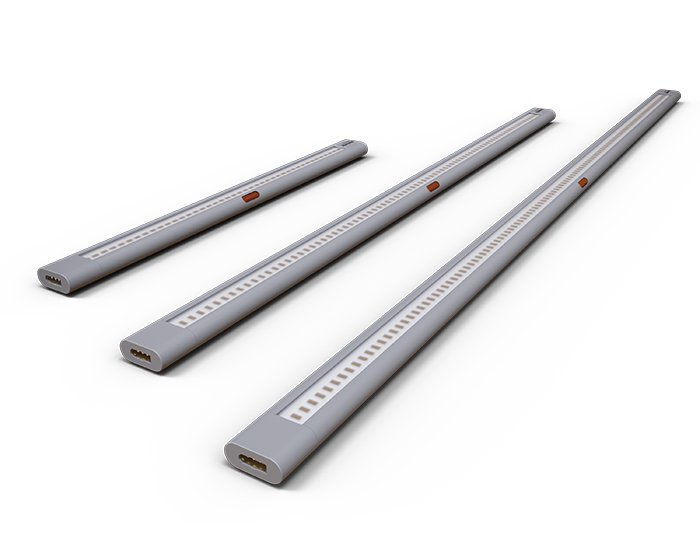

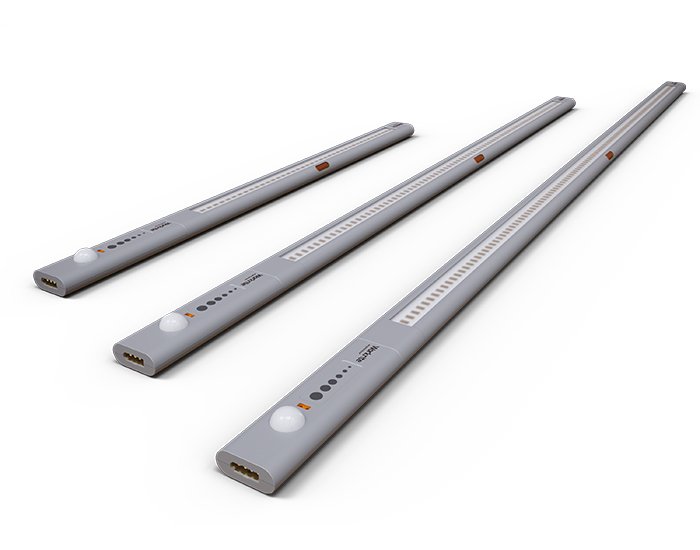

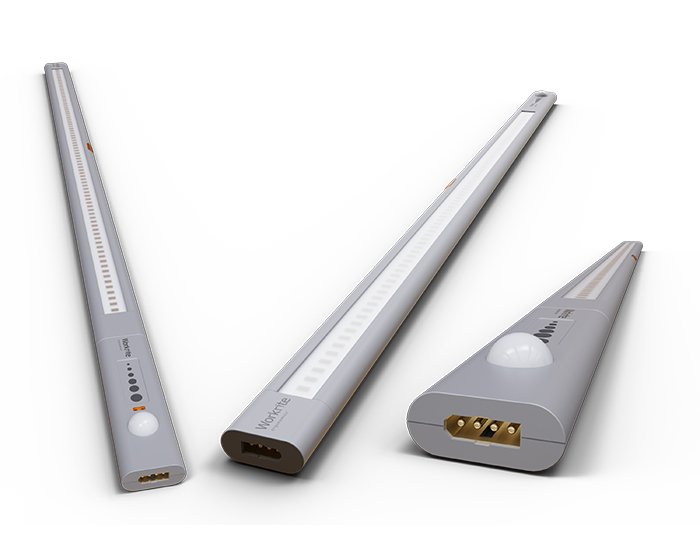

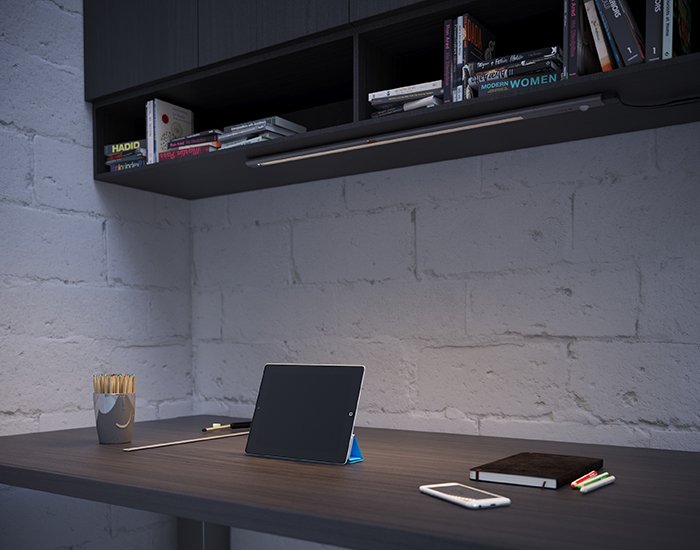

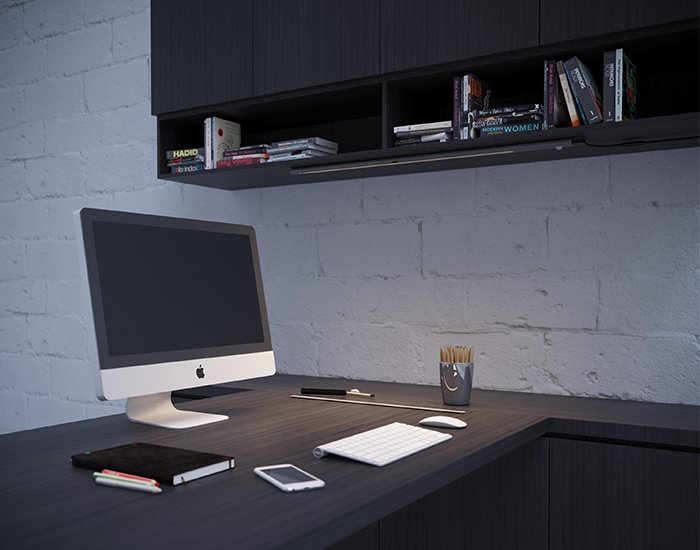

Workrite Ciglio 2 is available in three popular lengths that can be combined to create the ideal under cabinet lighting system. Ciglio 2 fixtures can be daisy chained utilizing Workrite’s jumper cable options to create the perfect solution for virtually any design configuration. The optional master switch and occupancy sensor can be added to any fixture for even more customized lighting control.

Ciglio 2 delivers more than 100 lumens per watt while consuming less power than traditional T12 florescent fixtures. Ciglio 2 is UL and Energy Star certified and comes with a 5 year warranty and can be relied upon to provide years of dependable, efficient lighting.

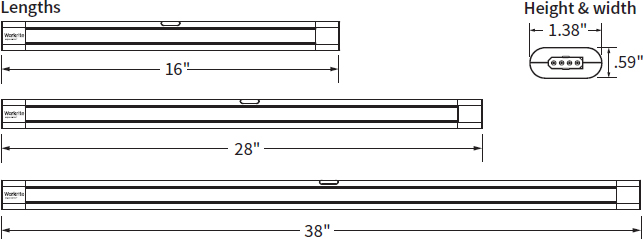

Technical Drawing

Technical Drawing for Workrite CIG2-UCL Ciglio 2 LED Under-Cabinet Light

Specifications

Ciglio 2, 16" Fixture

  • Foot candle power (@ 18"): 136 fc

  • Light output (lumens): 828 lm

  • Power consumption (wattage): 8.1 W

  • Lumens per watt: 102 lm/W

  • Photometric performance: See chart

  • Light color temperature (CCT): 3100 K

  • Color Rendering Index (CRI): 83 CRI

  • Fixture dimensions: W: 16" × H: 0.6" × D: 1.4"

  • Recommended installation: 24" cabinets

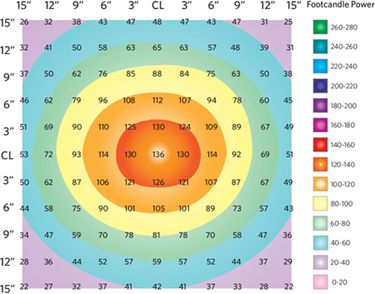

Ciglio 2, 16

Ciglio 2, 28" Fixture

  • Foot candle power (@ 18"): 222 fc

  • Light output (lumens): 1734 lm

  • Power consumption (wattage): 16.2 W

  • Lumens per watt: 107 lm/W

  • Photometric performance: See chart

  • Light color temperature (CCT): 3100 K

  • Color Rendering Index (CRI): 83 CRI

  • Fixture dimensions: W: 28" × H: 0.6" × D: 1.4"

  • Recommended installation: 32" cabinets

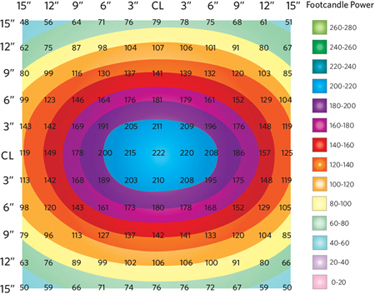

Ciglio 2, 28

Ciglio 2, 38" Fixture

  • Foot candle power (@ 18"): 268 fc

  • Light output (lumens): 2500 lm

  • Power consumption (wattage): 22.7 W

  • Lumens per watt: 110 lm/W

  • Photometric performance: See chart

  • Light color temperature (CCT): 3100 K

  • Color Rendering Index (CRI): 83 CRI

  • Fixture dimensions: W: 38" × H: 0.6" × D: 1.4"

  • Recommended installation: 48" cabinets

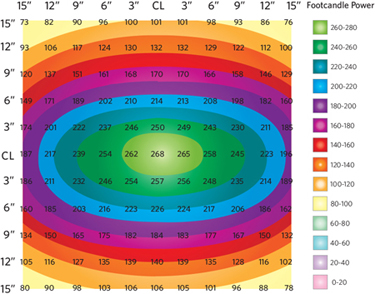

Ciglio 2, 38

Model CIG2-UCL-16-S, CIG2-UCL-28-S, CIG2-UCL-38-S
Manufacturer Workrite Ergonomics
Part Number CIG2-UCL-16-S, CIG2-UCL-28-S, CIG2-UCL-38-S
Color Silver
Length 16", 28" and 38"
Warranty 5 years
