$938.00

Innovative STX-22S Staxx 2 Over 2 Monitor Mount - Standard

Now includes Next Generation Tilter 8500. Please see Description for more details.

Product ID 18866
Innovative STX-22S Staxx 2 Over 2 Monitor Mount - Standard
Innovative STX-22S Staxx 2 Over 2 Monitor Mount - Standard
Innovative STX-22S Staxx 2 Over 2 Monitor Mount - Standard
Innovative STX-22S Staxx 2 Over 2 Monitor Mount - Standard
Innovative STX-22S Staxx 2 Over 2 Monitor Mount - Standard
Innovative STX-22S Staxx 2 Over 2 Monitor Mount - Standard

Description

Innovative's modular display system, Staxx, is a completely configurable pole based system that supports up to six monitors. Once your system is locked into place at the desired height using the new anti-rotation clip and collar, a single modular component can support anywhere from one tilter head to several different combinations of arms and up to six monitors.

Introducing Staxx - Modularity. Flexibility. Simplicity

  • Scalable Solution - Staxx is easy to install and reconfigure, more monitors can be added by simply adding more of the same parts.

  • Large Screen Sizes Welcome - Staxx is capable of mounting three monitors, up to 30" wide, side-by-side.

  • Independent Monitor Adjustment - Flexible extension arms allow you to position the monitors for your perfect viewing angle.

  • Small Footprint, Big Capabilities - Designed for modularity, Staxx can accommodate up to six monitors using a single mount.


Space

Flexibility

Ergonomics

Space

Ergonomics

Staxx is as sleek as it is functional. It supports up to six monitors to a solid mount that requires little desk space.

Workspace configurations are continually changing and evolving. Staxx makes it easy to adapt to your changing needs with little time or effort.

Staxx allows you to work and feel better throughout the day by making it easy to create your perfect viewing position. Independent monitor tilt, pivot, and rotation gives you control to work in comfort.

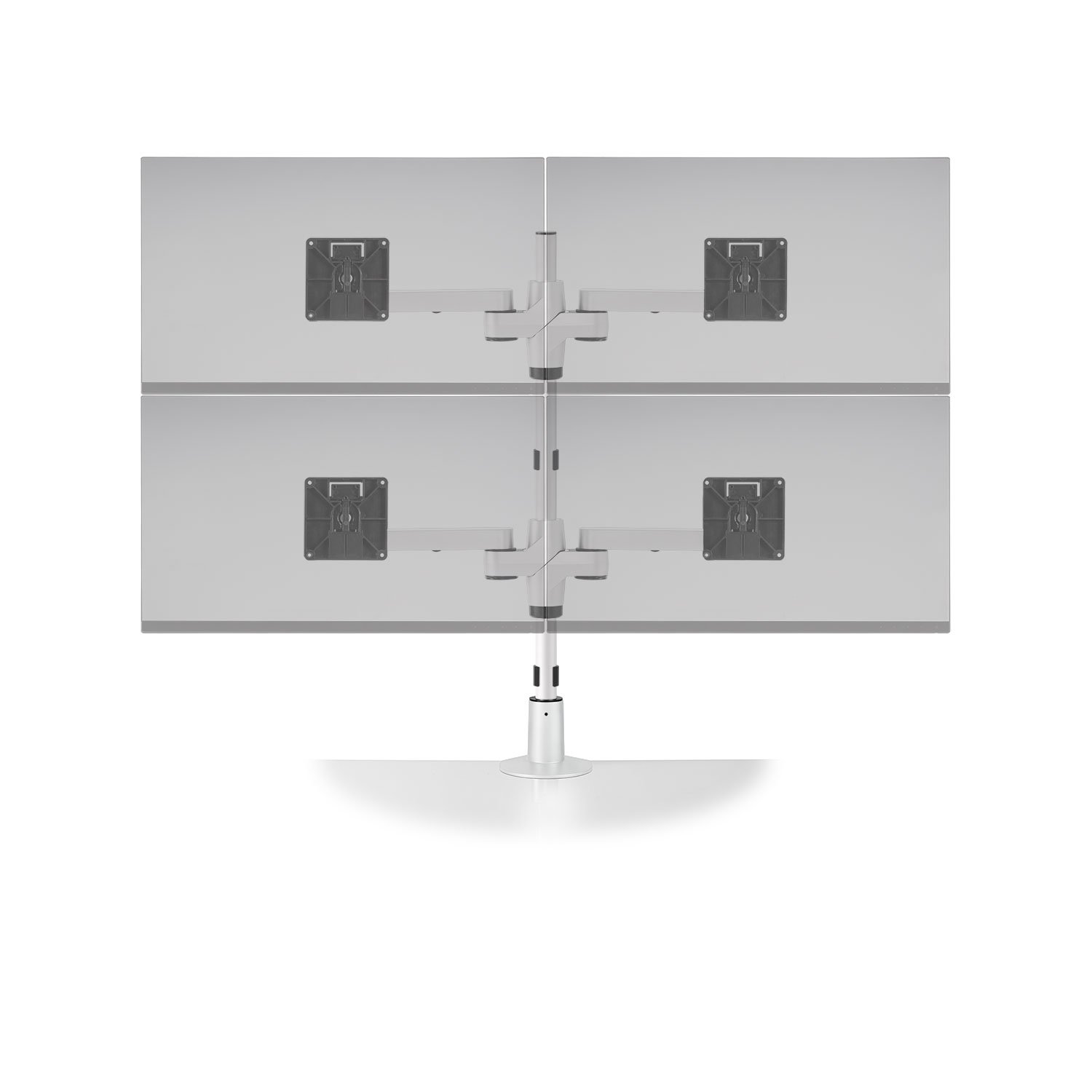

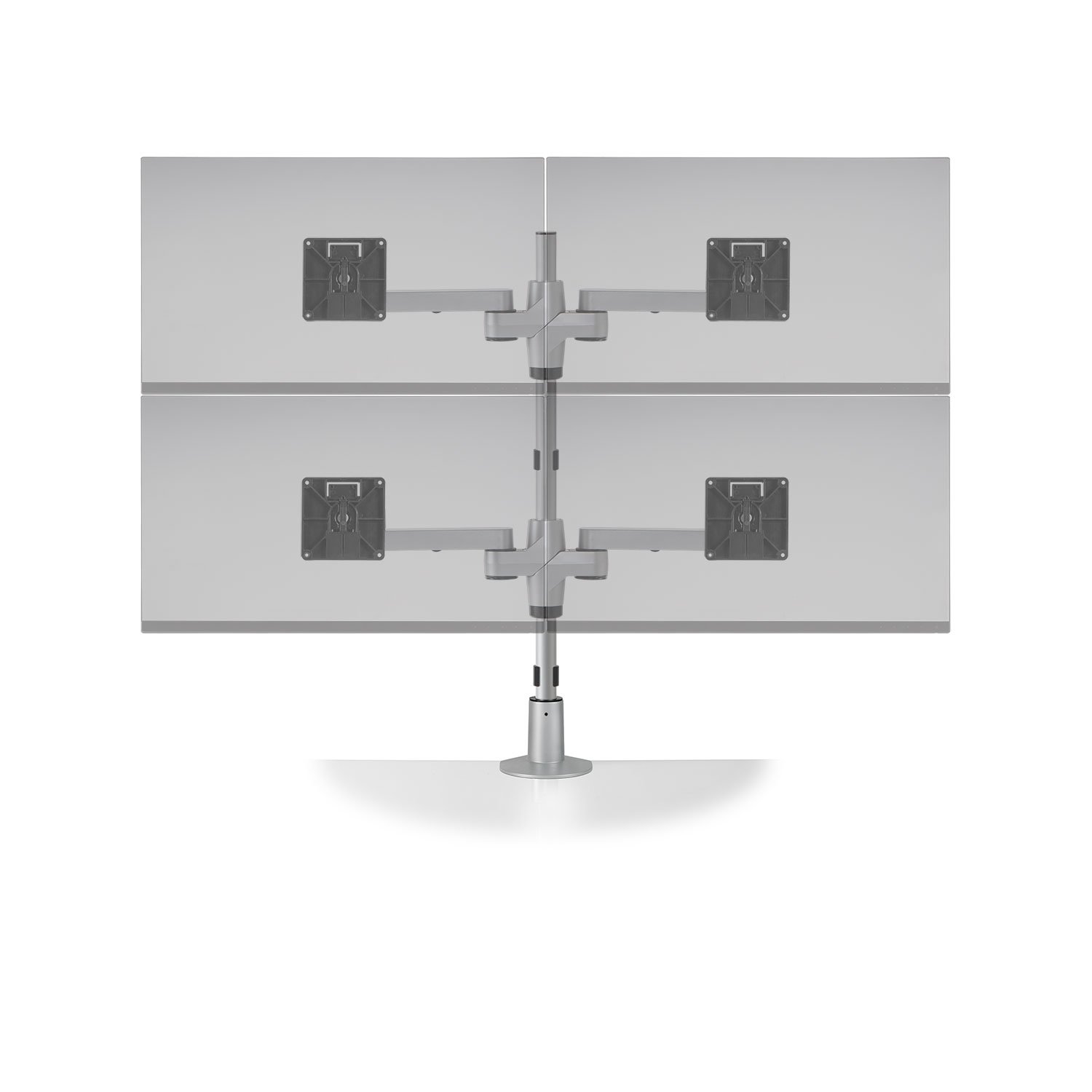

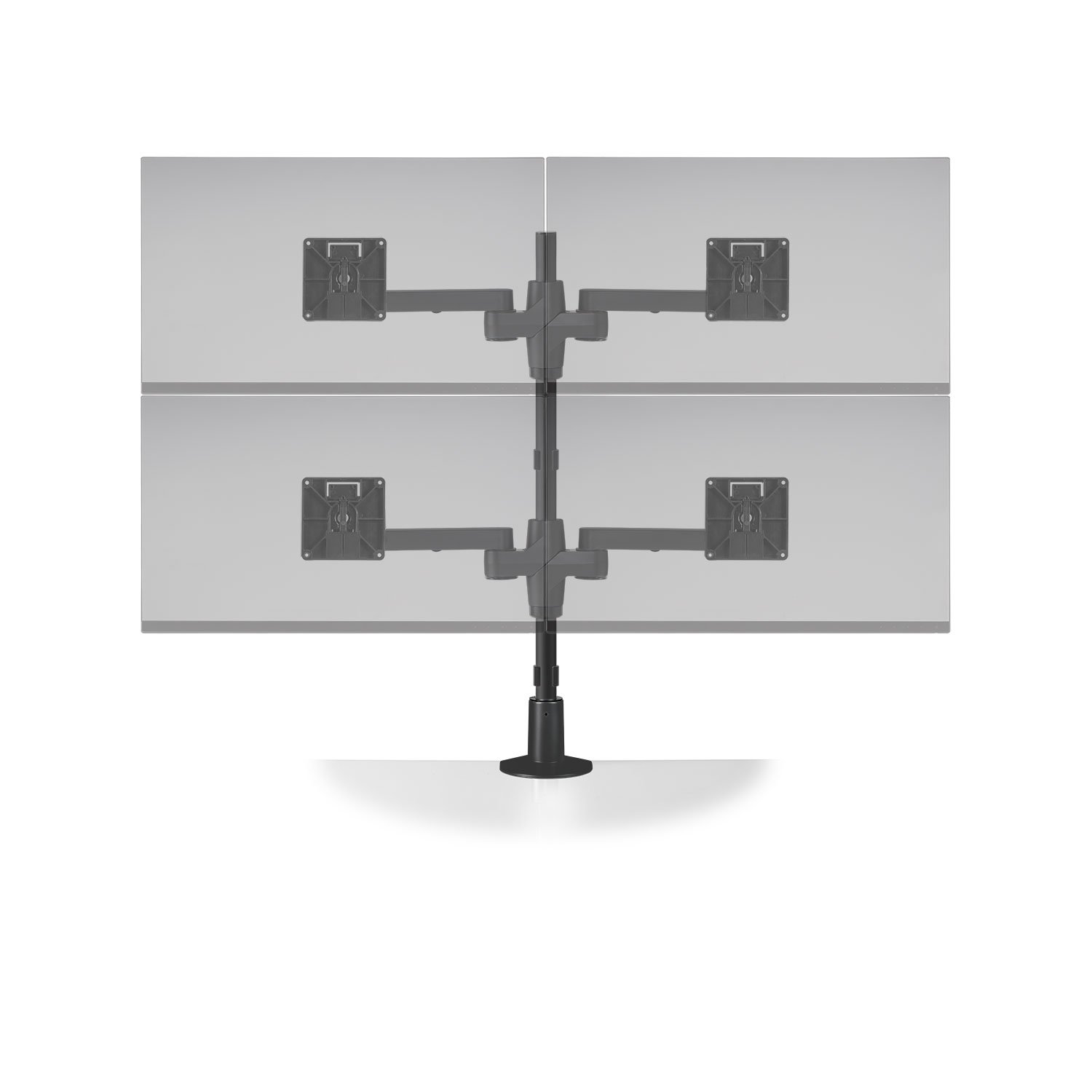

Innovative STX-22S multi-monitor stand mounts four monitors - two rows of two monitors side-by-side. The 2 over 2 features a space saving design with a clean aesthetic.

Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded two separate parts.

TilterA tilter is part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot, and tilt to the desired position. The standard tilter 8336 has been replaced with Next Gen Tilter 8500 in this monitor arm. The new tilter is slim, sleek, and easy to install and release, thanks to its quick-release bracket. It has a weight capacity of 30 lbs and is offered with both 75mm and 100 mm VESA patterns.

Innovative 8500 Quick Release Monitor Tilter
8500 Quick Release Monitor Tilter
Innovative 8336 Standard Monitor Tilter Head
8336 Standard Monitor Tilter

Mount – Mount is the part that attaches the monitor arm to the desk or wall. The new mount, is called Top Down mount, Innovative 8524. It functions as a clamp or grommet mount for desk installation and allows you to install the arm from above the desk without having to crawl underneath the desk. The FLEXmount, shown below, offers 6 mounting options including desk edge, wall mount, thru-desk, side bolt, grommet and reverse wall mount. Please see Mounting Options.

8524 Top Down Mount

Innovative 8524 Top Down Mount



Innovative FLEXmount

Technical Drawing

Technical Drawing for Innovative STX-22S Staxx 2 Over 2 Monitor Mount - Standard

Specifications

Color 104 - Vista Black, 124 - Silver and 248 - Flat White
Screen Size Up to 24"
Extension Range 26" side-by-side
Monitor Pivot Landscape / Portrait
Rotation Three rotation joints
Tilt 200 degrees
Mount Configurations Top Down Mount includes Desk Edge and Grommet mounts
VESA Compatibility 75mm, 100mm adapters included
Warranty 10 Years
Pole Height 28"
Weight Capacity Up to 15 lbs (6.8 kg) per monitor

Features

  • Each monitor can be positioned independently allowing for quick adjustment, pivot and placement

  • Friction control system provides smooth adjustment while adjusting the position of the arm

  • Integrated cable management allows cables to be tucked under the forearm extensions

  • Adjust height of monitors on pole in 1" increments

  • VESA-monitor compatible - 75mm, 100mm VESA adapters included

  • Provides 200 degrees of monitor tilt

  • 10 year warranty

Model STX-22S
Manufacturer Innovative LCD Arms
Part Number STX-22S
Color 104 - Vista Black, 124 - Silver and 248 - Flat White
Weight Capacity Up to 15 lbs per monitor
Monitor Size Up to 24
Pole Length 28
Tilt 200 degree
Mounting Options Top Down Mount
Number of Monitors 4 Monitors
Warranty 10 year
Extension 26
Pivot Landscape to Portrait
Mounting Pattern VESA 75mm, 100mm
