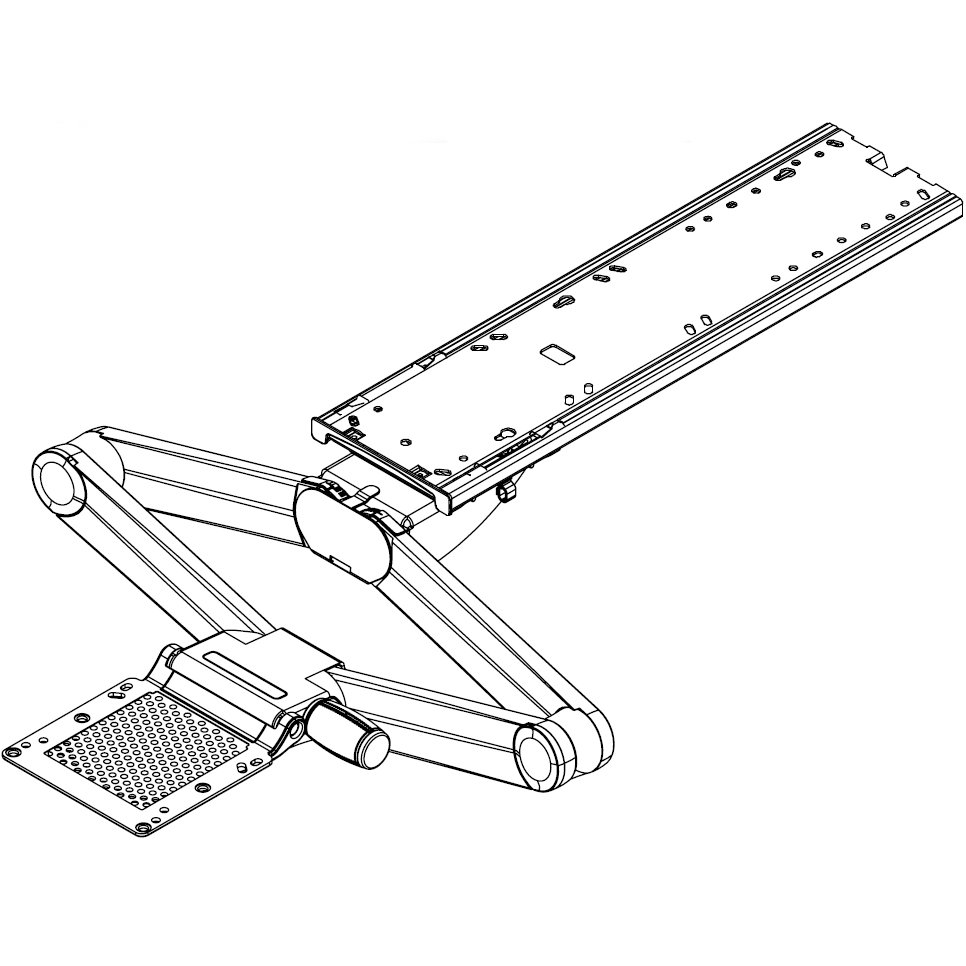

Workrite 4177-17N or 4177-22N Pinnacle S2S Arm
Features
Adjusts from 16" above to 6" below worksurface
Tilt range from -20° to +10°
Single knob for height and tilt adjustment
Low profile nylon track is 5.75" wide and available in 17" or 22" lengths
Available in black
17" track has 7.25" of platform storage
22" track has 10.25" of platform storage

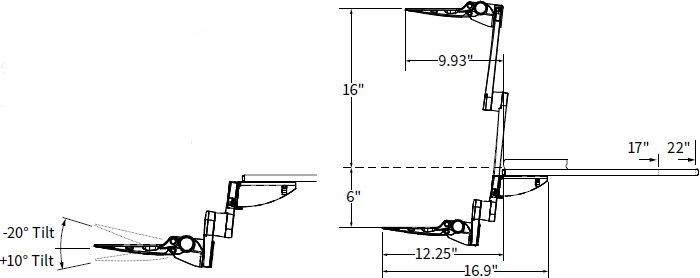

Technical Drawing
Model | 4177-17N, 4177-22N |
Manufacturer | Workrite Ergonomics |
Part Number | 4177-17N, 4177-22N |
Color | Black |
Adjustments | 16" above to 6" below worksurface |
Tilt | -20 to +10 degree |
Track Length | 17" and 22" |
Review this product
![]() |
by Beth S, California
Warranty
Workrite warrants to the original purchaser that the products it manufactures are free from defects in design, material and workmanship. Subject to the limitations below, Workrite warrants each product in this catalog to be free from defects in materials and workmanship for the life of the product in its original installation. With prompt written notice, Workrite will repair or replace, free of charge, any product, part or component which fails under normal use as a result of such defect.
Sierra HX Height Adjustable Workcenter components - Limited Lifetime
Electric components, motors, frames, brackets and feet.
All of the following exceptions to the limited lifetime warranty apply:
Fundamentals Electric Height Adjustable Workcenter components - 10 years
Electric components, motors, frames, brackets and feetEssentia Height Adjustable Workcenter components - 5 years
Electric components, motors, frames, brackets and feetLaminated worksurfaces and modesty panels - 5 years
Sierra HXL Crank Height Adjustable Workcenter components - 5 years
Including crank mechanismsCascade Height Adjustable Workcenter components - 5 years
Including counter-balance mechanismsLine of Sight electrical components and manual lifts - 5 years
Line of Sight frames and metal desk parts - 5 years
Monitor supports and mounts - 10 years
Solace Clamp-on sit-stand products - 5 years
Solace Desktop sit-stand products - 2 years
LED and florescent lighting fixtures - 5 years
Lighting transformers and fluorescent ballasts - 1 year
Tranquility Wool & PET Felt panels and mounts - 5 years
Tranquility Poly Panels - 2 years
Fabrics, modesty panels, custom products and special order items - 2 years
Mousing surfaces and Slide Guide - 1 year
