Innovative ELLA-1-CM Next-Generation Monitor Arm
Description
Ella, the next-generation monitor arm from Innovative, continues our
commitment to making ergonomics beautiful. Offering effortless movement
and sure-footed stability for monitors up to an astonishing 43″ screen
size, Ella’s groundbreaking design is only surpassed by its unparalleled
performance.
Unique Form, Unmistakable Performance - Ella’s elegant design has been
precisely engineered to deliver unparalleled performance across the
arm’s entire range of motion.
With support for a single monitor up to a 43-inch screen size or two
monitors with a 30-inch screen size, Ella allows you to work the way you
want without sacrificing style.
Instant Transformation - Ella installs entirely from above the desk
surface and requires very few adjustments during setup, greatly reducing
installation time compared to the competition.

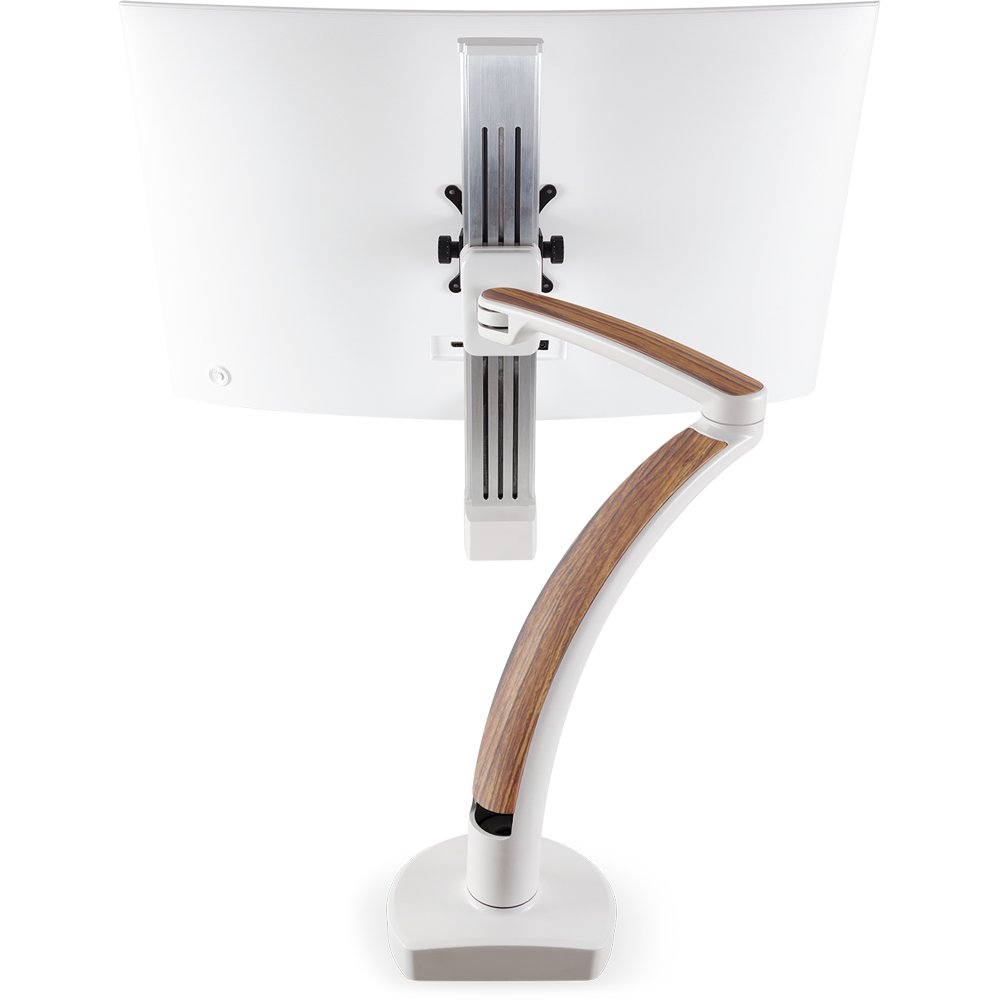

Aesthetic Adaptability - Whether you want to fit in or stand out, Ella
can match your style. Choose from finishes of white, silver or black and
complement with optional customizable inserts to create a look that fits
your workspace.
Technical Drawing
Technical Specifications
| Color | 104 - Vista Black, 124 - Silver and 248 - Flat White |
| Monitor Size | Up to 43" |
| Height Adjustment | 11.5" (29.2 cm) |
| Extension Range | 24.4" (61.9 cm) |
| Pivot | Landscape / Portrait |
| Rotation | 180° at base, 360° at upper joints |
| Mount Configurations | Desk Edge and Grommet |
| VESA Compatibility | 75 & 100mm, adapter included |
| Weight Capacity | 4 - 30 lbs (1.8 - 13.6 kg) |
| Warranty | 10 Years |
Features
Integrated handle enables one handed adjustment of monitor height and position
Mount installation is performed above desk for quick and easy set-up
Easily rotate flat panel monitor for portrait or landscape viewing
Built-in 180 degree rotation stop at the base of the arm prevents monitor arm from swinging into screens or walls
Optional customization options available to complement any workspace, contact your rep for details
Supports a single monitor with a screen size up to 43"
VESA-monitor compatible - 75mm & 100mm VESA adapter included
Mounts to desk edge or grommet
Product Options/Accessories
Dual Beam Conversion Kit - Innovative 8520
$134.99
| Model | ELLA-1-CM |
| Manufacturer | Innovative LCD Arms |
| Part Number | ELLA-1-CM |
| Color | 104 - Vista Black, 124 - Silver and 248 - Flat White |
| Rotation | At base 180 degree, at upper joints 360 degree |
| Mounting Pattern | VESA 75mm and 100mm |
| Mounting Options | Desk Edge and Grommet |
| Weight Capacity | 4 - 30 lbs (1.8 - 13.6 kg) |
| Height Adjustment | 11.5" (29.2 cm) |
| Extension | 24.4" (61.9 cm) |
| Monitor Size | Up to 43" |
| Pivot | Landscape/Portrait |
| Warranty | 10 Years |
Review this product
|
by Ben, Mountain View
I like the handle and vertical adjustment
My desk is against the wall. This monitor arm has a built in stopper, so the arm won't hit the wall when it's being moved. I have an Ergotron LX that's destroying the wall from being placed against it and it's much better in that one regard though worse overall
Cons:
It does not move well from side-to-side at all, which is a deal breaker for me. I'm requesting a return as a result. The bottom-most swivel next to the desk grommet just doesn't work well at all. It's so difficult to move that I thought that piece didn't move. I went back and watched a video promoting the product and saw it moving and figured out it does indeed move, but I need to pull extremely hard
It leans slightly when out to the side. Normally this wouldn't be noticeable, but since it has the height adjustment slider behind it, you can tell that piece is not quite vertical. Maybe I'm a bit OCD, but I think this would probably drive me crazy.
Comment from ErgoDirect.com
We are very sorry this unit didn’t seem to meet all your needs. At ErgoDirect, we have a team of ergonomic specialists with in-depth knowledge of ergonomic equipment who can help you find the best options for your unique workspace. Please give us a call at 1-888-456-ERGO (3746) and we will be happy to assist you in finding the right solution.
