Humanscale M/Connect 2 USB 3.0 Docking Station

Humanscale M/Connect 2 USB 3.0 Docking Station

This product has been discontinued.

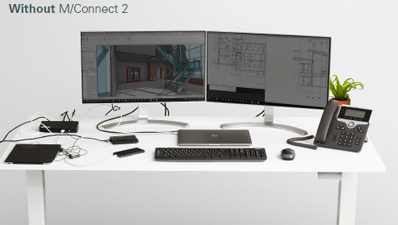

Without M/Connect 2

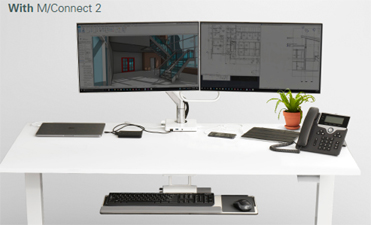

With M/Connect 2

Description

Introducing M/Connect 2 - a new USB docking station that provides power delivery to USB-C and Thunderbolt notebooks while being backwards compatible to USB 3.0 notebooks. This offers a universal solution during the transition from USB 3.0. M/Connect 2 can be integrated into any Humanscale Monitor Arm or be independently mounted to the desk without an arm.

M/Connect 2's innovative split dock technology allows all cables to be connected under the desk and off the work surface, which limits accessibility to connections the user doesn't require. An easily accessible hub on the desk provides the user with immediate access to data, charging and audio ports.

By increasing usable workspace, providing greater accessibility to required ports, eliminating cable clutter and offering complete monitor adjustability, M/Connect 2 vastly improves the comfort, health and performance of today's computer user.

M/Connect 2 is a next-generation USB docking station that keeps all your devices connected through a single hub of power and data. With a unique split dock design, M/Connect 2 provides multiple connection options beneath the desk while keeping all essential ports above the work surface and conveniently within reach.

Specifications

Desktop Dock USB ports USB-C full feature with PD charging via two model options, 60W or 100W
USB ports - data and charging 2x USB-A 3.1 (5V,0.9A max)
USB ports - charging only, no data communication USB-C (5V, 3.0A max)
USB-A (5V, 2.4A max)
Microphone/Headphone 3.5mm combo jack
Underdesk Dock
Without HDCP enabled 5k
5120x2880 p60
4k
3840x2160 p60
4096x2160 p60
2k
2560x1600 p60
2560x1440 p60
1k
FHD
Video 1 output
DisplayPort ++ (Dual mode DP1.2)

Supports (1) 5K
monitor
Yes Yes Yes
Video 2 output
DisplayPort++ (Dual mode DP1.2)
Yes Yes Yes
Network Gigabit Ethernet
Transfer rate 10Mbit/100Mbit/1Gbit
USB Ports 2x USB-A 3.1 (5V, 0.9A max)
1x USB-A 3.1 with charging (5V, 2.4A)
Operating System
  • Windows 7/7Pro (32bit/64bit)

  • Windows 8.1/8.1Pro (32bit/64bit)

  • Windows 10 (32bit/64bit)

  • Apple OS X Version 10.8.3 and above

  • (Mountain Lion v10.8, Mavericks v10.9, Yosemite v10.10, El Capitan v10.11 (ver2.5)

  • Sierra mac OS10.12(ver2.6), High Sierra v10.13, Mojave v10.14, Catalina v10.15)

Environment Temperature - Operating 0° C to 40° C
Temperature - non-Operating -20° C to 60° C
Relative Humidity - Operating 10% to 80% (non-condensing 5 to 35° C)
Relative Humidity - non-Operating 5% to 90% (non-condensing -20 to 60° C)
Altitude - Operating Sea level to 5000m
Altitude - non-Operating 5000m
Designed to meet RoHS and WEEE directives
Dimensions Desktop Dock 150mm (w) x 150mm (d) x 22.5mm (h)
Underdesk Dock 191mm (w) x 90mm (d) x 23mm (h)
Weight 2.1 kg (dock and hub)
AC Adapter Input Voltage 90 - 264V (47-63Hz)
Output Voltage 60W Model - 20V (+/- 5%), 7.5A, 150W
100W Model - 20V (+/- 5%), 9A, 180W
Efficiency Meets US DoE VI
Accessories Included Included 1x USB-C full feature cable - 1.0m in long with USB-C to USB-A adapter attached, and cable retainer

Features

  • Universal Solution - Compatibility with USB-C, USB 3.0 and Thunderbolt notebooks provides a universal solution that is perfect during the transition from USB 3.0

  • Versatile Charging - M/Connect 2 features (7) USB ports for data and charging, including (2) 2.4A Type A high-speed charging ports and (1) 3A Type-C high-speed charging port

  • Enhanced Screen Resolution - Supports 4K video resolution for up to 2 monitors or 1 monitor at 5K

  • Universal USB docking station with USB-A and USB-C connectivity (Thunderbolt compatible)

  • Backwards compatible to USB-A

  • Optional 60W or 100W power delivery options

  • Supports 4K video resolution for up to 2 monitors or 1 monitor at 5k

  • Features a total of 11 ports for power and data. Desktop Hub - 2 USB -A data ports, 1 USB -C charging port, 1 USB-A charging port, 1 3.5mm Audio/ microphone.
    Underdesk Dock - 3 USB-A data ports (1, high charging port), 2 Display Ports, 1 Ethernet Jack

  • Features two charging ports dedicated exclusively to delivering power, alleviating potential security risks

  • Various mounting options available for easy application to any worksurface

  • Color Options - Polished Aluminum with White Trim, Silver with Gray Trim, Black with Black Trim

  • Kensington Security Lock Slot available for both the hub and dock for additional security and theft protection

  • Limited 3-year warranty

Design Story

For more than 35 years, Humanscale has been creating solutions that enhance the computing experience. Our products are designed to make the workstation a more effective tool for the use of today’s technology. With M/Connect 2, we have applied our expertise and experience to the USB docking station. Our split dock design, with or without a monitor arm, eliminates desktop cable clutter, increases usable workspace and enhances user performance.

Option 1: Color

Polished aluminum with white trim and cables

Polished aluminum with white trim and cables

Silver with gray trim and cables

Silver with gray trim and cables

Black with black trim and cables

Black with black trim and cables

Frequently Asked Questions

No FAQs available for this product. Have a question? Ask us!

Product Information
  • Model M/Connect 2
  • Manufacturer Humanscale
  • Part Number M/Connect 2
  • Color Polished Aluminum with White Trim, Silver with Gray Trim, Black with Black Trim
  • Power 60W or 100W
  • Warranty Limited 3 year
