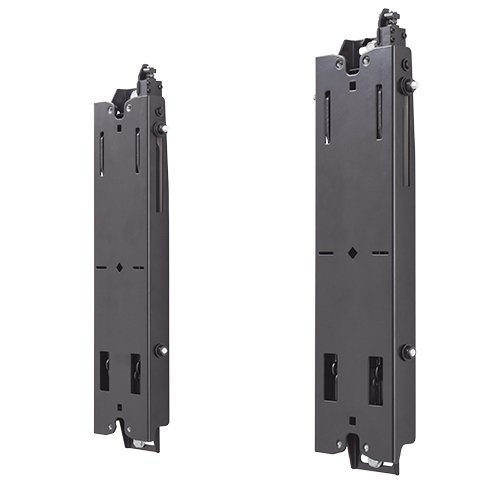

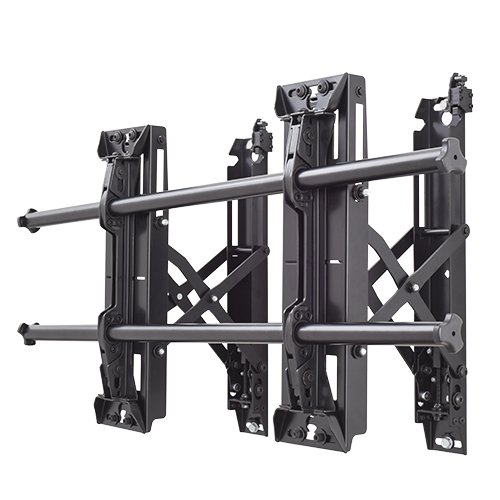

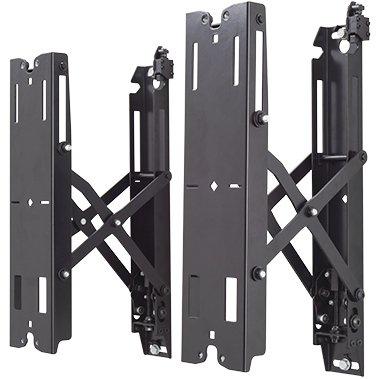

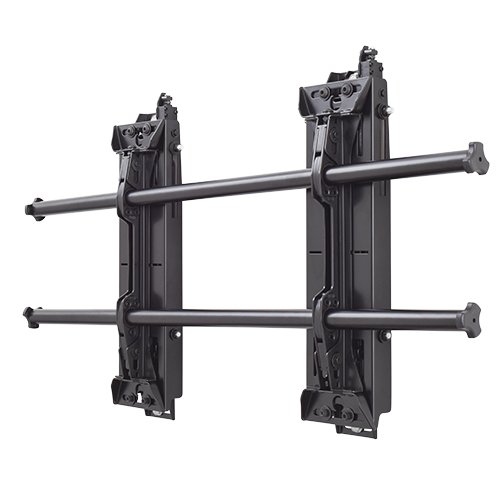

Chief FCAV1U Fusion Pull Out Accessory
Product ID 19126
Description
Chief FCAV1U Fusion pull-out accessory can be used with any of the
updated Fusion microadjustable fixed and tilt wall mounts, including
portrait models, to add up to 11.54" (293 mm) extension from the wall.
Compatible models are MSM1U, LSM1U, XSM1U, MTM1U, LTM1U, XTM1U and
MTMP1U.

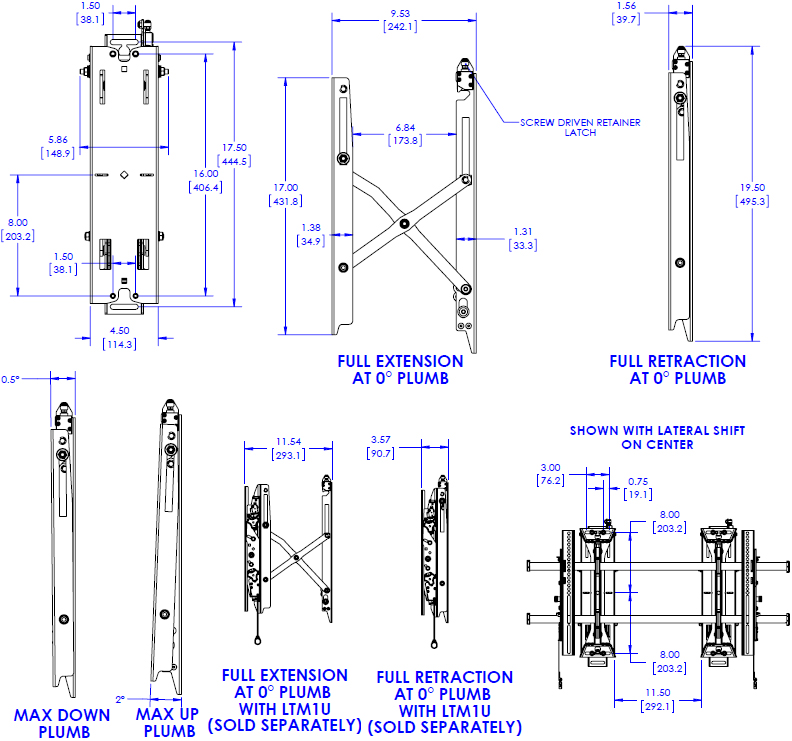

Technical Drawing
Technical Specifications
| Certifications | UL Listed |
| Color | Black |
| Extension | 11.54" (293 mm) |
| Overall Dimensions (H x W x D) | 19.5 x 5.86 x 1.56" (495 x 149 x 40 mm) |
| Shipping Weight | 18.24 lbs (8.27 kg) |
| Solution Type | Universal |
| Weight Capacity | 150 lbs (68 kg) |
| Orientation | Landscape, Portrait |
Features
Up to 11.54" (293 mm) extension when combined with Fusion mount - great for recessed applications
Same depth from wall as previous Fusion pull-out mounts
Plumb adjust to keep display in line with the wall
Latch to secure mount in home position
Compatible with Fusion tilt mounts and X-Large Fusion for larger mounting patterns (up to 150 lbs / 68 kg capacity)
Product Options/Accessories
| Model | FCAV1U |
| Manufacturer | Chief Mounts |
| Part Number | FCAV1U |
| Color | Black |
| Extension | 11.54" (293 mm) |
| Overall Dimensions | 19.5 x 5.86 x 1.56" (495 x 149 x 40 mm) |
| Shipping Weight | 18.24 lbs (8.27 kg) |
| Orientation | Landscape, Portrait |
| Weight Capacity | 150 lbs (68 kg) |
