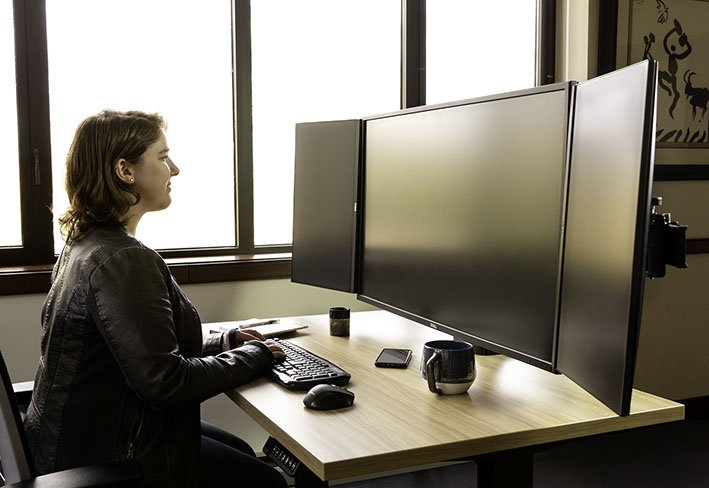

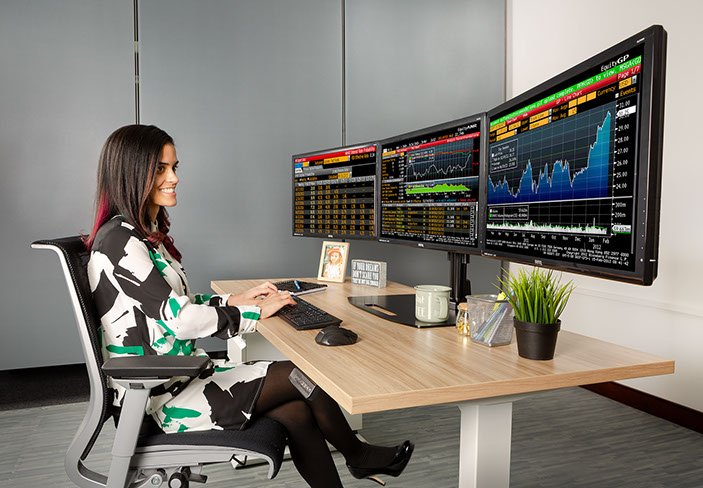

Ergotech Triple Monitor Horizontal Desk Stand - 130-D16-B03
Description
The Ergotech 130 Series makes mounting widescreen desktop displays a snap. Designed with ease of use in mind, our patented quick release pivots, independent height adjustment, and tool-less assembly will save you time and energy.
Made of steel and aluminum construction, choose from a variety of configurations for a perfect fitting multi-monitor array, even if you are using different monitor makes and sizes. Start enjoying space savings, increased productivity, and greater ergonomic comfort with your 130 Series today.
Technical Drawing
Technical Specifications
| Color | Black |
| Weight Capacity | Up to 40 lbs on center pivot and up to 20 lbs per monitor on beam pivots |
| Monitor Size | Up to 30" |
| VESA Compatibility | 75x75 and 100x100 |
| Maximum Height | 17.6" |
| Tilt | +20º / -10º |
| Rotation | 180º |
| Adjustment | Independent wing movement |
| Mounting Options | Desk Stand |
| Warranty | Lifetime |
Features
Includes (1) 16" pole, (1) 20.5" wide x 15" deep standard base, (1) Standard 75/100mm VESA pivot, (2) height adjustable 75/100 VESA pivot and (2) 28" horizontal beams
Available in Black
Product Options/Accessories
Frequently Asked Questions
Yes, the clamp can be purchased separately or at a later time if you are interested. You would just swap the bases out on the unit. The clamp mount is a separate accessory that is not displayed on our website. However please call us at 888-456-3746 if you need the clamp mount.
| Model | 130-D16-B03 |
| Manufacturer | Ergotech |
| Part Number | 130-D16-B03 |
| UPC | 854843007289 |
| Color | Black |
| Pole Length | 16" |
| Base Dimensions | 20.5" wide x 15" deep |
| Mounting Pattern | VESA 75X75 and 100X100 |
| Monitor Size | Up to 30" |
| Weight Capacity | Up to 40 lbs on center pivot, up to 20 lbs per monitor on beam pivots |
| Maximum height | 17.6 in |
| Tilt | +20 degree / -10 degree |
| Rotation | 180 degree |
| Mounting Options | Clamp mount or Desk stand |
| Warranty | Lifetime |
