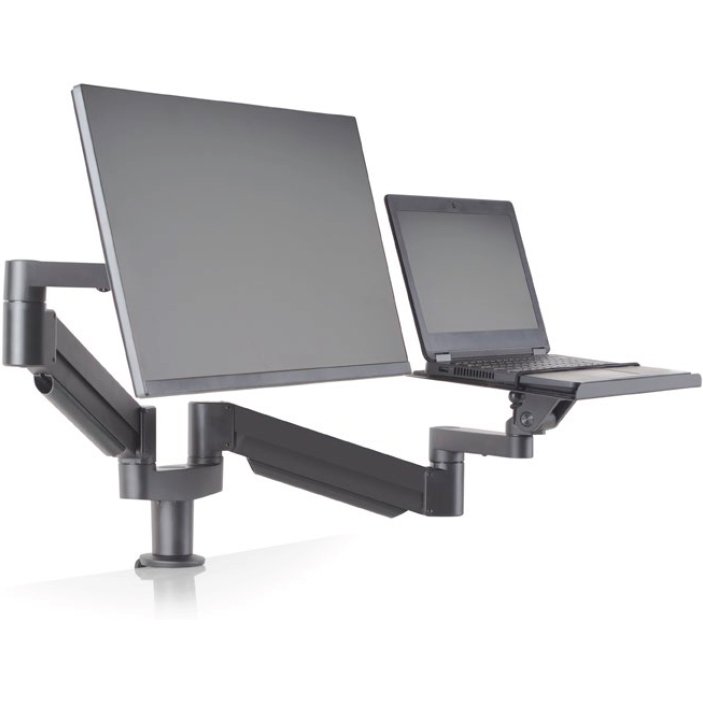

Ergotech 7Flex Laptop for PC and iMac - 7FLEX-LAPTOP-104
Description
Ergotech 7Flex LCD monitor arm suspends your flat panel monitor above
the work surface. Move your monitor precisely where you need it, and
simply move it out of the way when not in use. The unique slim profile
design folds up flat to occupy just 3.5" of space. All single 7Flex
models include FlexMount: a 6-in-1 mounting interface that includes
clamp, thru-desk, wall, grommet, side bolt and reverse wall.
7Flex is compatible with all VESA displays, including the 2012-present
iMac.

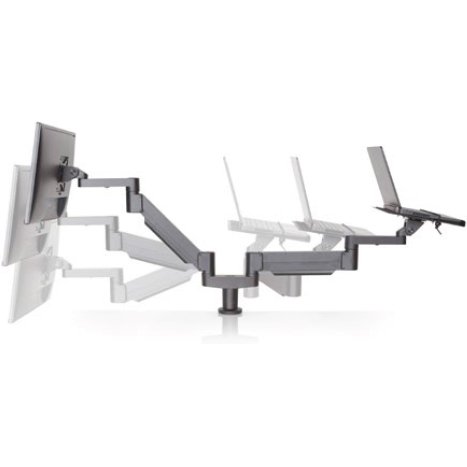

Now you can mount a monitor and a laptop with our best-selling 7Flex articulating arms from one point on your desk. Effortlessly reposition monitor and laptop independently. You will free up desk space, even as you work in greater ergonomic comfort. The dual mount can be clamped to desk edge or grommet, or bolted through the desk.

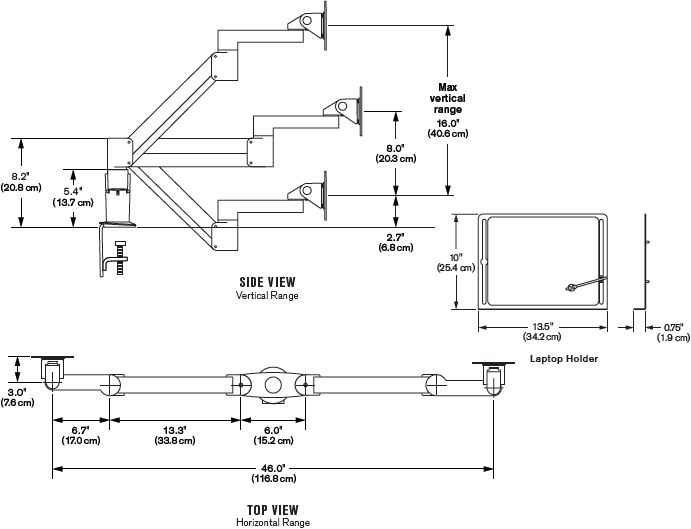

Technical Drawing
Technical Specifications
| Color | Black |
| Vertical Range | +/- 8.0" (20.3 cm) from horizontal |
| Horizontal Range, per arm | 24.0" (61.0 cm) |
| Rotation | 360 degrees at three joints |
| Monitor Tilt | 200 degrees |
| Monitor Pivot | Landscape to portrait |
| Monitor Compatibility | VESA 75mm and 100mm |
| Cable Management | Cables are clipped beneath arm |
| Mounting Options | Desk Edge, Grommet, Thru-Desk, Side Bolt |
| Monitor Weight Capacity | 5 - 17 lbs (2.3 - 7.7 kg) |
| Laptop Weight Capacity | 3 - 13.5 lbs (1.3 - 6.1 kg) |
| Monitor Size | Max 32" |
| Pan | 180 degrees |
| Max Desk Thickness | 2.5" |
| Warranty | 10 years |
Product Options/Accessories
| Model | 7FLEX-LAPTOP-104 |
| Manufacturer | Ergotech |
| Part Number | 7FLEX-LAPTOP-104 |
| UPC | 854843007432 |
| Color | Black |
| Vertical Range | +/- 8.0 |
| Horizontal Range | 24.0 |
| Rotation | At three joints 360 degree |
| Tilt | 200 degree |
| Pivot | Landscape to portrait |
| Mounting Pattern | VESA 75mm, 100mm |
| Height Adjustment | 16 |
| Extension | 24 |
| Pan | 180 degree |
| Maximum Desk Thickness | 2.5 |
| Mounting Options | Desk Edge, Grommet, Thru-Desk and Side Bolt |
| Monitor Weight | 5 - 17 lbs (2.3 - 7.7 kg) |
| Laptop Weight | 3 - 13.5 lbs (1.3 - 6.1 kg) |
| Warranty | 10 years |
| Maximum Monitor Size | 32 |
| Monitor Placement | Side-by-Side |
