$716.00

Innovative Dual Ella Articulating Monitor Mount ELLA-2-CM

Product ID 19242
Innovative Dual Ella Articulating Monitor Mount ELLA-2-CM

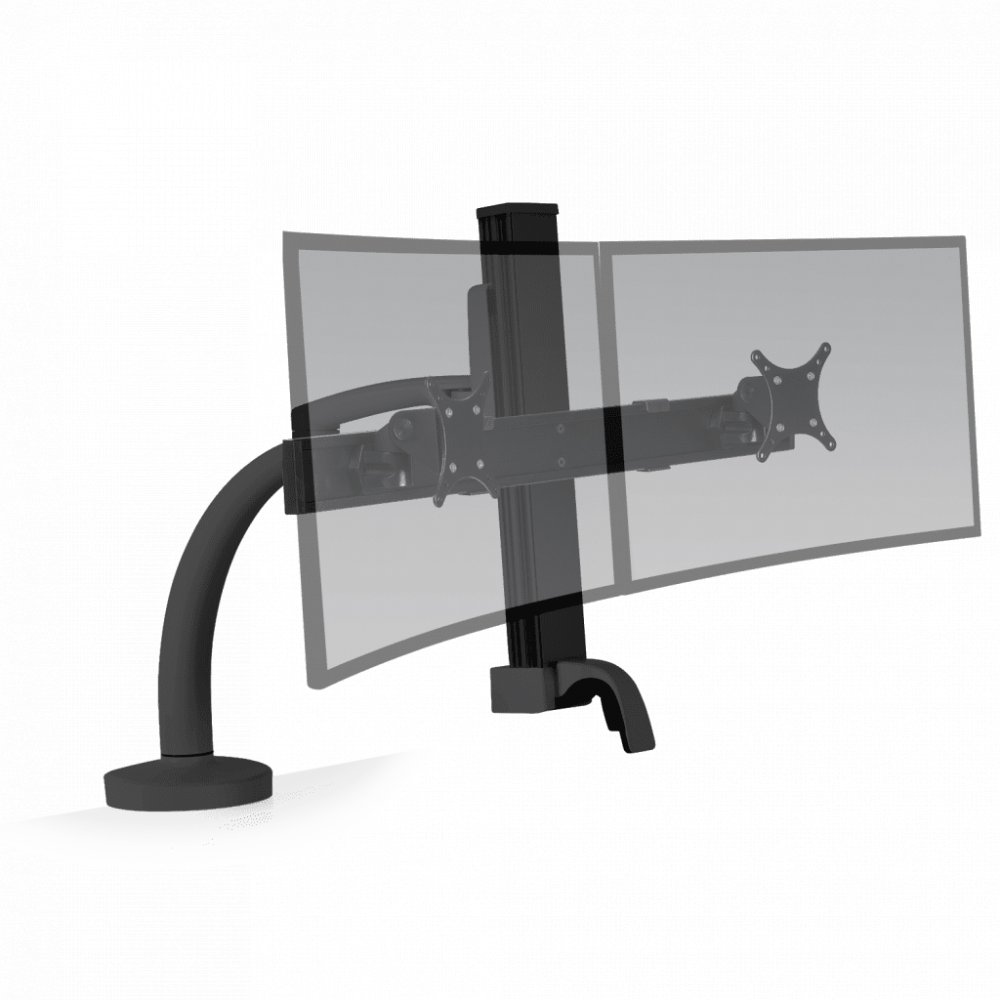

Black color

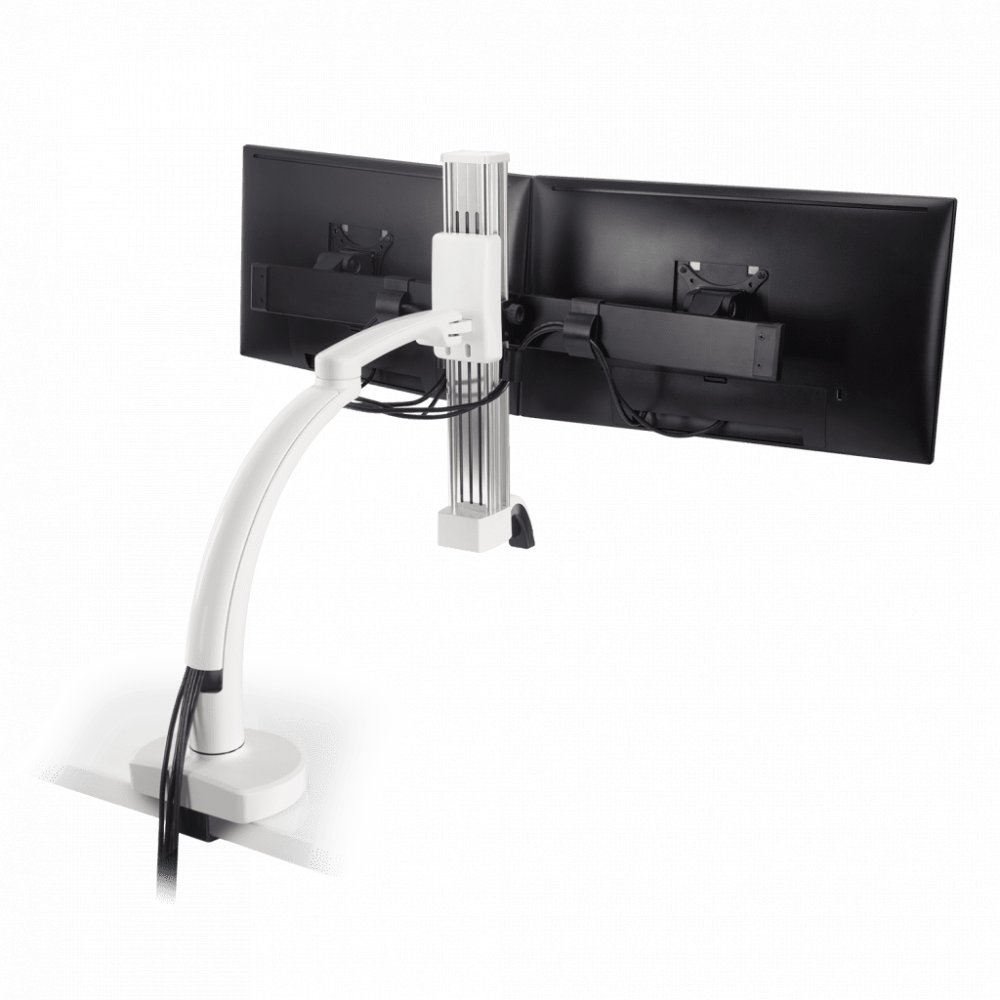

Cable management

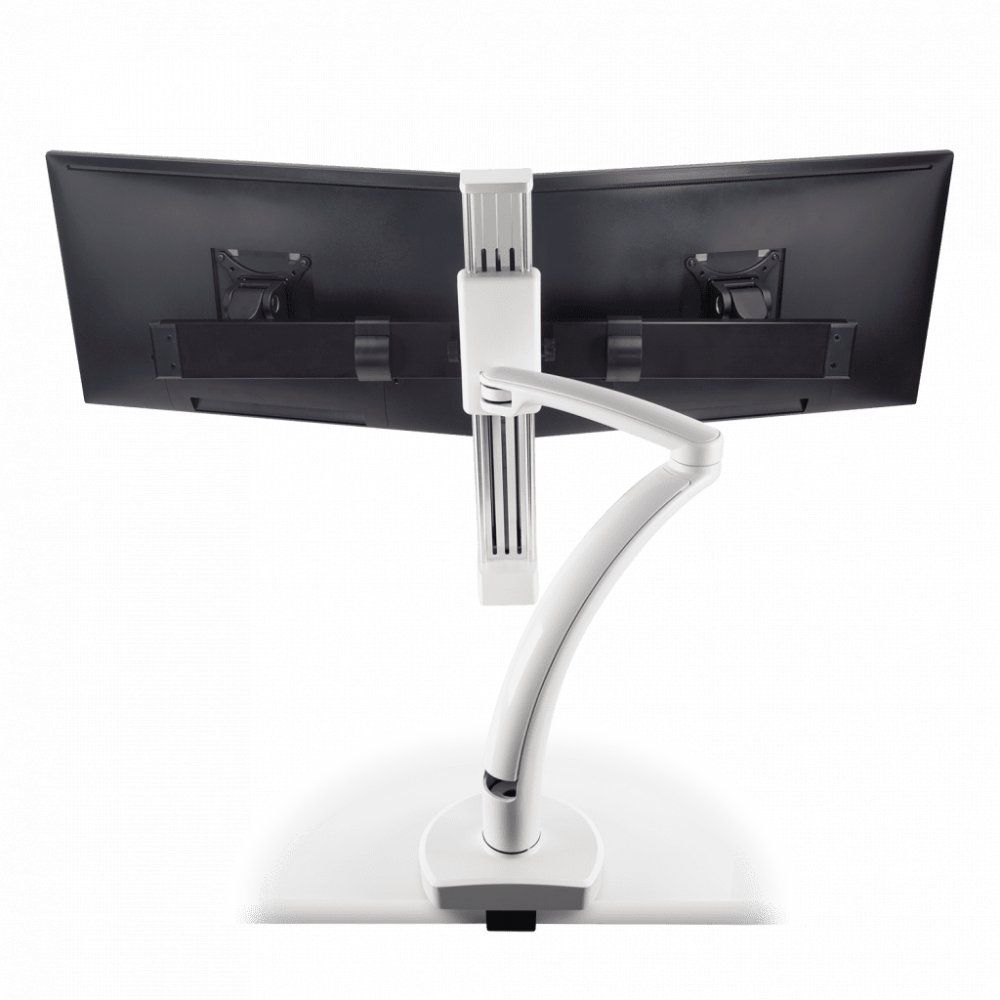

Back view

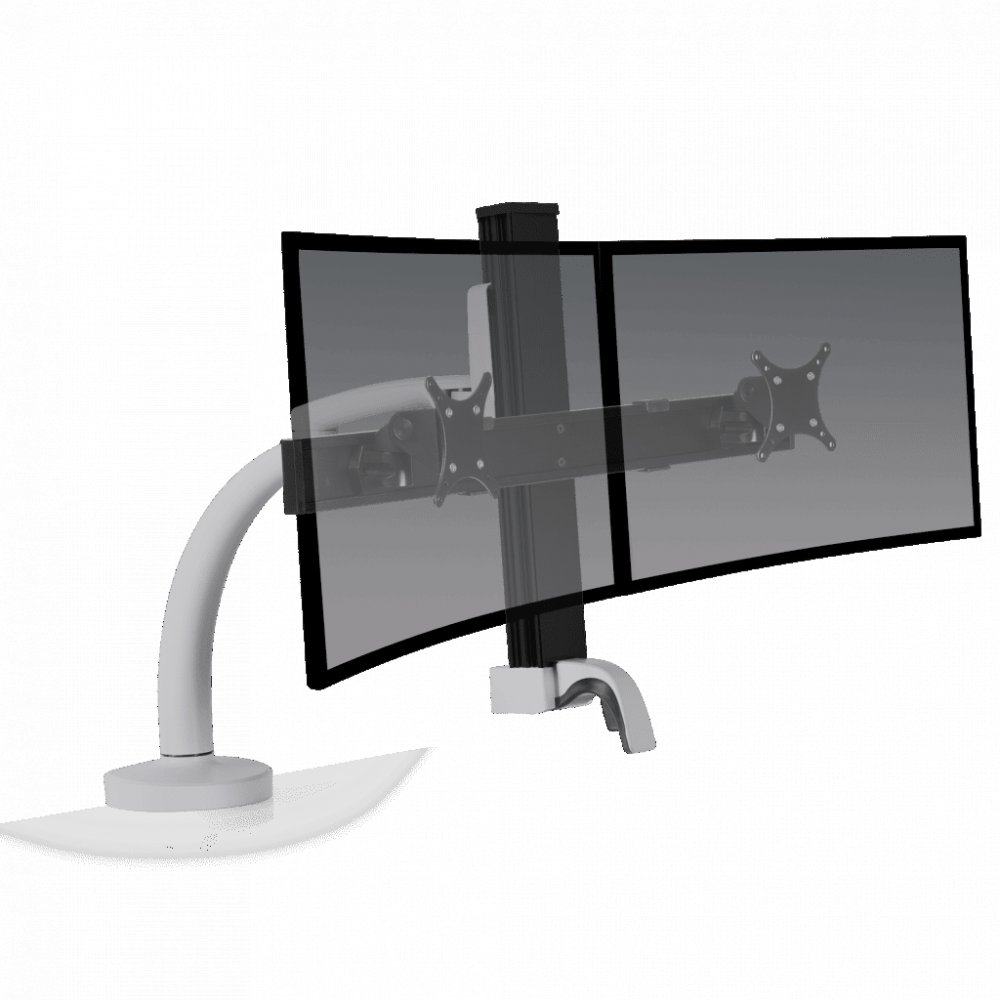

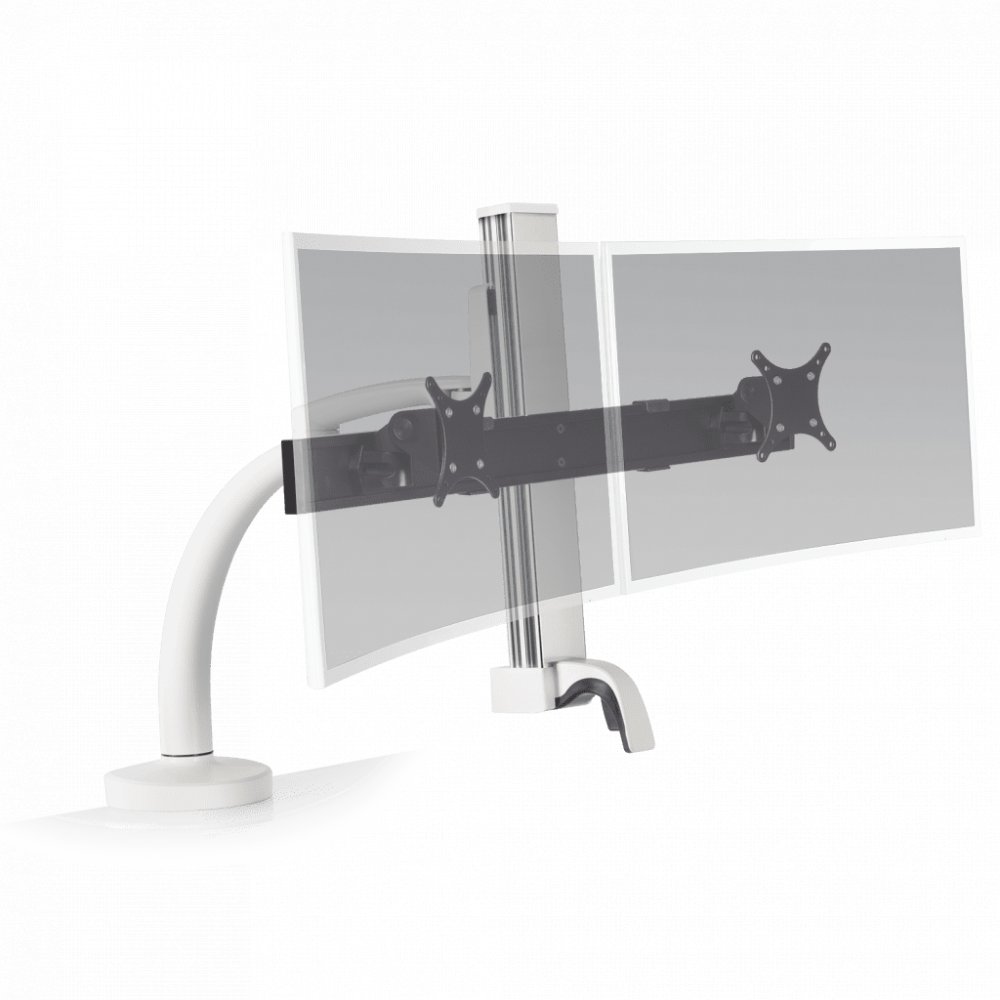

White color
Innovative Dual Ella Articulating Monitor Mount ELLA-2-CM
Black color
Cable management
Back view
White color

Description

Innovative Ella, the next-generation monitor arm from Innovative, continues our commitment to making ergonomics beautiful. Featuring our dual monitor beam, Dual Ella allows you to work the way you want without sacrificing style.

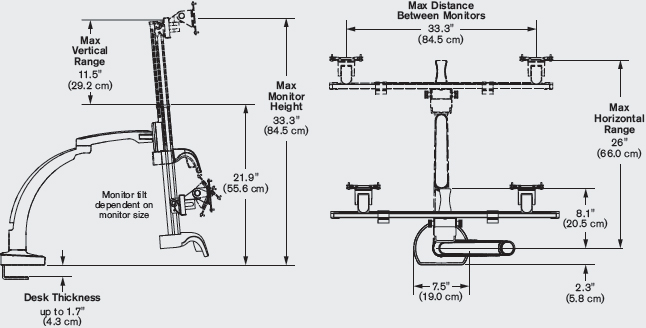

Technical Drawing

Technical Drawing for Innovative Dual Ella Articulating Monitor Mount ELLA-2-CM

Specifications

Color 104 - Vista Black, 124 - Silver and 248 - Flat White
Monitor Size Up to 30"
Height Adjustment 11.5"
Extension Range 24.4"
Pivot Landscape/Portrait
Rotation 180° at base, 360° at upper joints
Mount Configurations Desk Edge, Grommet
VESA Compatibility 75 & 100mm, quick-release adapters included
Weight Capacity 2 - 15 lbs (0.9 - 6.8 kg) per monitor
Warranty 10 years

Features

  • Integrated handle enables one handed adjustment of monitor height and position

  • Mount installation is performed above desk for quick and easy set-up

  • Built-in 180 degree rotation stop at the base of the arm prevents monitor arm from swinging into screens or walls

  • Optional customization options available to complement any workspace, contact your rep for details

Model ELLA-2-CM
Manufacturer Innovative LCD Arms
Part Number ELLA-2-CM
Color 104 - Vista Black, 124 - Silver and 248 - Flat White
Monitor Size Up to 30
Height Adjustment 11.5
Extension 24.4
Pivot Landscape / Portrait
Rotation At base 180 degree, at upper joints 360 degree
Mounting Options Desk Edge, Grommet
Mounting Pattern 75mm & 100mm VESA adapters included
Weight Capacity 2 - 15 lb (0.9 - 6.8 kg) per monitor
Warranty 10 Years
Maximum Monitor Size 30
Monitor Placement Side-by-Side
