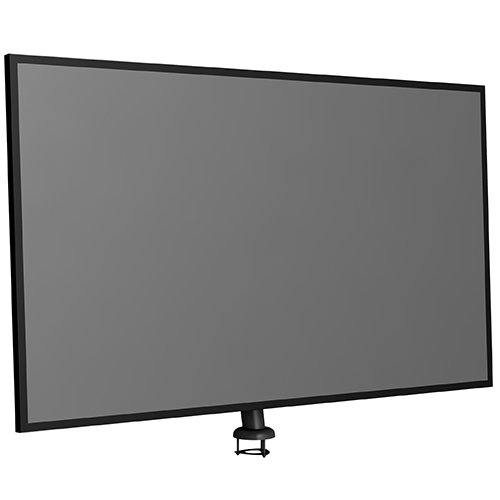

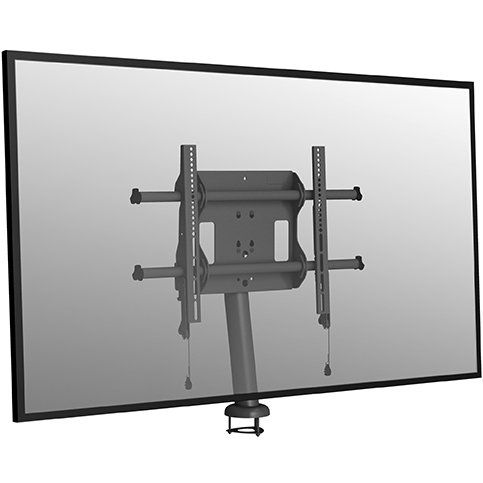

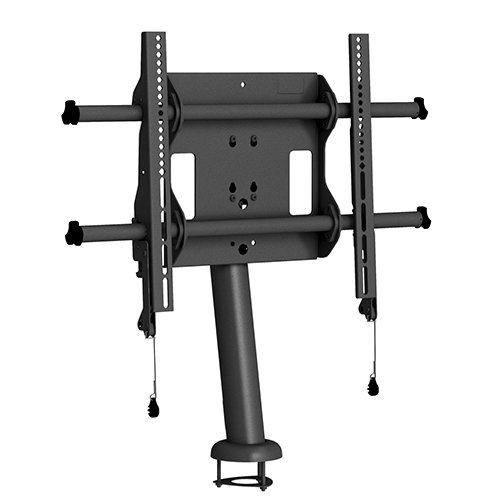

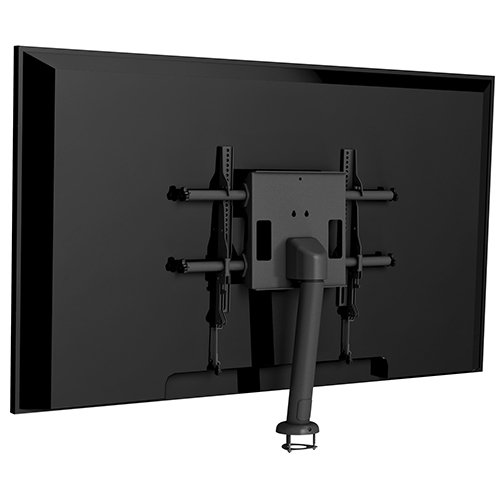

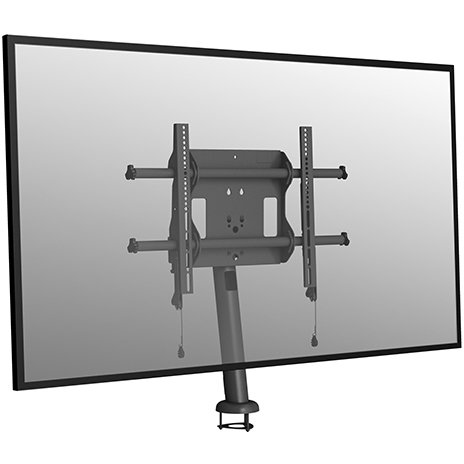

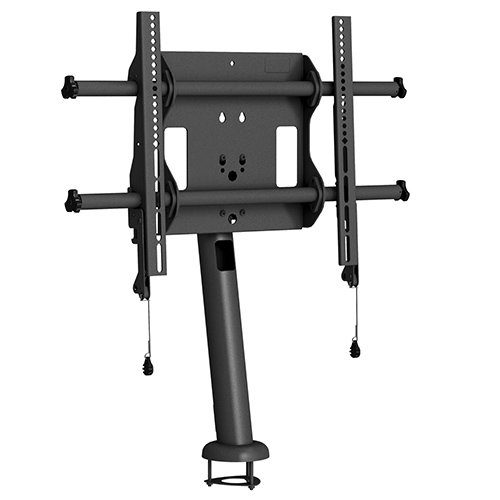

Chief LDB1U Large Fusion Flat Panel Bolt-Down Table Stand

Product ID 19329


Chief LDB1U fusion table stand securely supports displays on tables with swivel and cable management features.

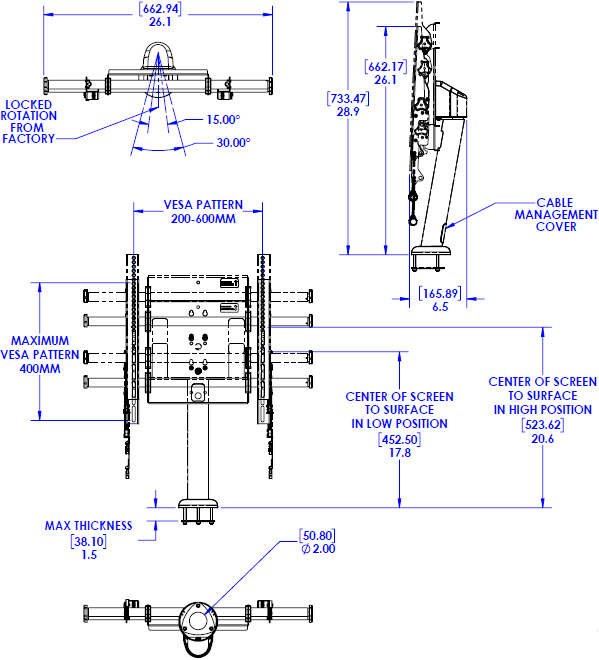

Technical Drawing

Technical Drawing for Chief LDB1U Large Fusion Flat Panel Bolt-Down Table Stand


Certifications TUV NRTL Approved, TUV Certified
Color Black
Mounting Pattern Compatibility (Universal Versions) 100 x 100 mm - 642 x 400 mm
Pivot Numerical Value +/- 15° or 30°
TV Height Range 22" - 38"
Typical Screen Sizes 46" - 70"
Weight Capacity 125 lbs
Orientation Landscape


  • Smooth swivel

  • Prevent screen from colliding with walls or furniture by setting rotation limits at +/- 15° or 30°

  • Easily route and conceal cables through a wide, in-column channel for a clean finish

  • Built-in universal interface fits most screens 46" - 70", and provides everything needed for installation in just one SKU

  • Mounting pattern range: VESA 100 x 100 mm - 642 x 400 mm

  • Ideal for hospitality applications

  • Set screw to prevent lateral slide off-center

Model LDB1U
Manufacturer Chief Mounts
Part Number LDB1U
Color Black
Mounting Pattern VESA 100 x 100 mm - 642 x 400 mm
Pivot +/- 15 degree or 30 degree
TV Height Range 22" - 38"
Monitor Size 46" - 70"
Weight Capacity 125 lbs
Orientation Landscape

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)


With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
