$96.00

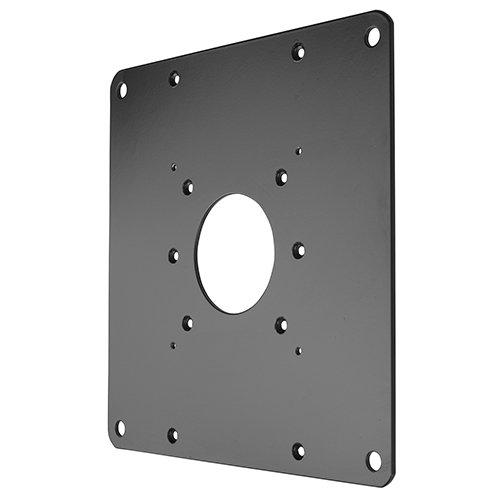

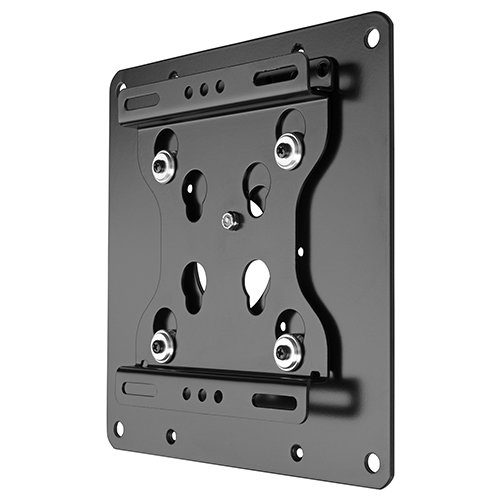

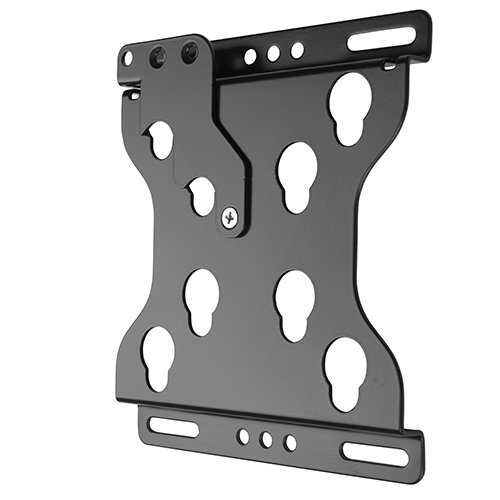

Chief FSR1U Small Flat Panel Fixed Wall Display Mount

Product ID 19358
Chief FSR1U Small Flat Panel Fixed Wall Display Mount
Chief FSR1U Small Flat Panel Fixed Wall Display Mount
Chief FSR1U Small Flat Panel Fixed Wall Display Mount
Chief FSR1U Small Flat Panel Fixed Wall Display Mount
Chief FSR1U Small Flat Panel Fixed Wall Display Mount
Chief FSR1U Small Flat Panel Fixed Wall Display Mount

Description

Chief FSR1U is a perfect complement to any small flat panel digital signage or hospitality application, providing fast and flexible installation, ultra-low-profile installation depth and security for use in public spaces.

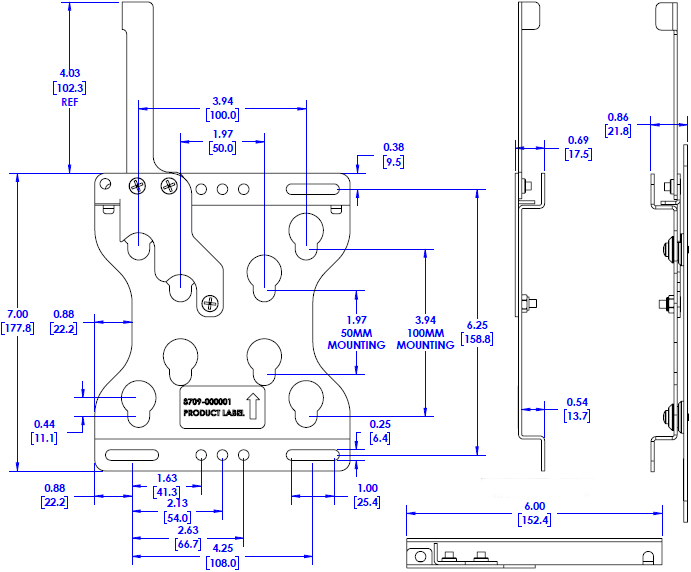

Technical Drawing

Technical Drawing for Chief FSR1U Small Flat Panel Fixed Wall Display Mount

Specifications

Color Black
Drywall x
Lateral Shift 0.5" (12.7mm)
Minimum Depth 0.86" (22 mm)
Mounting Pattern Compatibility (Universal Versions) 50 x 50mm, 75 x 75mm, 100 x 100mm, 200 x 100mm, 200 x 200mm
Shipping Weight 3 lbs (1.36 kg)
Solution Type Universal
Typical Screen Sizes 10 - 40"
Wall Stud Compatibility In Single Stud
Weight Capacity 45 lbs (20.4 kg)
Orientation Landscape, Portrait

Features

  • Ultra-low-profile installation depth - only 0.86" (22 mm)

  • Portrait or landscape mountable

  • Chief's exclusive Q-Latch Mounting System saves installation time

  • Latch Extender provided for easy latch access with larger displays

  • Supports wide range of VESA patterns for 10" to 32" + displays

Model FSR1U
Manufacturer Chief Mounts
Part Number FSR1U
Color Black
Lateral Shift 0.5" (12.7mm)
Minimum Depth 0.86" (22 mm)
Mounting Pattern 50 x 50mm, 75 x 75mm, 100 x 100mm, 200 x 100mm, 200 x 200mm
Shipping Weight 3 lbs (1.36 kg)
Monitor Size 10 - 40"
Wall Stud Single Stud
Weight Capacity 45 lbs (20.4 kg)
Orientation Landscape, Portrait
Mounting Options Fixed Wall

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)

Warranty

With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
