$204.00

Chief KRA231 K1C and K2C Column Mounted Extreme Tilt Head Accessory

Product ID 19434
Chief KRA231 K1C and K2C Column Mounted Extreme Tilt Head Accessory

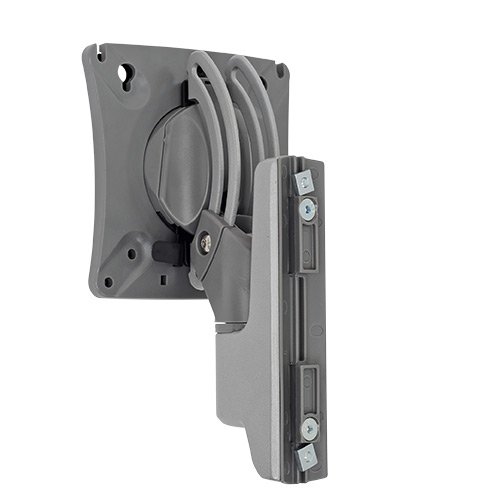

Chief KRA231S Column Mounted Extreme Tilt Head in silver

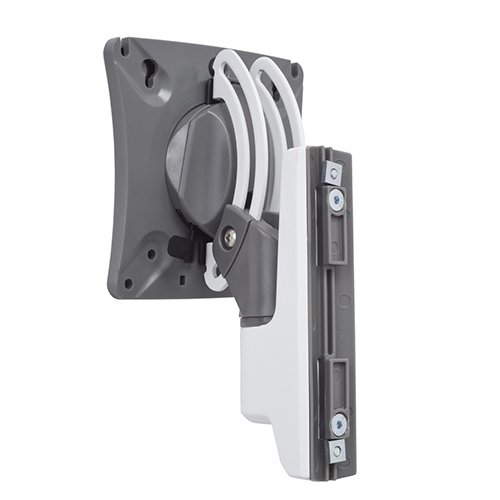

Chief KRA231W Column Mounted Extreme Tilt Head in white
Inused image of Chief KRA231B Column Mounted Extreme Tilt Head
Application of Chief KRA231B Column Mounted Extreme Tilt Head
Inused image of Chief KRA231S Column Mounted Extreme Tilt Head
Application of Chief KRA231S Column Mounted Extreme Tilt Head
Chief KRA231 K1C and K2C Column Mounted Extreme Tilt Head Accessory
Chief KRA231S Column Mounted Extreme Tilt Head in silver
Chief KRA231W Column Mounted Extreme Tilt Head in white
Inused image of Chief KRA231B Column Mounted Extreme Tilt Head
Application of Chief KRA231B Column Mounted Extreme Tilt Head
Inused image of Chief KRA231S Column Mounted Extreme Tilt Head
Application of Chief KRA231S Column Mounted Extreme Tilt Head

Description

Chief KRA231 provides a 3rd Extreme Tilt Head for use on any Kontour K1C or K2C mount, for easy upgrade from Dual to Triple Monitor configuration. Easily mounts to the column without impacting the existing installation in any way.

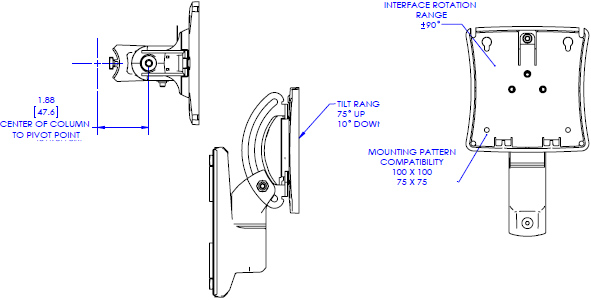

Technical Drawing

Technical Drawing for Chief KRA231 K1C and K2C Column Mounted Extreme Tilt Head Accessory

Specifications

Color Black, Silver and White
Manual Height Adjustment 7.0" (177.8 mm)
Mounting Pattern Compatibility (Universal Versions) VESA 75 x 75mm, 100 x 100mm
Shipping Weight 5 lbs (2.27 kg)
Tilt +75°, -10°
Typical Screen Sizes 10 - 30" (254 - 762 mm) diagonals
Weight Capacity Up to 25 lbs (11.3 kg) per monitor
Orientation Landscape, Portrait

Features

  • KRA231 provides column-mounted Extreme Tilt Head Assembly, for easy upgrades from single- to dual- or triple-monitor installations without impacting the existing installation, future-proofing your investment

  • Enhanced patented Centris Extreme Tilt provides +75°, -10° of effortless tilt, for optimal viewing comfort whether sitting or standing

  • 7" (178 mm) of manual height adjustment on the column

  • With high levels of recycled content & a highly-recyclable design, Chief Kontour monitor arms may contribute to valuable LEED-CI, -NC, and -EB credits

  • Kontour K1 products are all TAA-compliant

Product Options/Accessories

Model KRA231B, KRA231S, KRA231W
Manufacturer Chief Mounts
Part Number KRA231B, KRA231S, KRA231W
Color Black, Silver and White
Manual Height Adjustment 7.0" (177.8 mm)
Mounting Pattern 75 x 75mm, 100 x 100mm
Shipping Weight 5 lbs (2.27 kg)
Tilt +75 degree, -10 degree
Monitor Size 10 - 30" (254 - 762 mm) diagonals
Weight Capacity Up to 25 lbs (11.3 kg) per monitor
Orientation Landscape, Portrait
