Anchorpad 31177SLIM Laptop Security Mount Slim

Product ID 19476

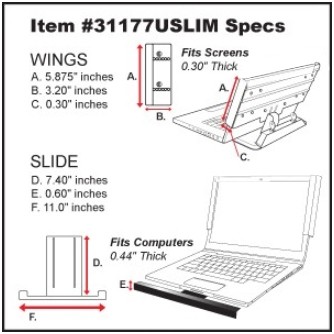

Please note: 31177 USL is the Ultra-Slim Version of the laptop security stand. It has a really slim slide bracket and wing brackets. If the keyboard is any thicker than about 0.4 inches, the slide will not work. If the screen is any thicker than about 0.30 inches, the wings will not work. this version of the laptop security stand was designed for small laptops with removeable screens (capable of conversion into a tablet). Therefore, the wing brackets have flanges/caps at the top, which prevent thieves from pulling the tablet portion out the top of the laptop security stand. If the opened laptop is any taller than about 9.6 inches, the wings will not work.

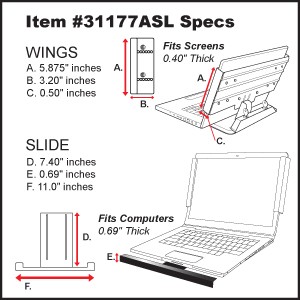

31177 ASL and DSL are compatible with laptops with the following dimensions:

  • Width Range: 11.53" up to 17.96"
  • Depth Range: 7.6" up to 13.03"
  • Max Keyboard Height: Up to 0.71"
  • Max Display/Screen Thickness: Up to 0.42"


New improvements have increased the security level of the Laptop Security Stand. The new adjustable front slide bracket adds security and prevents lifting of the keyboard. The wing brackets are also adjustable for a perfect fit. For laptops with a thin (monitor & keyboard) profile.


  • Protects laptops from falls, drops and theft

  • Use on table tops, carts, wall mounts

  • Fits most laptops from 9" to 16 1/2" wide

  • Simple to install with no tools required

  • Very high security solution at modest cost

  • Computer easily snaps in and out for authorized user

  • Laptop monitor remains open – monitor tilts back at 120°

  • Easily removed by authorized user with no damage to attaching surface

  • Direct Adhesive Security delivers up to 20,000 lbs anchoring strength


  • A – 1 11-in x 10-in base plate with high-strength adhesive foam (2 weldnuts glued in place)

  • B – 1 back plate (paddle bracket and wing brackets attached)

  • C – 1 paddle bracket with screw at the bottom

  • D – 1 set wing brackets (1 left, 1 right)

  • E – 1 slide bracket (attached to base plate with 4 screws)

  • F – 1 lockblock

  • G – 2 keys

  • H – 2 wafer locks

  • I – 2 weldnuts

  • J – 8 bump-on’s (4 assembled on back plate plus 4 in hardware bag)

  • K – 6 screws (2 qty to assemble the paddle bracket to the back plate and 4 qty to assemble the wing brackets to the back plate)

  • L – 4 screws to assemble the slide bracket to the base plate

  • M – 1 self-removal kit

  • N – 3 Allen wrenches (1 for paddle bracket, 1 for wing brackets, 1 for slide bracket

Product Options/Accessories

Model 31177SLIM
Manufacturer AnchorPad
Part Number 31177SLIM
Compatible Most laptops from 9" to 16-1/2" wide
