Loctek R2 Full Motion TV Bracket for Curved and Flat Screen TVs (32"-70")
This product has been discontinued.
Features
Perfect fit for 32"-70" flat screen or curved screen TVs
Articulating six arm design is attractive, secure and fully functional
Mount is made of durable cold rolled steel
Loctek’s R2 mount is UL certified, which includes safety testing for load capacity 4x greater than the 99 lbs stated for consumer use
Extend, tilt and swivel your TV between 3.3” and 18.8” from the wall
Tilting angle between -2° to +12° reduces glare and improves view of TV screen
Accommodates installation errors within ±3°
Textured injection mold plastic casing adds decorative finish to the wall plating and arms
Cable management system tidies up cables and wires
Easy Installation
Supports standard VESA sizes from 200×100 to 600×400

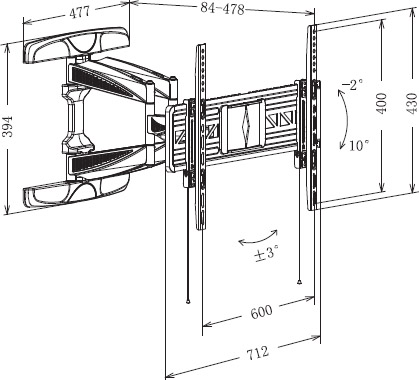

Technical Drawing
Technical Specifications
| Mount Type | Full Motion, Curved |
| Fit TV Size | 32"-70" |
| Loading Capacity | 99 lbs |
| Tilt Angle | -2° to +12° |
| Swivel Angle | -45~45° |
| Distance to the Wall | 3.3-22.13" |
| VESA | 200×100 to 600×400 |
Frequently Asked Questions
No FAQs available for this product. Have a question? Ask us!
Product Information
- Model R2
- Manufacturer Loctek / Flexispot
- Part Number R2
- TV Size 32"-70"
- Weight Capacity 99 lbs
- Tilt -2 to +12 degree
- Swivel -45~45 degree
- Distance From Wall 3.3-22.13"
- VESA 200×100 to 600×400
