$486.00

Workrite JIBE-2SDA-CCG Dual Articulating Monitor Arm

Product ID 19601
HIGHLIGHTS

Highlights

  • Dual articulating arm
  • Supports two monitors 5-20 lbs each
  • Maximum monitor height: 20.27"
  • Articulation range: 12.60"
  • Forward reach: 22.67"
  • Stowed depth: 3.55"
  • Monitor Tilt: +/- 40 degrees
  • Monitor Pivot: +/- 90 degrees
  • Monitor Rotation: +/- 90 degrees
  • VESA: Standard 75 & 100 mm
  • Includes c-clamp and grommet mount options
  • Warranty: 10 years
  • GREENGUARD certified
  • Optional USB kit

Description

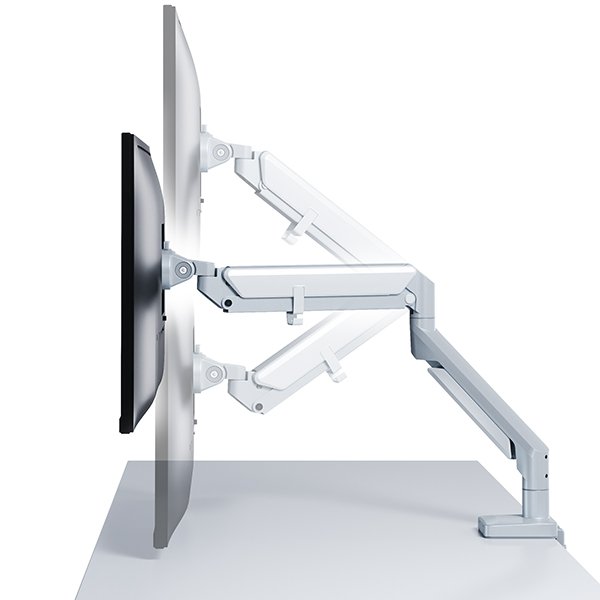

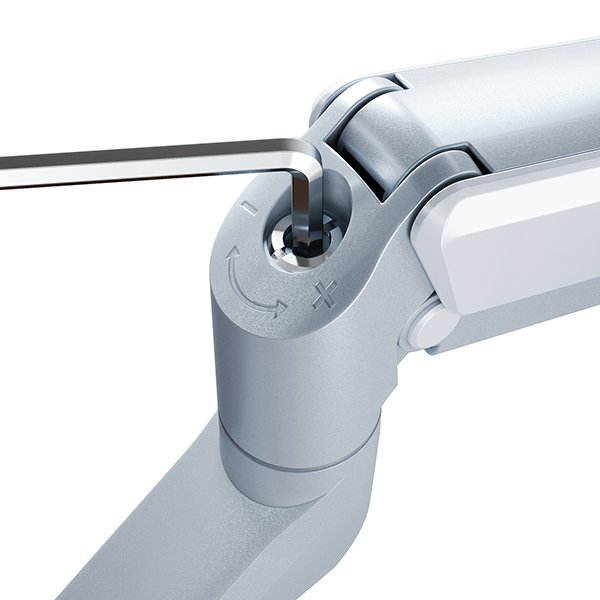

JIBE’s unique arm design allows arms to be fully pushed back in while keeping monitors seamlessly positioned side by side. A detachable VESA plate allows for quick and simple monitor installation and removal. Use an Allen wrench to fine tune the spring tension of JIBE monitor arm to perfectly counterbalance any monitor weighing between 5–20 lb. The 180 degree pivot limiter locks out the rotation of the arm preventing collisions with walls and panels. Bring power to your JIBE monitor arm base by integrating two USB 3.0 cables.

Technical Specifications

ColorBlack, Silver and White
Weight Capacity Supports two monitors 5–20 lbs each
Maximum Monitor Height 20.27"
Articulation Range 12.60"
Forward Reach 22.67"
Stowed Depth 3.55"
Monitor Tilt +/- 40 degrees
Monitor Pivot +/- 90 degrees
Monitor Rotation +/- 90 degrees
Standard VESA 75 mm and 100 mm
Warranty 10 years

Product Options/Accessories

Model JIBE-2SDA-CCG
Manufacturer Workrite Ergonomics
Part Number JIBE-2SDA-CCG
Color Black, Silver and White
Weight Capacity 5–20 lbs each
Monitor Height Maximum 20.27"
Articulation Range 12.60"
Forward Reach 22.67"
Stowed Depth 3.55"
Tilt +/- 40 degree
Pivot +/- 90 degree
Rotation +/- 90 degree
VESA 75 mm and 100 mm
Mounting Options C-clamp and Grommet
Warranty 10 years
Monitor Placement Side-by-Side
