Workrite Banana Board Keyboard Tray System

Product ID 19623


Keyboard Tray and and Mouse Surface

  • Non-skid keyboard pads

  • Sliding reversible mouse surface

  • Removable palm support

  • Built In document holder

  • Removable palm support

  • Integrated Mouse-Trap

  • Available in black

Keyboard Arm

  • System includes 3170 Pinnacle 2 keyboard arm

  • Adjusts from flush to 6" below worksurface

  • No knob/no lever Lift-n-Lock height adjustment

  • 25° tilt range: -15° +10°

  • Thin Glide maintenance-free ball bearing track

  • 360° arm swivel at track

  • Meets ANSI/BIFMA X5.5 standards

  • Fully stores on 22" track

  • Exceeds front of track 5" on 17" track


Workrite Banana Board is our most popular patented keyboard system. The unique design can be used with both straight and corner worksurfaces. The patented mousing platform slides easily from side to side to accommodate right or left mouse use. Includes our Pinnacle 2 adjustable keyboard arm with ball bearing track. The Banana-Board System comes with a lifetime warranty and is a great option for companies seeking no hassle flexibility and years of dependable quality and performance.

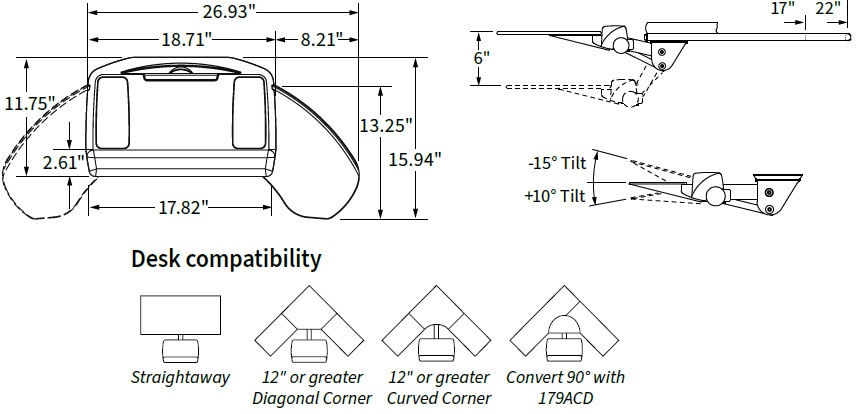

Technical Drawing

Technical Drawing for Workrite Banana Board Keyboard Tray System

Technical Specifications

Color Black
Track Length 17" or 22"
Tilt Range 25° (-15° +10°)
Swivel 360° arm
Warranty Lifetime

Product Options/Accessories

Model Banana Board Keyboard System
Manufacturer Workrite Ergonomics
Part Number Banana Board Keyboard System
Color Black
Tilt 25 degree: -15 +10 degree
Track Length 17" or 22"
Swivel 360 degree
Warranty Lifetime
