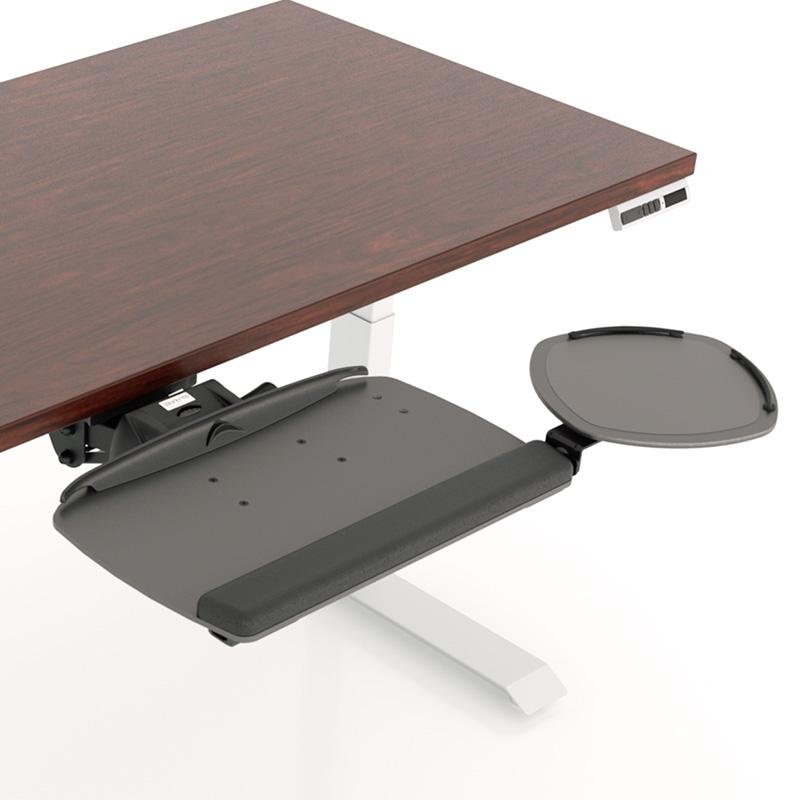

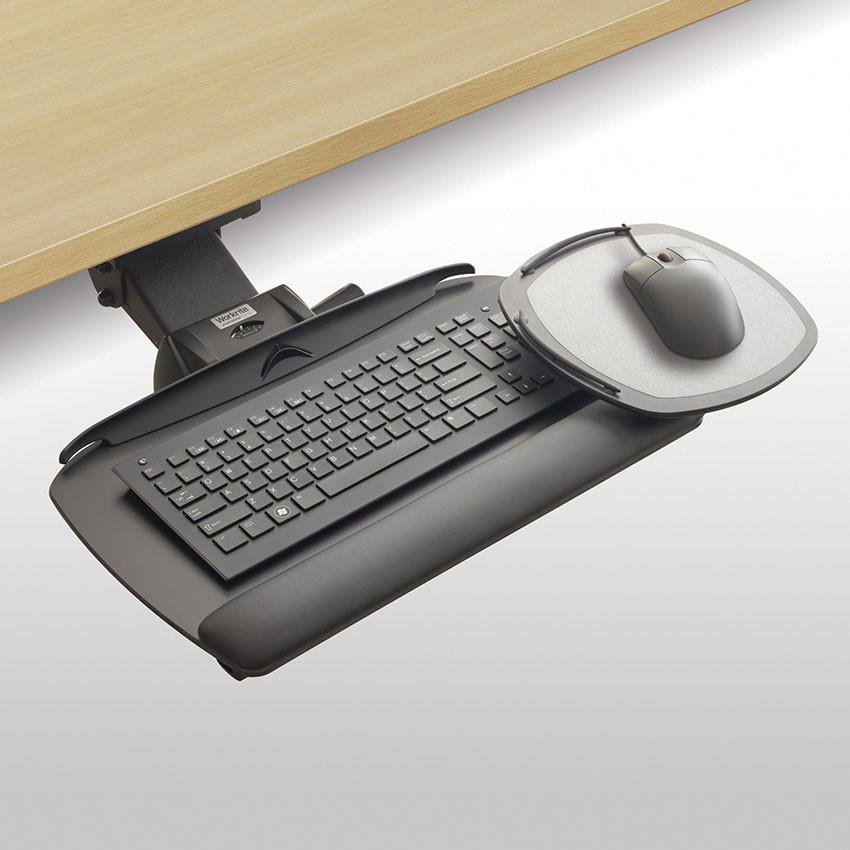

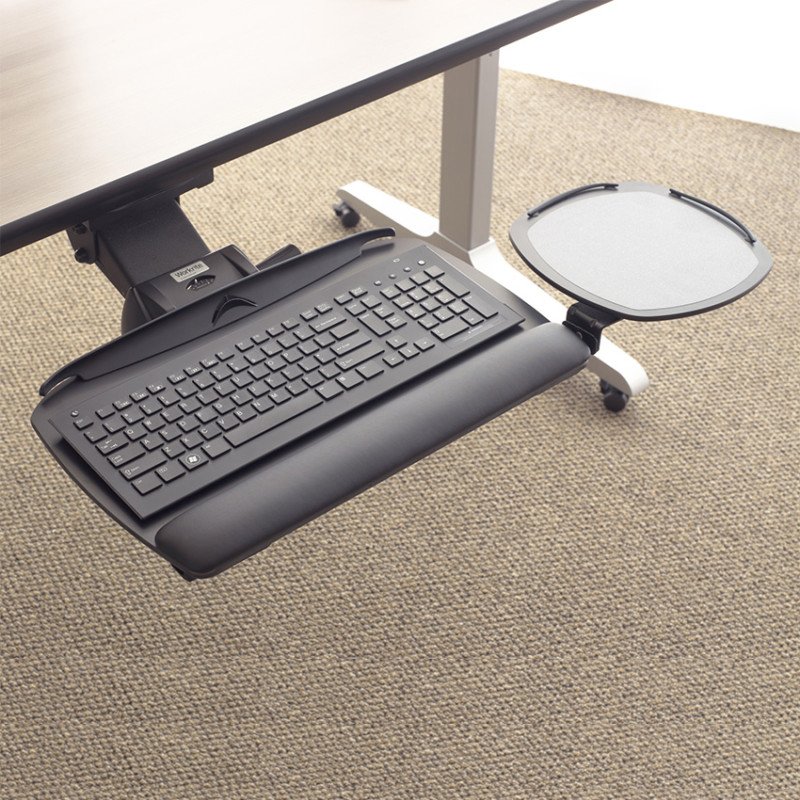

Workrite Revo Keyboard Tray System

Product ID 19624


Keyboard and Mouse Tray

  • Includes Optimizer document holder & cable managment

  • UltraThin .25 solid phenolic construction

  • Removable palm support

  • Mouse-Over & Mouse-Level positioning

  • Independent mouse tilt

  • No tools required right/left reversible

  • Available in black

Keyboard Arm

  • System includes 3170 Pinnacle 2 keyboard arm

  • Adjusts from flush to 6" below worksurface

  • No knob/no lever Lift-n-Lock height adjustment

  • 25° tilt range: -15° +10°

  • ThinGlide maintenance-free ball bearing track

  • 360° arm swivel at track

  • Meets ANSI/BIFMA X5.5 standards

  • Fully stores on 22" track

  • Exceeds front of track 3" on 17" track


Workrite Revo System features a versatile Mouse-Over platform designed for use in mouse intensive or limited reach applications and is a good solution for straight or corner workspace applications. The Revo System includes our Pinnacle 2 keyboard arm with maintenance-free 17" or 22" ball bearing track. The tray is constructed from durable ultra-thin phenolic and features a built-in document holder and cable manager. The Revo System comes with a lifetime warranty and will provide years of reliable, maintenance-free performance and reliability.

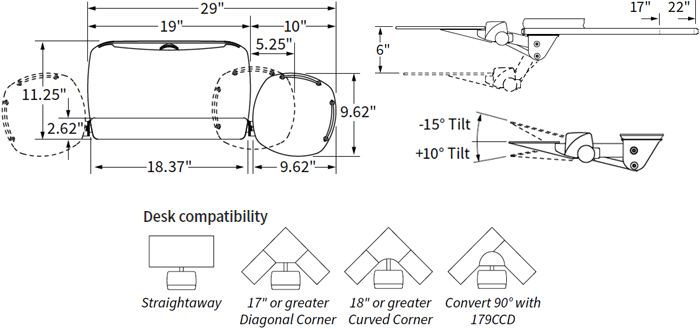

Technical Drawing

Technical Drawing for Workrite Revo Keyboard Tray System

Technical Specifications

Color Black
Track Length 17" or 22"
Tilt Range 25° (-15° +10°)
Swivel 360° arm
Warranty Lifetime

Product Options/Accessories

Model Revo Keyboard Tray System
Manufacturer Workrite Ergonomics
Part Number Revo Keyboard Tray System
Color Black
Tilt 25 degree: -15 +10 degree
Track Length 17" or 22"
Swivel 360 degree
Material UltraThin 0.25" solid phenolic construction
Warranty Lifetime

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)


Workrite warrants to the original purchaser that the products it manufactures are free from defects in design, material and workmanship. Subject to the limitations below, Workrite warrants each product in this catalog to be free from defects in materials and workmanship for the life of the product in its original installation. With prompt written notice, Workrite will repair or replace, free of charge, any product, part or component which fails under normal use as a result of such defect.

  • Sierra HX Height Adjustable Workcenter components - Limited Lifetime
    Electric components, motors, frames, brackets and feet.

All of the following exceptions to the limited lifetime warranty apply:

  • Fundamentals Electric Height Adjustable Workcenter components - 10 years
    Electric components, motors, frames, brackets and feet

  • Essentia Height Adjustable Workcenter components - 5 years
    Electric components, motors, frames, brackets and feet

  • Laminated worksurfaces and modesty panels - 5 years

  • Sierra HXL Crank Height Adjustable Workcenter components - 5 years
    Including crank mechanisms

  • Cascade Height Adjustable Workcenter components - 5 years
    Including counter-balance mechanisms

  • Line of Sight electrical components and manual lifts - 5 years

  • Line of Sight frames and metal desk parts - 5 years

  • Monitor supports and mounts - 10 years

  • Solace Clamp-on sit-stand products - 5 years

  • Solace Desktop sit-stand products - 2 years

  • LED and florescent lighting fixtures - 5 years

  • Lighting transformers and fluorescent ballasts - 1 year

  • Tranquility Wool & PET Felt panels and mounts - 5 years

  • Tranquility Poly Panels - 2 years

  • Fabrics, modesty panels, custom products and special order items - 2 years

  • Mousing surfaces and Slide Guide - 1 year
