$346.00

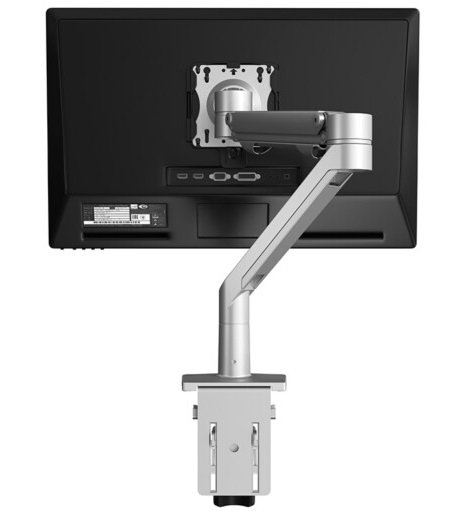

Workrite Conform LT Single Monitor Arm for Lightweight Monitors (1-14 pounds)

Product ID 19810
HIGHLIGHTS

Highlights

  • Model: CONF-LT-1SA-TPCG-S
  • Supports one 1-14 lb monitor
  • Maximum monitor height: 13.5"
  • Articulation range: 13"
  • Forward reach: 22.5"
  • Stowed depth: 4.25"
  • Monitor tilt: +45°/-90°
  • Monitor pivot: +/-90°
  • Monitor rotation: +/-90°
  • Standard VESA: 75mm & 100mm
  • Includes C-clamp or grommet mount
  • Warranty: 10 years

Description

Workrite Conform LT monitor mount features a streamlined design ideal for supporting lightweight monitors weighing 1-14 lbs. A high performance spring combined with the parallel linkage design keeps monitors perfectly balanced while providing easy vertical adjustment. Conform LT is available with a C-clamp or Grommet mount. The Conform LT comes with a 10 year warranty and will provide years of dependable performance.

  • Streamlined design for simple specification

  • Includes Quick Release Adaptor

  • Ideal for lightweight monitors (supports one 1-14 lbs monitor)

  • Smooth lifting through a high performance spring

  • Designed for fast, easy installation

  • Warranty: 10 years

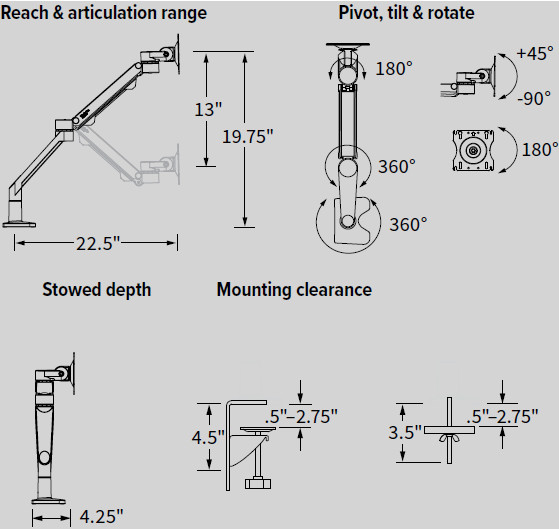

Technical Drawing

Technical Drawing for Workrite Conform LT Single Monitor Arm for Lightweight Monitors (1-14 lbs)

Specifications

ColorSilver
Weight Capacity Supports one 1-14 lbs monitor
Maximum Monitor Height 13.5" (full range of motion)
Articulation Range 13"
Forward Reach 22.5"
Stowed Depth 4.25"
Mounting OptionsC-Clamp and Grommet Mount
Monitor Tilt+45/-90 degree
Monitor Pivot +/- 90 degree
Monitor Rotation +/-90 degree
Standard VESA 75 mm and 100 mm
Warranty 10 years

Features

  • Supports one 1-14 lbs monitor

  • Maximum monitor height: 13.5" (full range of motion)

  • Articulation range: 13"

  • Forward reach: 22.5"

  • Stowed depth: 4.25"

  • Monitor: Tilt: +45°/-90°, Pivot: +/-90°, Rotation: +/-90°

  • Standard VESA (75 mm & 100 mm)

  • Mounts included with arm: C-clamp or Grommet

  • Warranty: 10 years

  • Color: silver

Product Options/Accessories

Model CONF-LT-1SA-TPCG-S
Manufacturer Workrite Ergonomics
Part Number CONF-LT-1SA-TPCG-S
Color Silver
Weight Capacity 1-14 lbs
Monitor Height 13.5" (full range of motion)
Articulation Range 13"
Forward Reach 22.5"
Stowed Depth 4.25"
Tilt +45/-90 degree
Pivot +/-90 degree
Rotation +/-90 degree
Mounting Pattern VESA 75 mm & 100 mm
Mounting Options C-clamp or Grommet
Warranty 10 years

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)

Warranty

Workrite warrants to the original purchaser that the products it manufactures are free from defects in design, material and workmanship. Subject to the limitations below, Workrite warrants each product in this catalog to be free from defects in materials and workmanship for the life of the product in its original installation. With prompt written notice, Workrite will repair or replace, free of charge, any product, part or component which fails under normal use as a result of such defect.

  • Sierra HX Height Adjustable Workcenter components - Limited Lifetime
    Electric components, motors, frames, brackets and feet.

All of the following exceptions to the limited lifetime warranty apply:

  • Fundamentals Electric Height Adjustable Workcenter components - 10 years
    Electric components, motors, frames, brackets and feet

  • Essentia Height Adjustable Workcenter components - 5 years
    Electric components, motors, frames, brackets and feet

  • Laminated worksurfaces and modesty panels - 5 years

  • Sierra HXL Crank Height Adjustable Workcenter components - 5 years
    Including crank mechanisms

  • Cascade Height Adjustable Workcenter components - 5 years
    Including counter-balance mechanisms

  • Line of Sight electrical components and manual lifts - 5 years

  • Line of Sight frames and metal desk parts - 5 years

  • Monitor supports and mounts - 10 years

  • Solace Clamp-on sit-stand products - 5 years

  • Solace Desktop sit-stand products - 2 years

  • LED and florescent lighting fixtures - 5 years

  • Lighting transformers and fluorescent ballasts - 1 year

  • Tranquility Wool & PET Felt panels and mounts - 5 years

  • Tranquility Poly Panels - 2 years

  • Fabrics, modesty panels, custom products and special order items - 2 years

  • Mousing surfaces and Slide Guide - 1 year
