$662.00

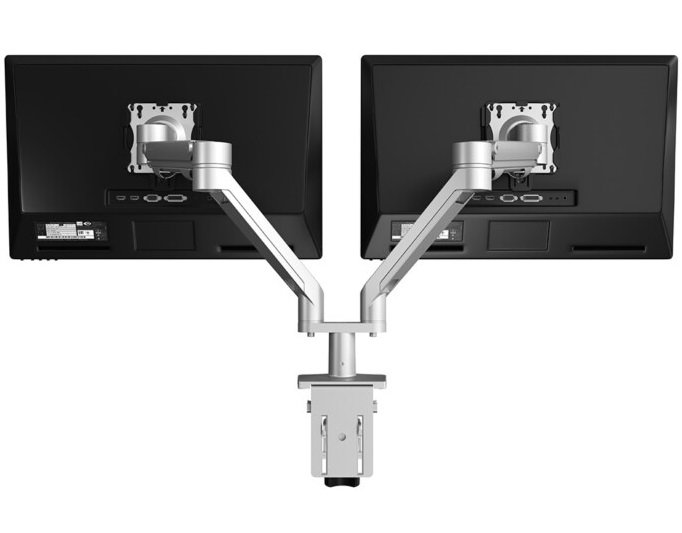

Workrite Conform LT Dual Monitor Arm ( 1-14 lb monitors)

Product ID 19811
HIGHLIGHTS

Highlights

  • Model: CONF-LT-2SA-TPCG-S
  • Color: silver
  • Supports two monitors 1-14 lb
  • Maximum monitor height: 13.5" (full range of motion)
  • Maximum monitor width: 32" ( w/loss of reach)
  • Articulation range: 13"
  • Forward reach: 21.5"
  • Stowed depth: 4.25"
  • Monitor tilt: +45°/-90°
  • Monitor pivot: +/-90°
  • Monitor rotation: +/-90°
  • Standard VESA (75mm & 100mm)
  • C-Clamp or Grommet mount included with arm
  • Warranty: 10 years

Description

Workrite Conform LT Dual is designed to support two lightweight monitors weighing from 1-14 pounds. The single mount design features two arms that move independently to enable users to share one screen while keeping the second private. Conform LT Dual’s streamlined design features a high performance spring and parallel link that keep monitors perfectly balanced while providing easy vertical adjustment. Conform LT Dual is available with a C-clamp and Grommet mount and comes with a 10 year warranty ensuring years of reliable performance and adjustability.

  • Streamlined design for simple specification

  • Includes Quick Release Adaptors

  • Ideal for lightweight monitors (supports two 1-14 lbs monitors)

  • Smooth lifting through a high performance spring

  • Designed for fast, easy installation

  • Warranty: 10 years

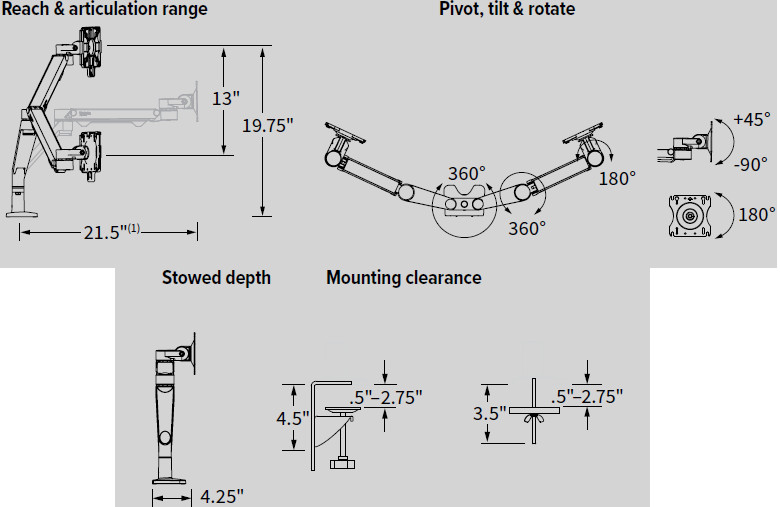

Technical Drawing

Technical Drawing for Workrite Conform LT Dual Monitor Arm (1-14 lbs monitors)

Specifications

ColorSilver
Weight Capacity Supports two 1-14 lbs monitors
Maximum Monitor Height13.5" (full range of motion)
Maximum Monitor Width32" (w/ loss of reach)
Articulation Range 13"
Forward Reach 21.5"
Stowed Depth 4.25"
Mounting OptionsC-Clamp or Grommet Mount
Monitor Tilt+45/-90 degree
Monitor Pivot +/- 90 degree
Monitor Rotation +/-90 degree
Standard VESA 75 mm and 100 mm
Warranty 10 years

Features

  • Supports: Two 1-14 lbs monitors

  • Maximum monitor height: 13.5" (full range of motion)

  • Maximum monitor width: 32" (w/ loss of reach)

  • Articulation range: 13"

  • Forward reach: 21.5"

  • Stowed depth: 4.25"

  • Monitor: Tilt: +45°/-90°, Pivot: +/-90°, Rotation: +/-90°

  • Standard VESA (75 mm & 100 mm)

  • Mounts included with arm: C-clamp or Grommet

  • Warranty: 10 years

  • Color: silver

Product Options/Accessories

Model CONF-LT-2SA-TPCG-S
Manufacturer Workrite Ergonomics
Part Number CONF-LT-2SA-TPCG-S
Color Silver
Weight Capacity 1-14 lbs per monitor
Monitor Height 13.5" (full range of motion)
Monitor Width 32" (with loss of reach)
Articulation Range 13"
Forward Reach 21.5"
Stowed Depth 4.25"
Tilt +45/-90 degree
Pivot +/-90 degree
Rotation +/-90 degree
Mounting Pattern VESA 75 mm & 100 mm
Mounting Options C-clamp or Grommet
Warranty 10 years
