Workrite Conform Static Monitor Arms
Description

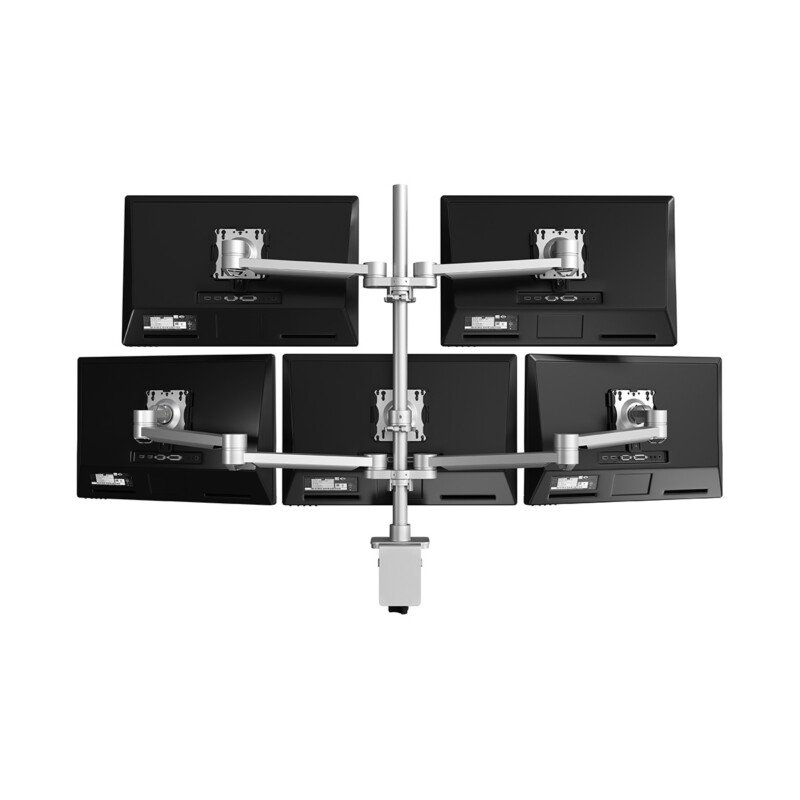

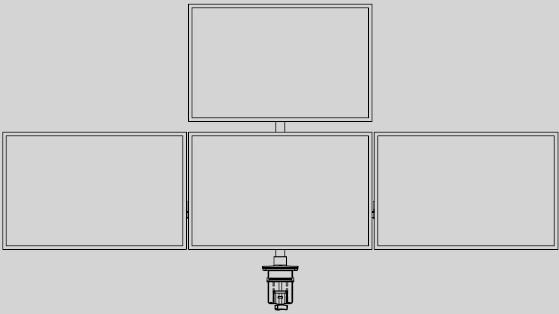

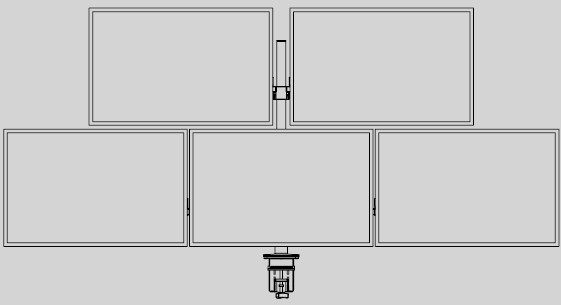

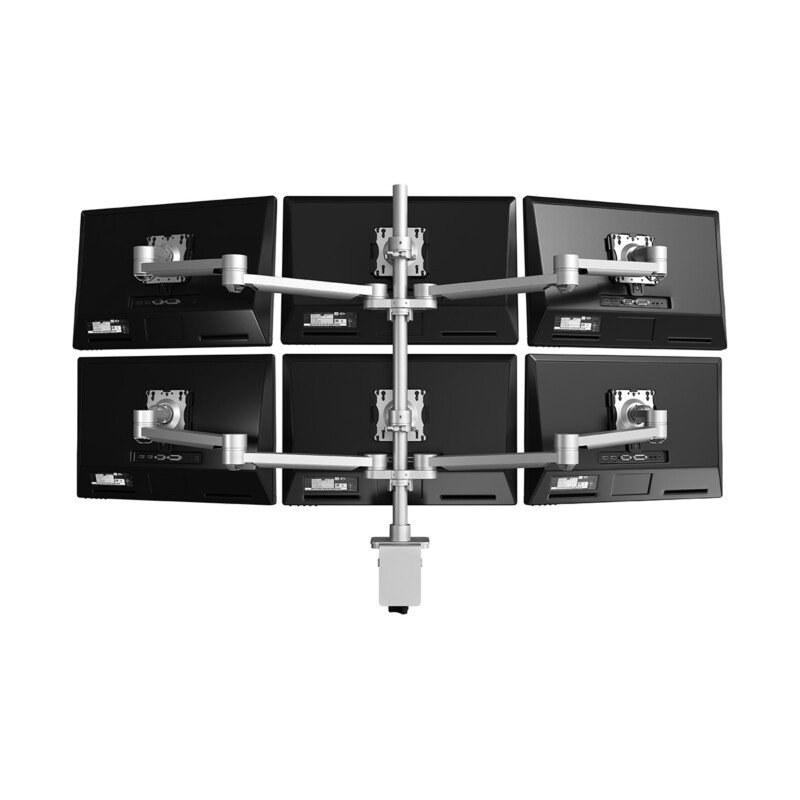

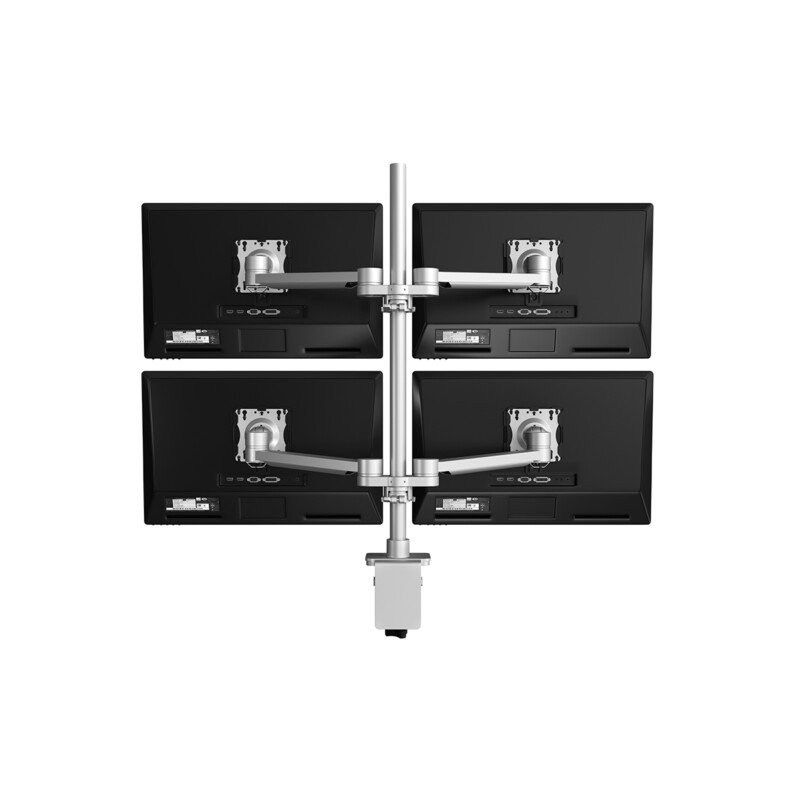

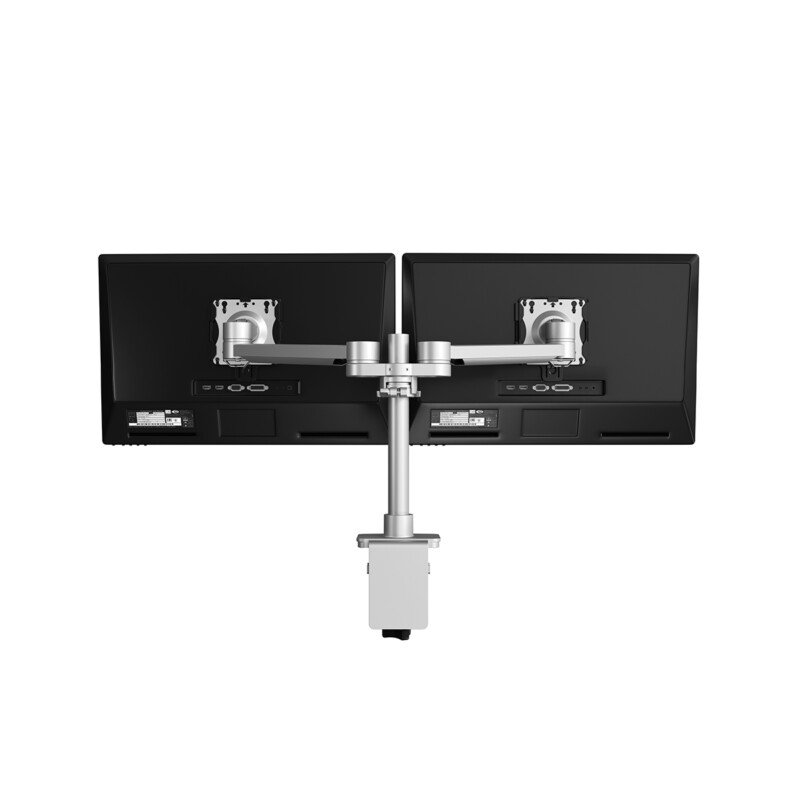

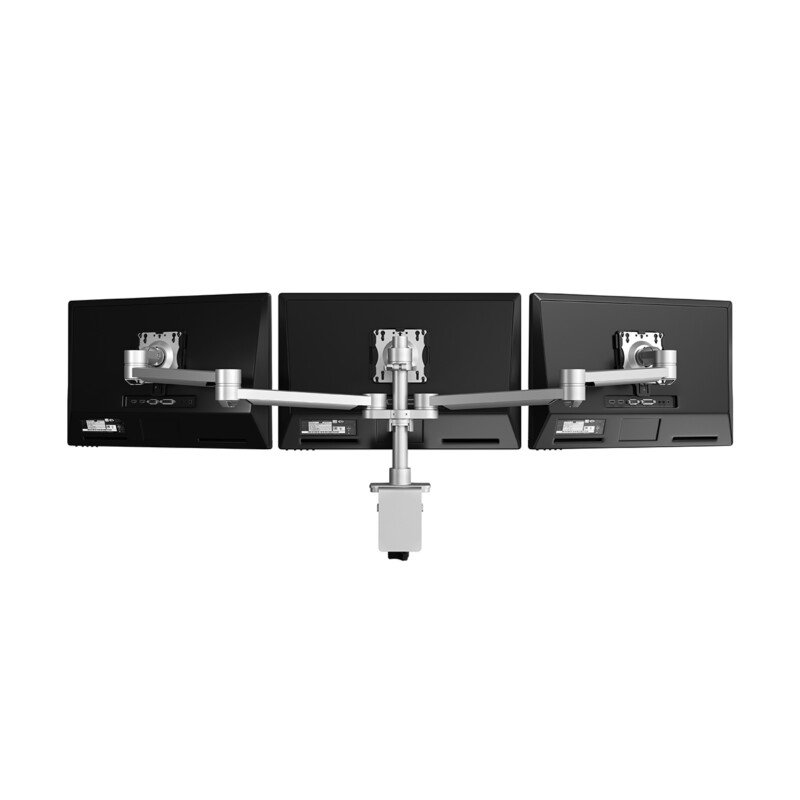

Workrite Conform Static series monitor arms are designed to mount multiple monitors in many configurations. Designed for control centers, security stations, trader desks, gaming or any multiple monitor static positioning use requirement. Mount from 1 to 6 monitors up to 3 wide, single row or over under stacked configurations to meet special multiple monitor mounting needs.

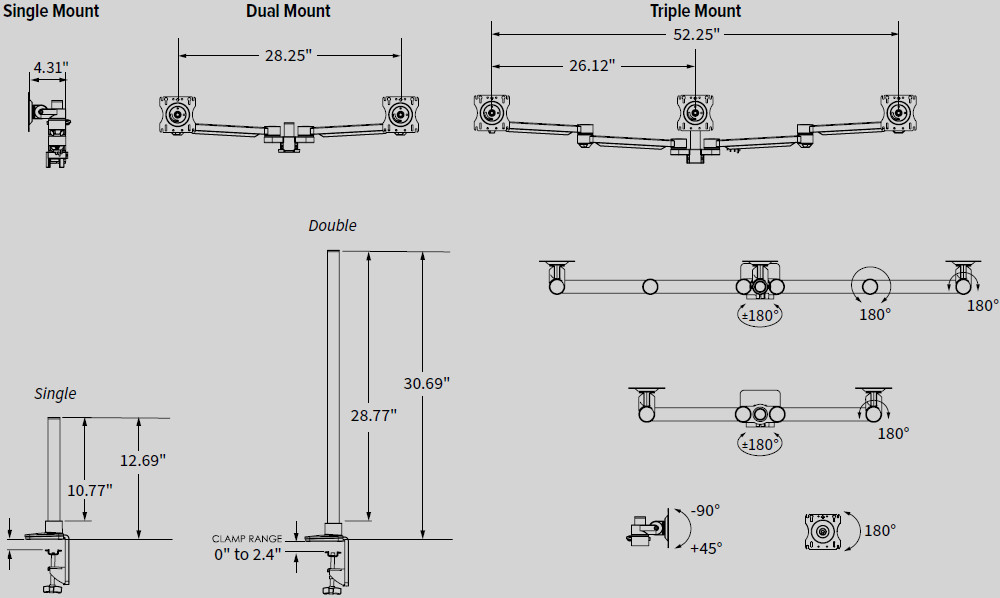

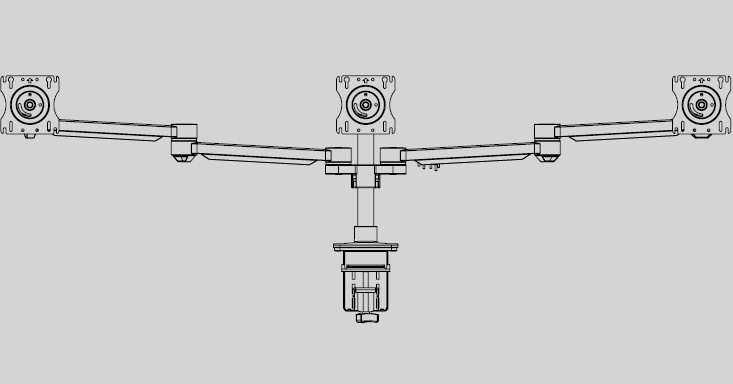

Technical Drawing
Specifications
| Color | Silver |
| Weight Capacity | Supports one to six monitors up to 16 lbs. each |
| Maximum Monitor Height | 15" |
| Maximum Monitor Width | 26" |
| Mounting Options | 2 Piece C-Clamp and Grommet Mount |
| Monitor Tilt | +45 / -90 degrees |
| Monitor Pivot | +/- 180 degrees |
| Monitor Rotation | 360 degrees |
| Standard VESA | 75 mm and 100 mm |
| Warranty | 10 years |
Features
Supports one to six monitors up to 16 pounds each
2 Piece C-Clamp and Grommet Mount included
Quick Release Adaptor for quick and easy monitor mounting included
Sturdy cast aluminum alloy and steel construction
Maximum Monitor Actual Height: 15"
Maximum Monitor Actual Width: 26"
2 and 3 wide versions allow parabolic arc configuration for easy viewing
Monitor: Tilt: +45°/-90°, Pivot: +/-180°, Rotation: +/-180 °
Standard VESA mount (75 mm & 100 mm)
Monitor Rotation: 360 degrees
Environmentally friendly powder-coat finish
Color: Silver
Warranty: 10 years
Product Options/Accessories
| Model | Conform Static |
| Manufacturer | Workrite Ergonomics |
| Part Number | Conform Static |
| Color | Silver |
| Weight Capacity | Up to 16 lbs each |
| Mounting Options | 2 Piece C-Clamp and Grommet Mount |
| Monitor Height | 15" |
| Monitor Width | 26" |
| Material | Sturdy cast aluminum alloy and steel construction |
| Tilt | +45/-90 degree |
| Pivot | +/-180 degree |
| Rotation | +/-180 degree |
| Mounting Pattern | VESA 75 mm & 100 mm |
| Warranty | 10 years |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
- Conform ST Series Cut Sheet
- Conform ST101 Single Installation Instructions

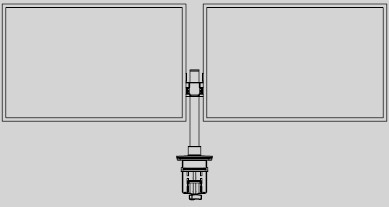

- Conform ST202 Dual Installation Instructions
- Conform ST211 Dual Installation Instructions

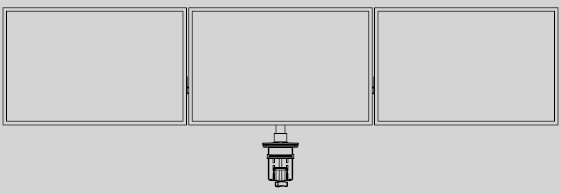

- Conform ST303 Triple Installation Instructions

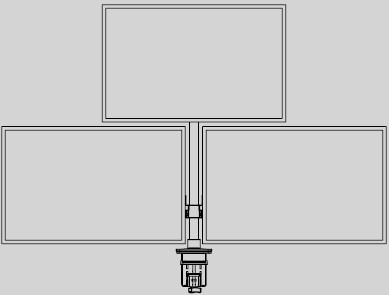

- Conform ST312 Triple Installation Instructions
- Conform ST413 Quad Installation Instructions

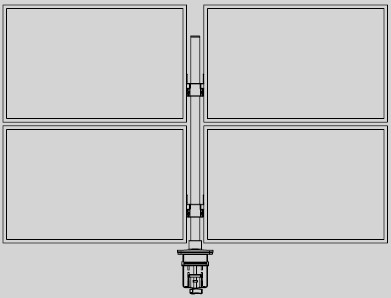

- Conform ST422 Quad Installation Instructions
- Conform ST523 Five Installation Instructions

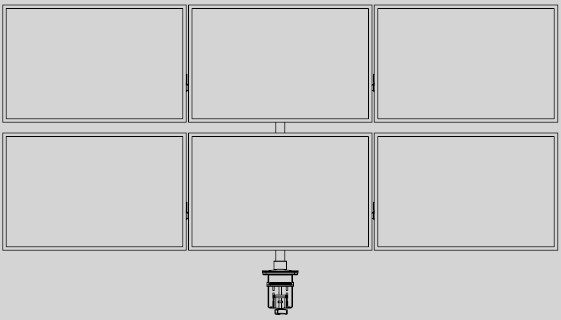

- Conform ST633 Six Installation Instructions
Warranty
Workrite warrants to the original purchaser that the products it manufactures are free from defects in design, material and workmanship. Subject to the limitations below, Workrite warrants each product in this catalog to be free from defects in materials and workmanship for the life of the product in its original installation. With prompt written notice, Workrite will repair or replace, free of charge, any product, part or component which fails under normal use as a result of such defect.
Sierra HX Height Adjustable Workcenter components - Limited Lifetime
Electric components, motors, frames, brackets and feet.
All of the following exceptions to the limited lifetime warranty apply:
Fundamentals Electric Height Adjustable Workcenter components - 10 years
Electric components, motors, frames, brackets and feetEssentia Height Adjustable Workcenter components - 5 years
Electric components, motors, frames, brackets and feetLaminated worksurfaces and modesty panels - 5 years
Sierra HXL Crank Height Adjustable Workcenter components - 5 years
Including crank mechanismsCascade Height Adjustable Workcenter components - 5 years
Including counter-balance mechanismsLine of Sight electrical components and manual lifts - 5 years
Line of Sight frames and metal desk parts - 5 years
Monitor supports and mounts - 10 years
Solace Clamp-on sit-stand products - 5 years
Solace Desktop sit-stand products - 2 years
LED and florescent lighting fixtures - 5 years
Lighting transformers and fluorescent ballasts - 1 year
Tranquility Wool & PET Felt panels and mounts - 5 years
Tranquility Poly Panels - 2 years
Fabrics, modesty panels, custom products and special order items - 2 years
Mousing surfaces and Slide Guide - 1 year
