Chief LSCUB or LSCUW Voyager Manual Height Adjustable AV Cart
Description

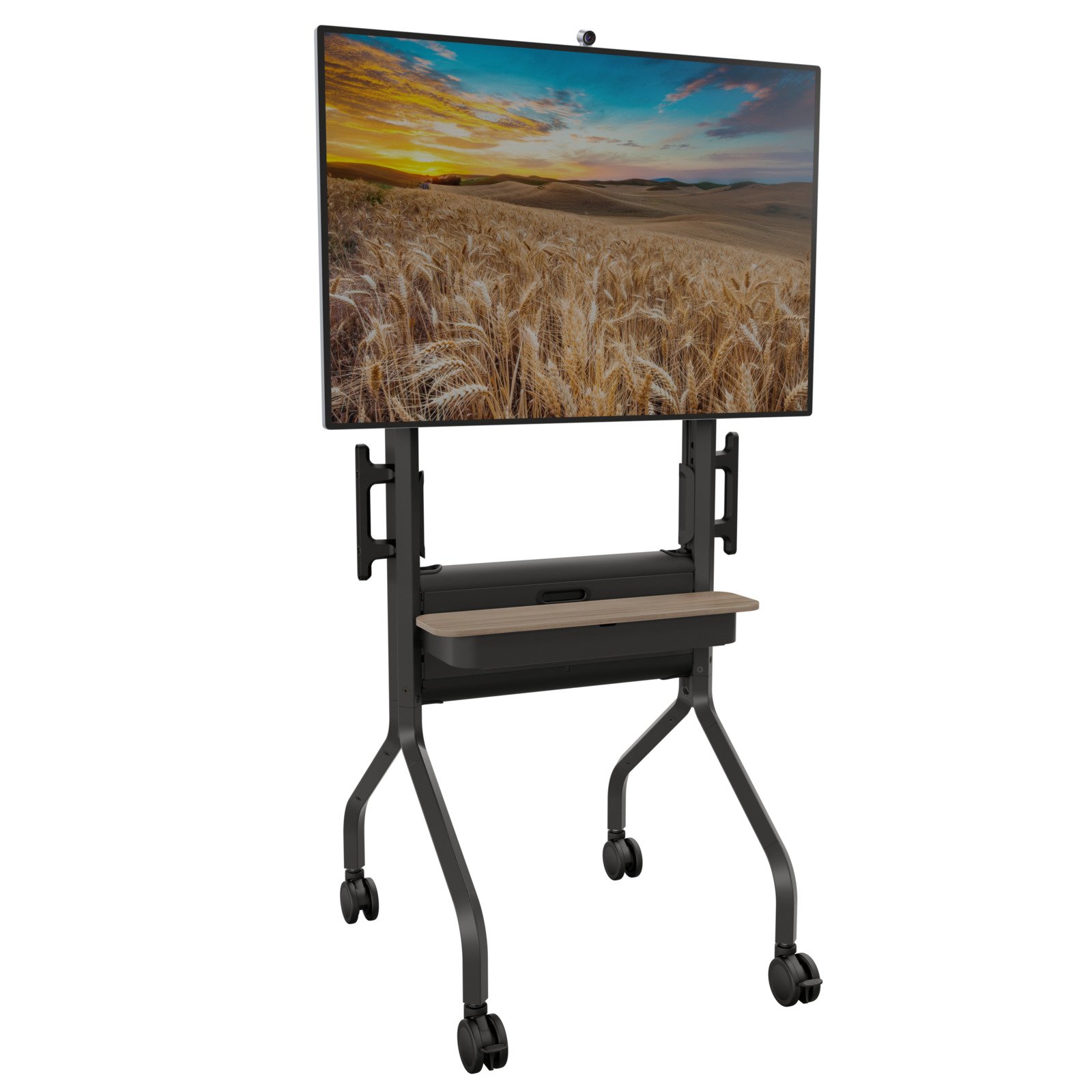

The Voyager is a compact mobile display solution to support flexible conferencing and collaboration in workspaces and digital signage. Built-in cable management and small device storage create quick and attractive AV installations. Sleek handles promote accessibility and effortless movement.
Camera and speaker mounts integrate with a wide range of conferencing and collaboration technologies from Vaddio, Logitech, Poly, Google, and others to support meeting platforms such as Zoom, Microsoft Teams, Google Meet and more. The slim footprint of Voyager invites users to easily step up to interactive displays and move freely around the cart. Future proof your conference room with an adaptable mobile cart compatible with a wide range of flat panel TVs.
Specifications
| Center of Display to Floor Table Range | 50.72" - 60.96" (1288 - 1548 mm) |
| Certifications | UL Listed, TUV Certified |
| Color | Black, White |
| Minimum Depth | 33" (838.7 mm) |
| Mounting Pattern Compatibility (Universal Versions) | 200-200mm - 600-400mm VESA |
| Overall Dimensions (H x W x D) | 71.26" x 34.8" x 33" (1809.9 x 885.2 x 838.7 mm) |
| Shipping Weight | 136 lbs (61.6 kg) |
| Solution Type | Universal |
| Typical Screen Sizes | 50-75" |
| Weight Capacity | 175 lb (79 kg) |
| Orientation | Landscape, Portrait |
Features

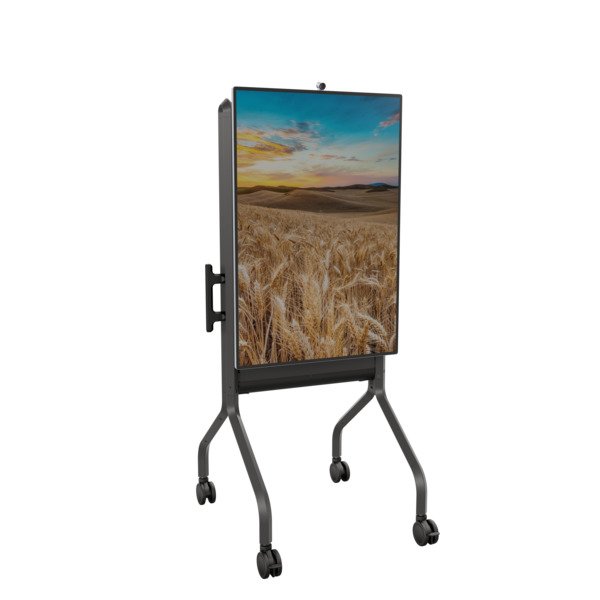

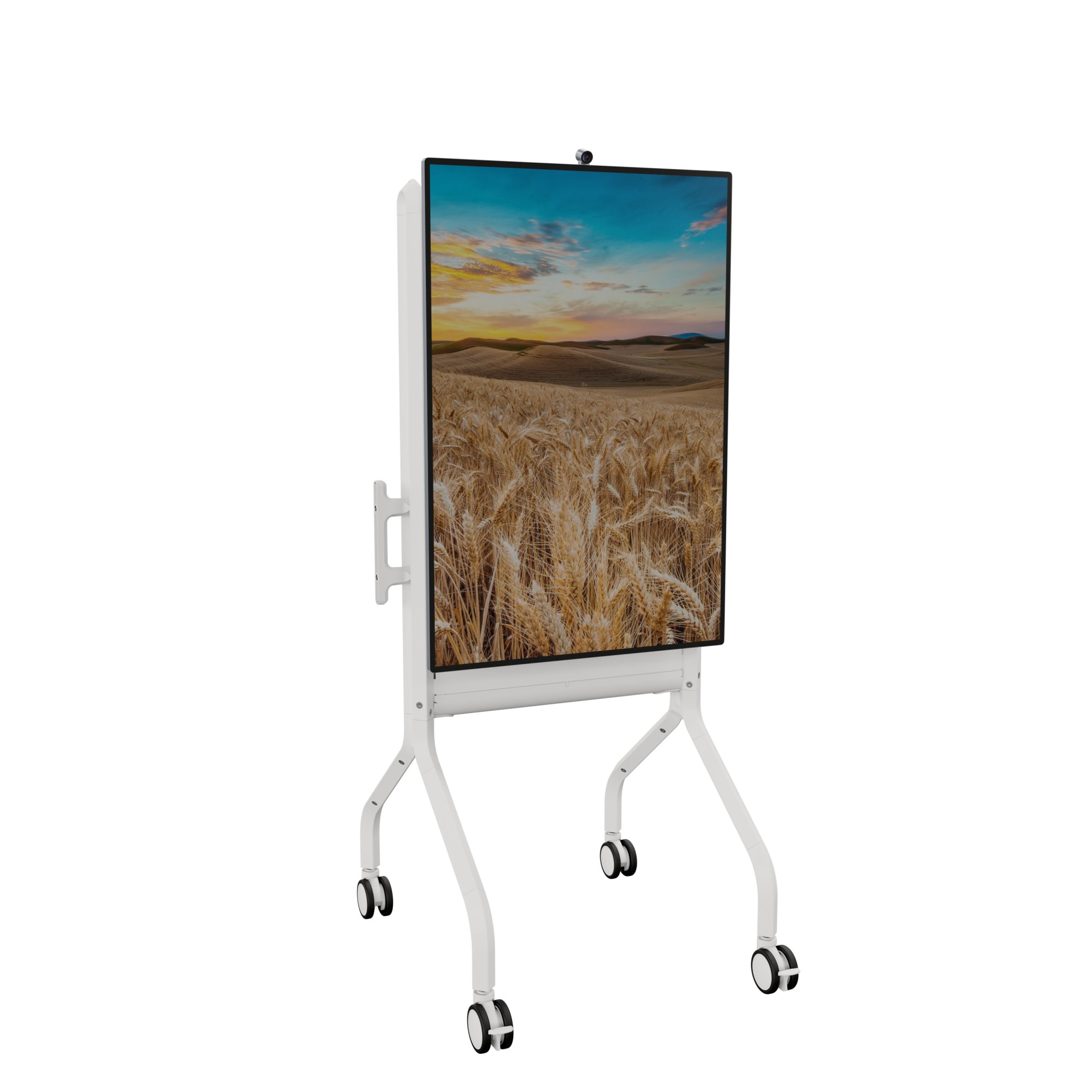

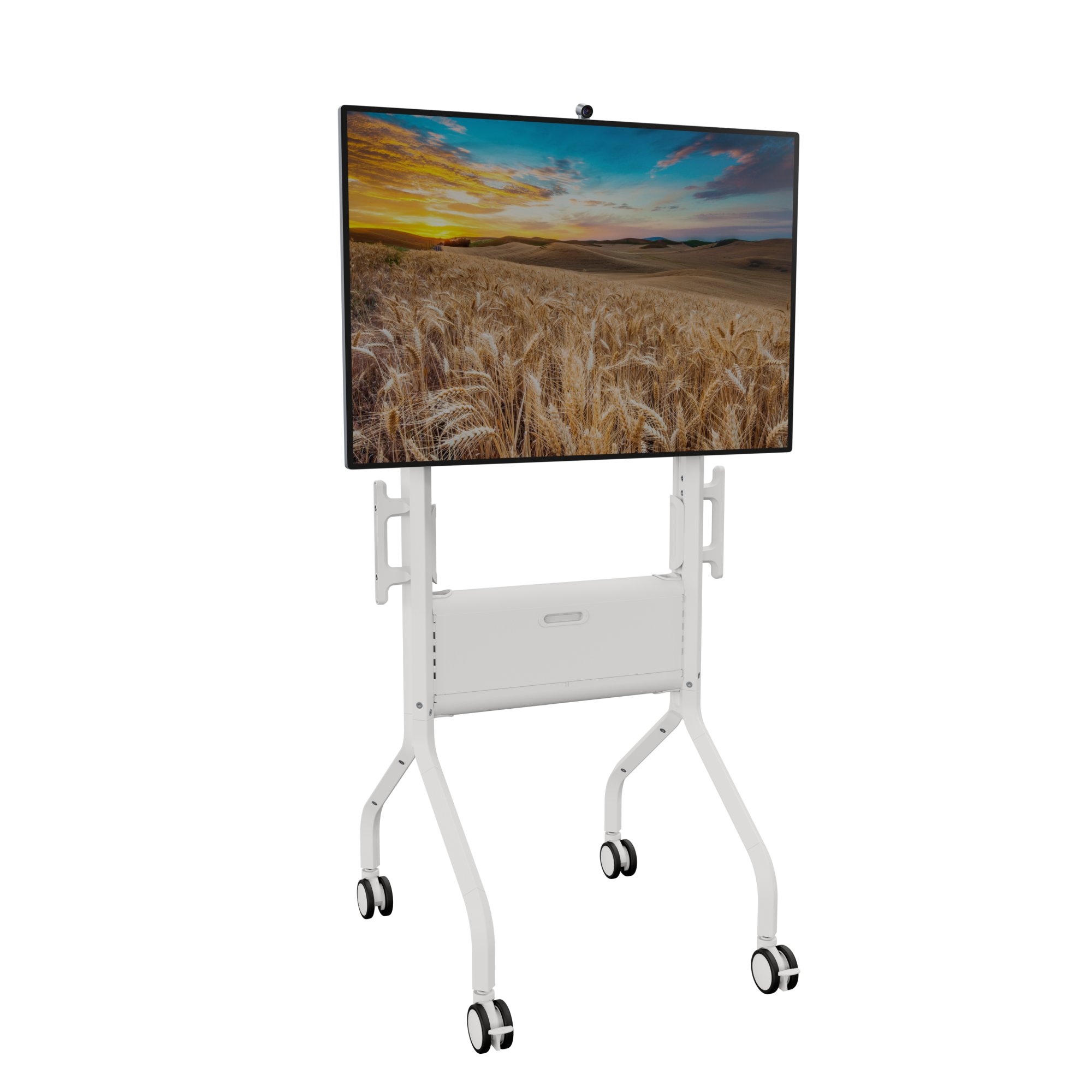

Can be mounted in portrait or landscape orientation

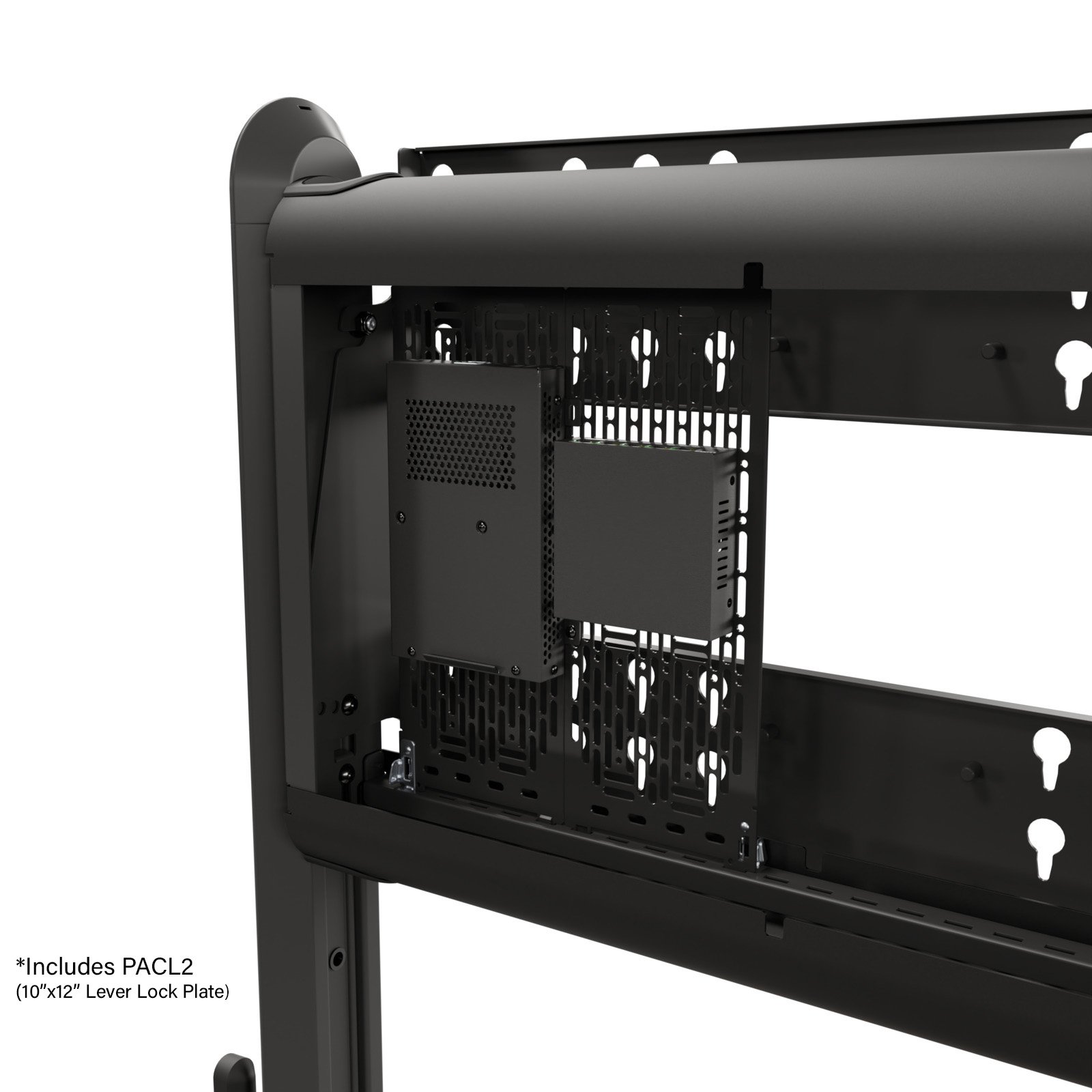

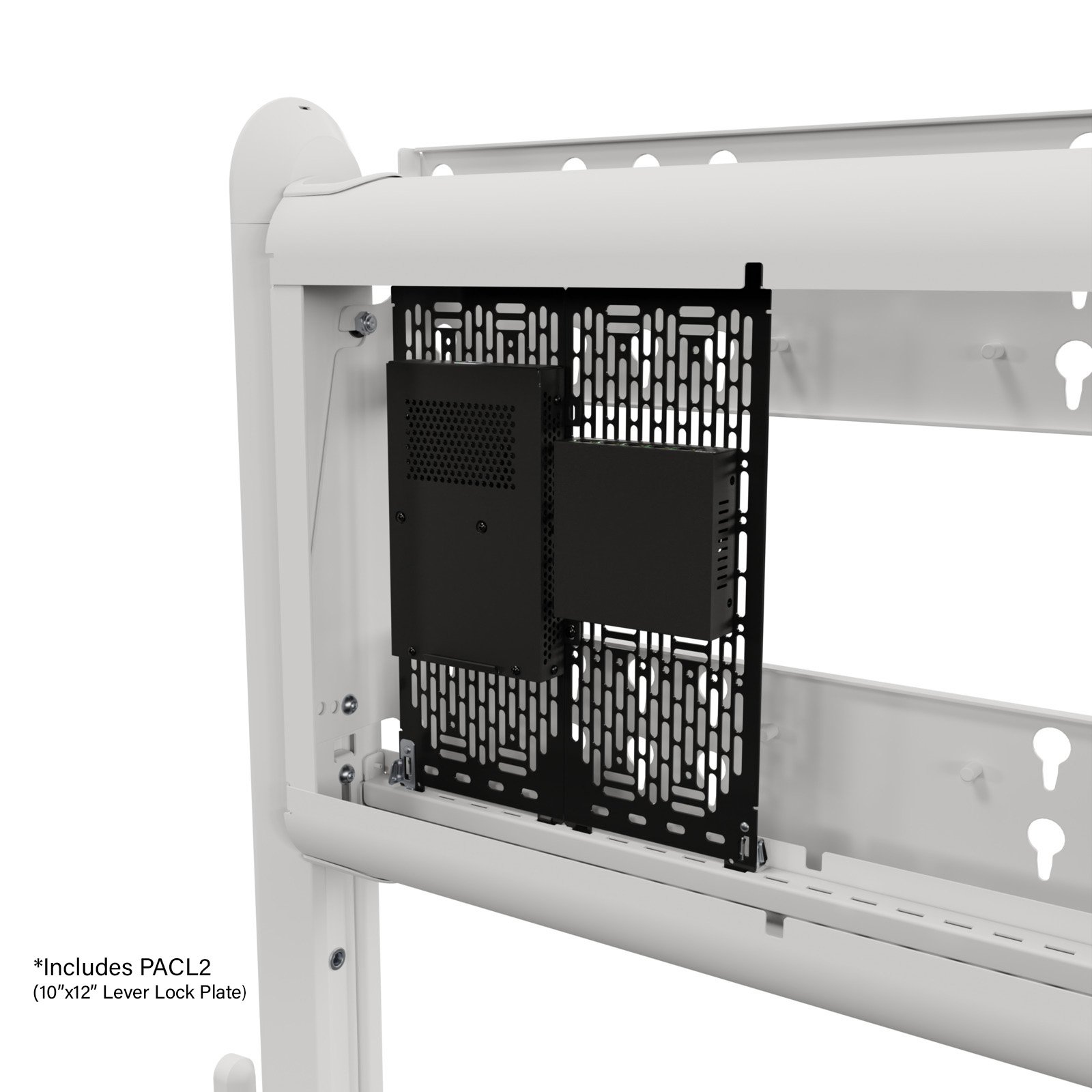

Concealed storage lever lock compatible including PACL2 component storage
Sophisticated design: elevated aesthetics to complement contemporary spaces
Robust display mounting with manual height adjustment, accommodates multiple heights and displays sizes
175 lbs. weight capacity supports most touch displays up to 75" for interactivity
Freestyle Flat Panel Rotation Adapter accessory provides rotation from landscape to portrait orientation with rotating displays like MS Surface Hub and Samsung Flip 2

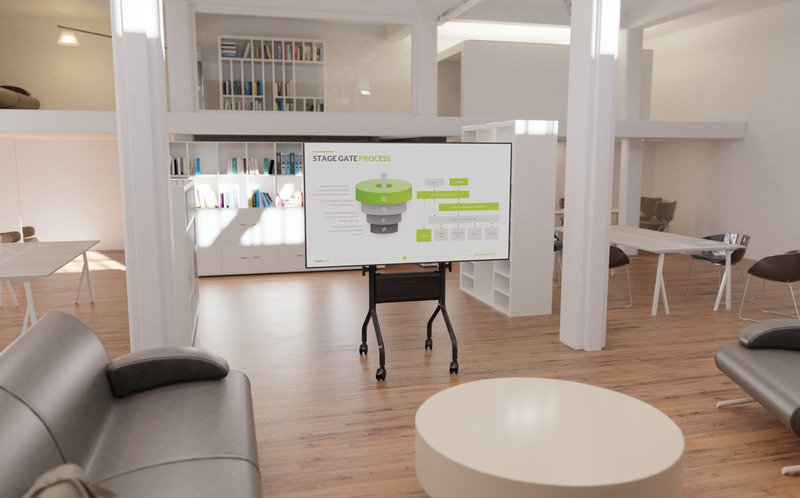

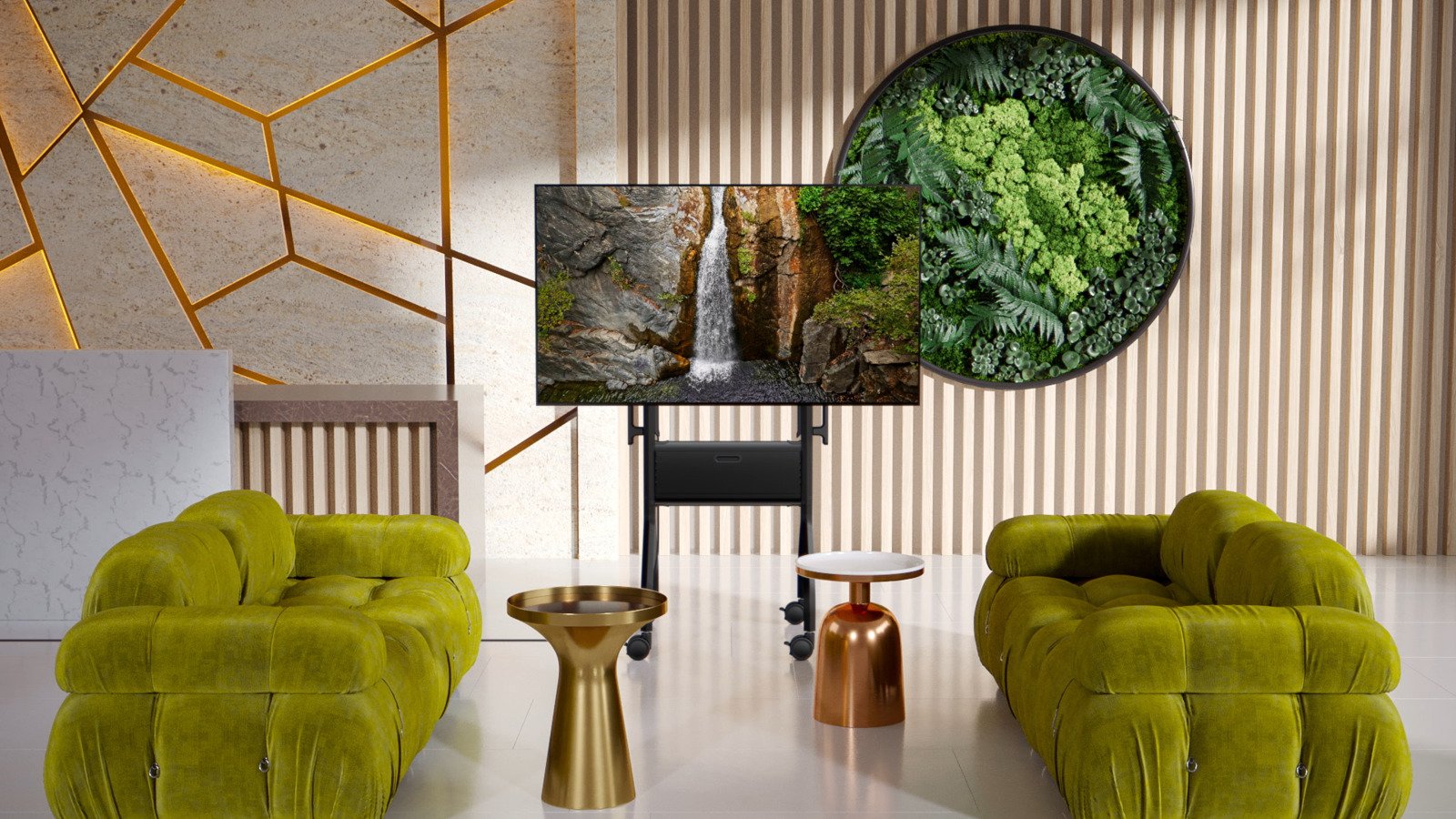

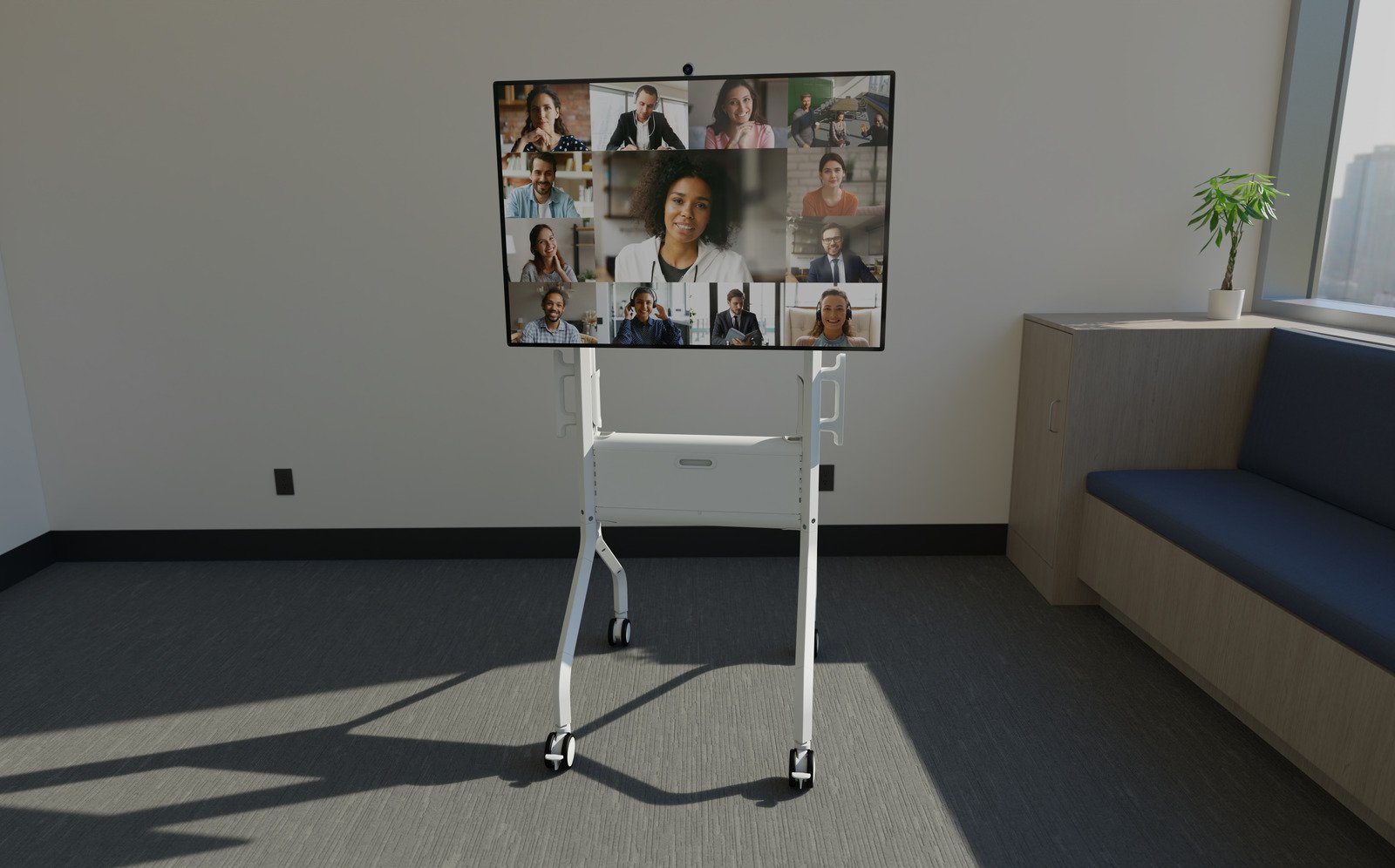

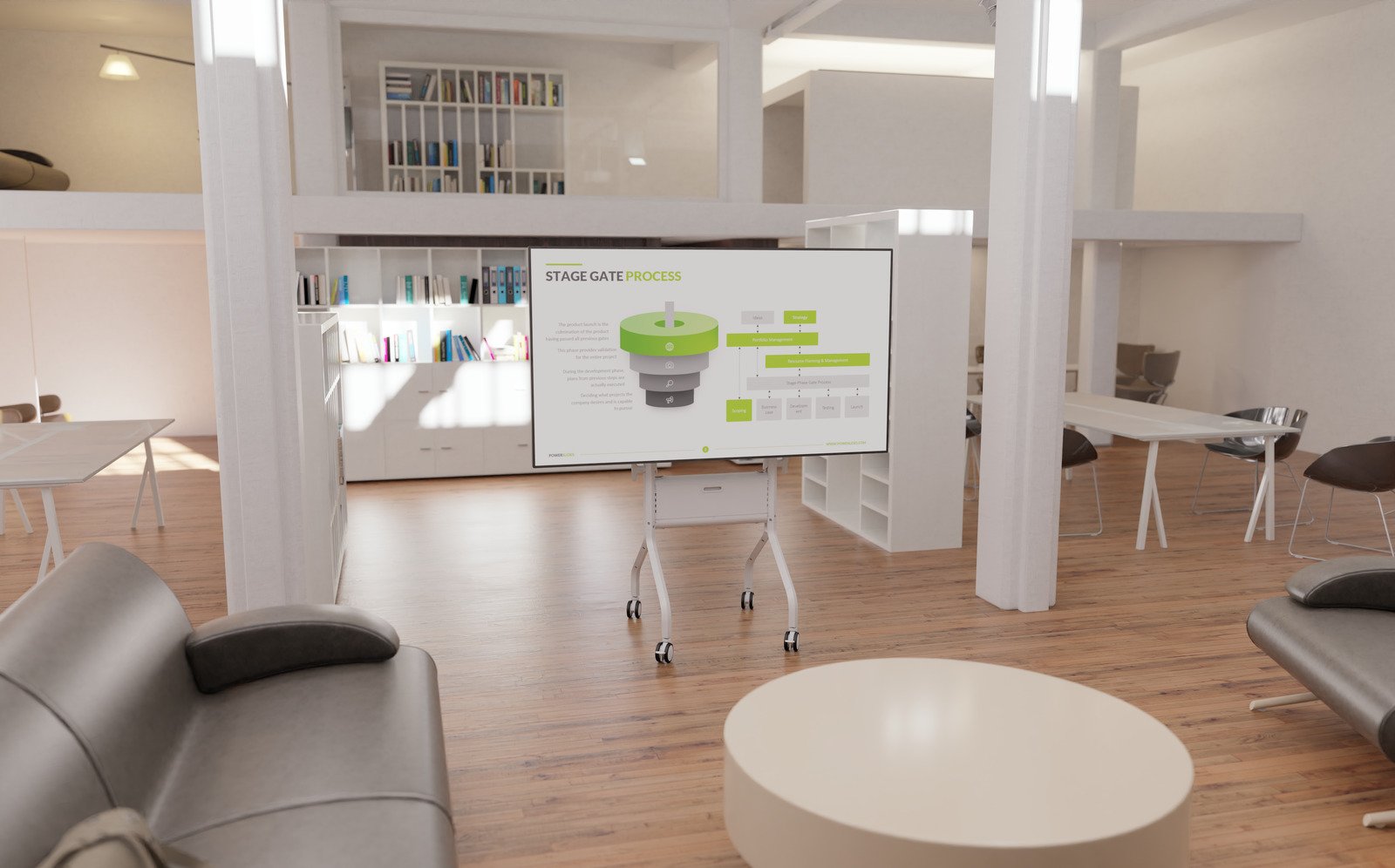

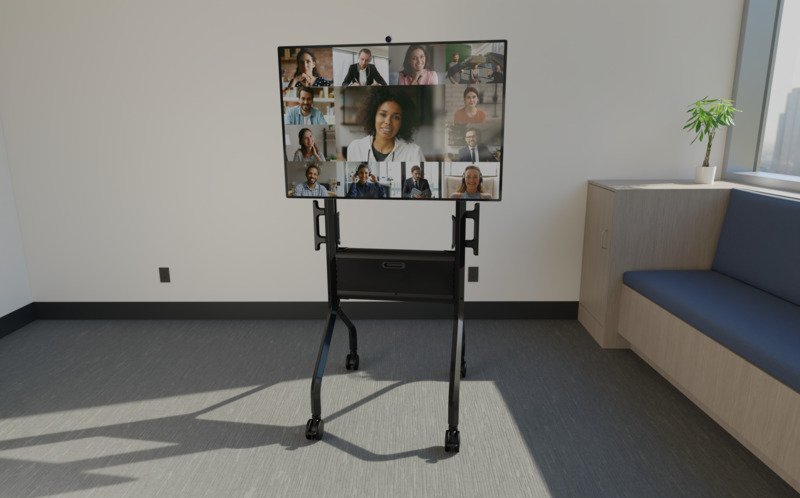

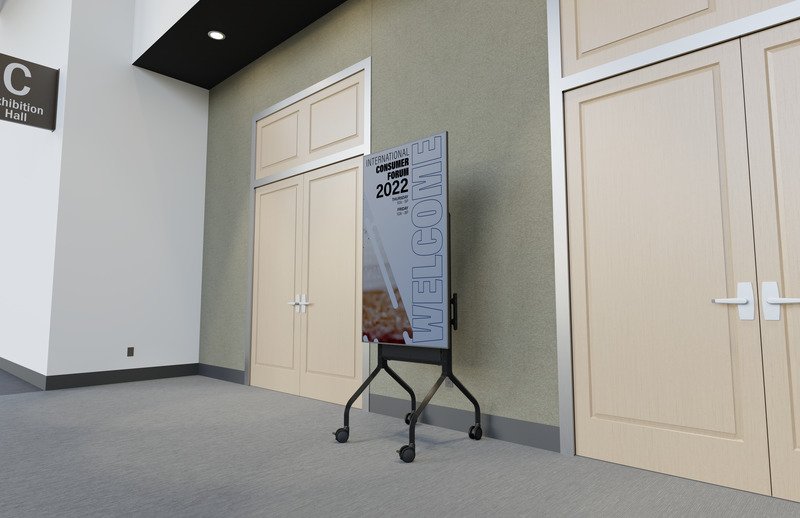

Ideal for corporate conferencing and collaboration, higher education collaboration spaces, digital signage for hospitality, and many more applications
Technology agnostic; providing peace of mind to future-proof your investment

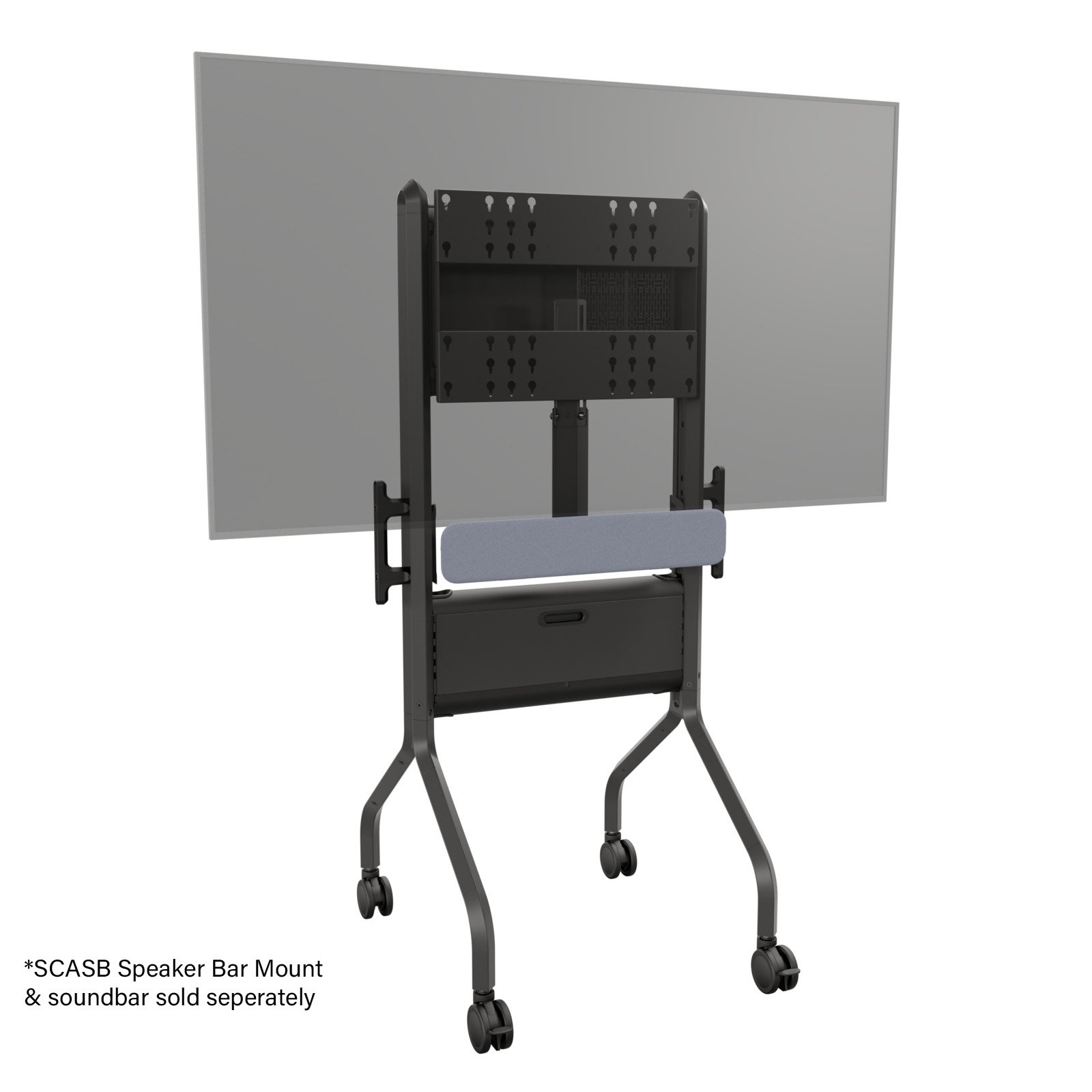

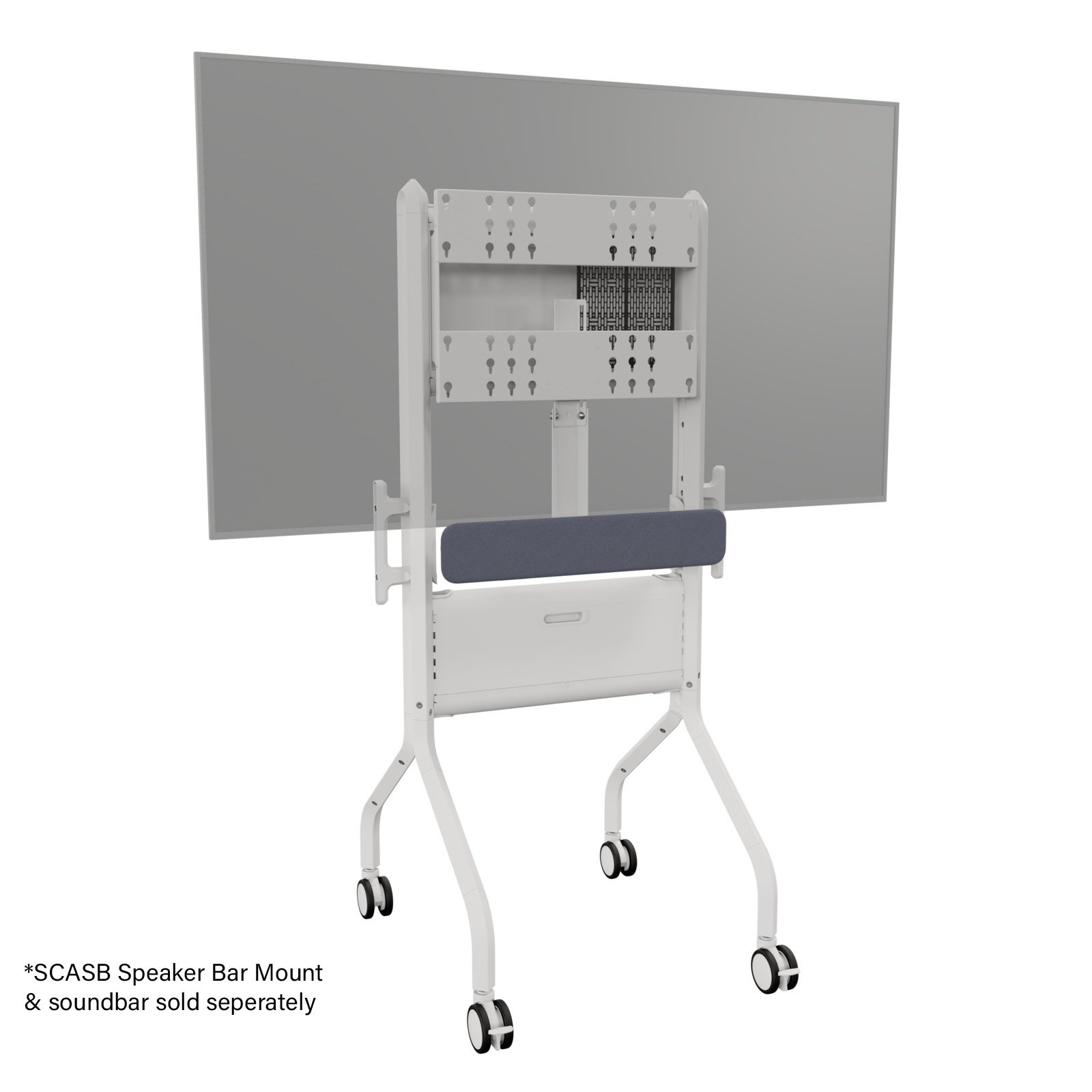

Camera and speaker accessories integrate with a variety of popular conferencing and collaboration technologies

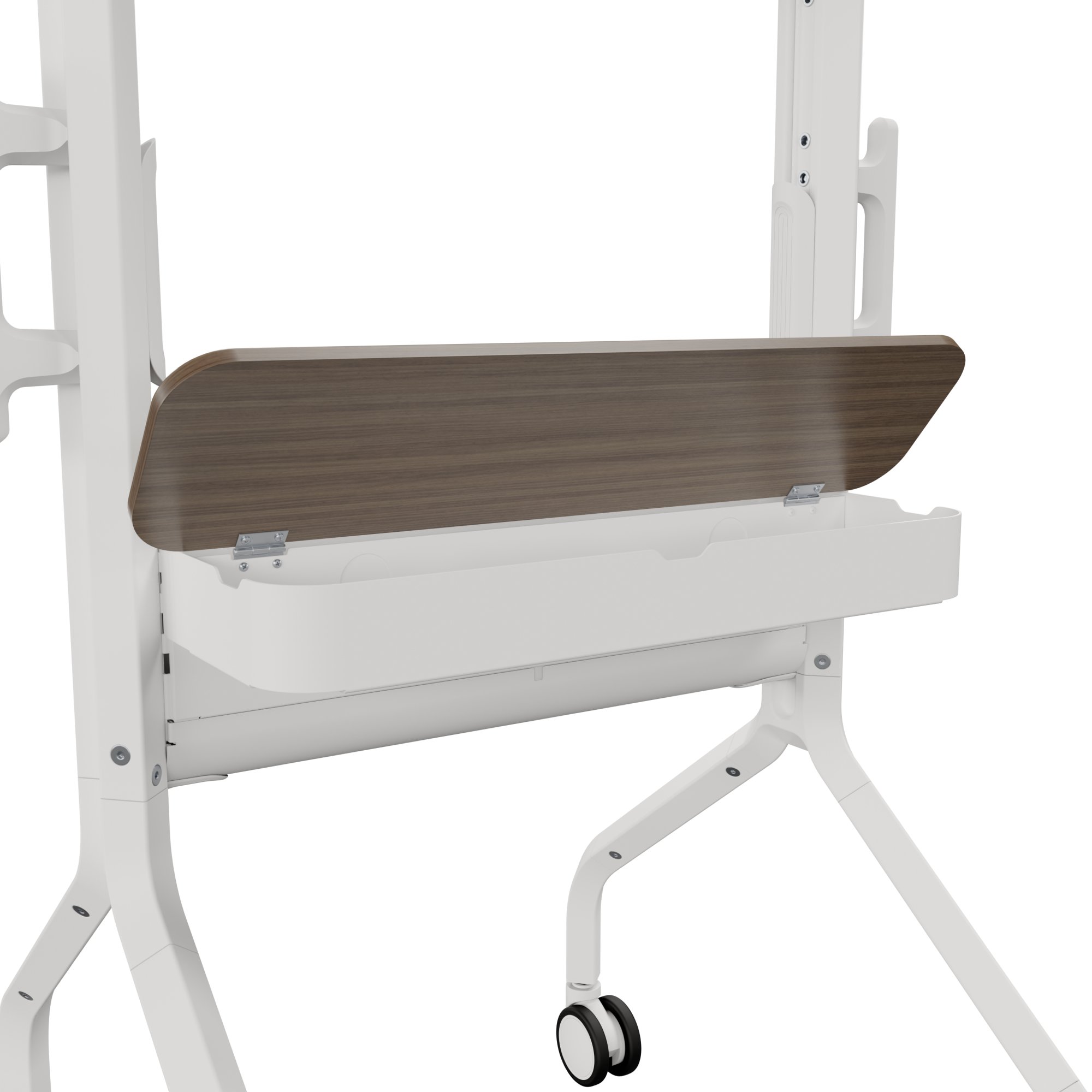

Easily removable panels to conceal AV component storage for clean, attractive installation and cable management

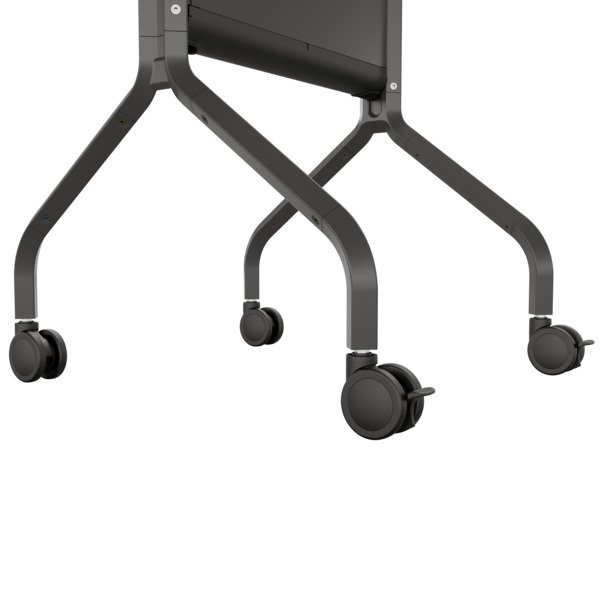

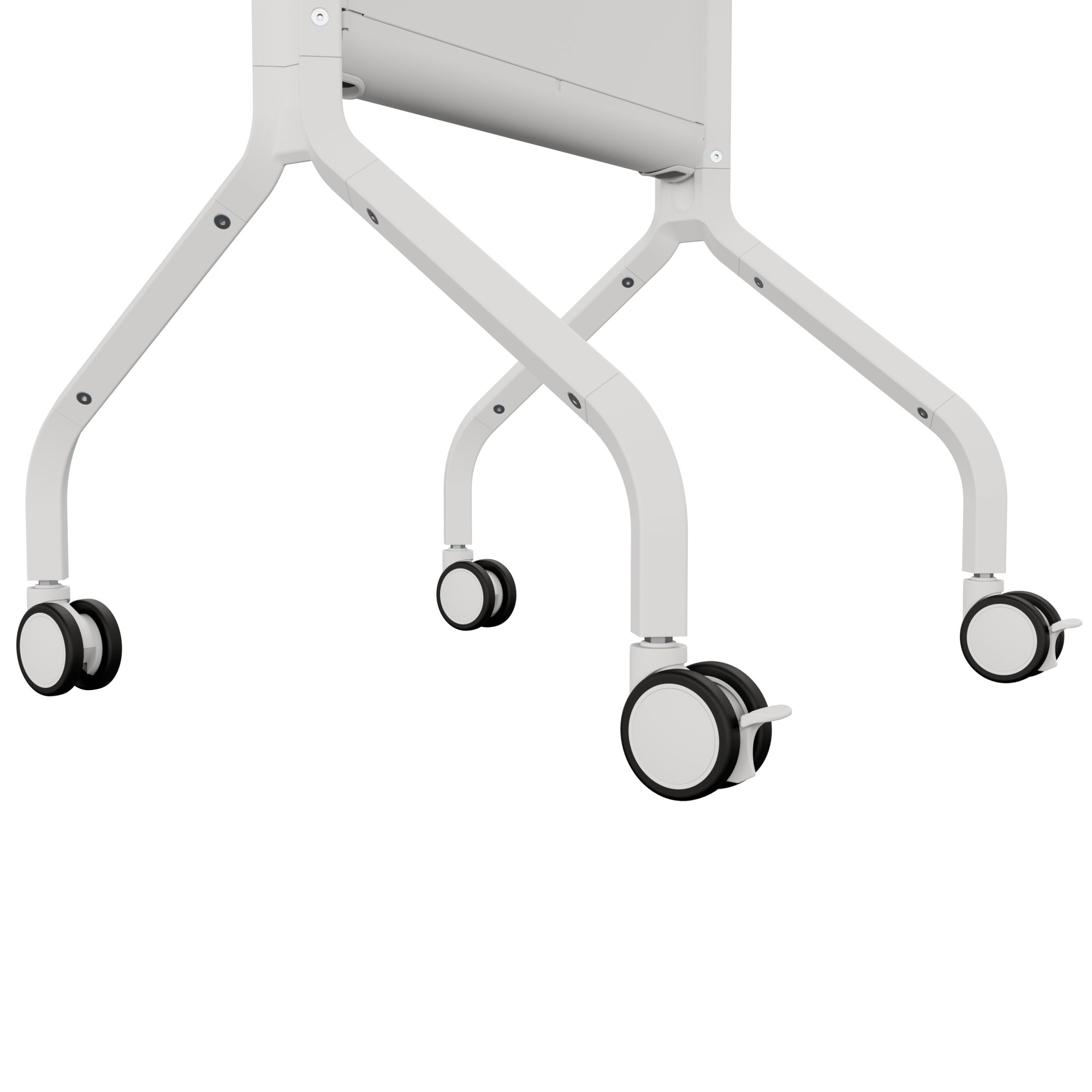

High-quality casters for easy, smooth movement with lockable rear casters
Compact, low-profile footprint and sleek handles promote accessibility to technology and storage

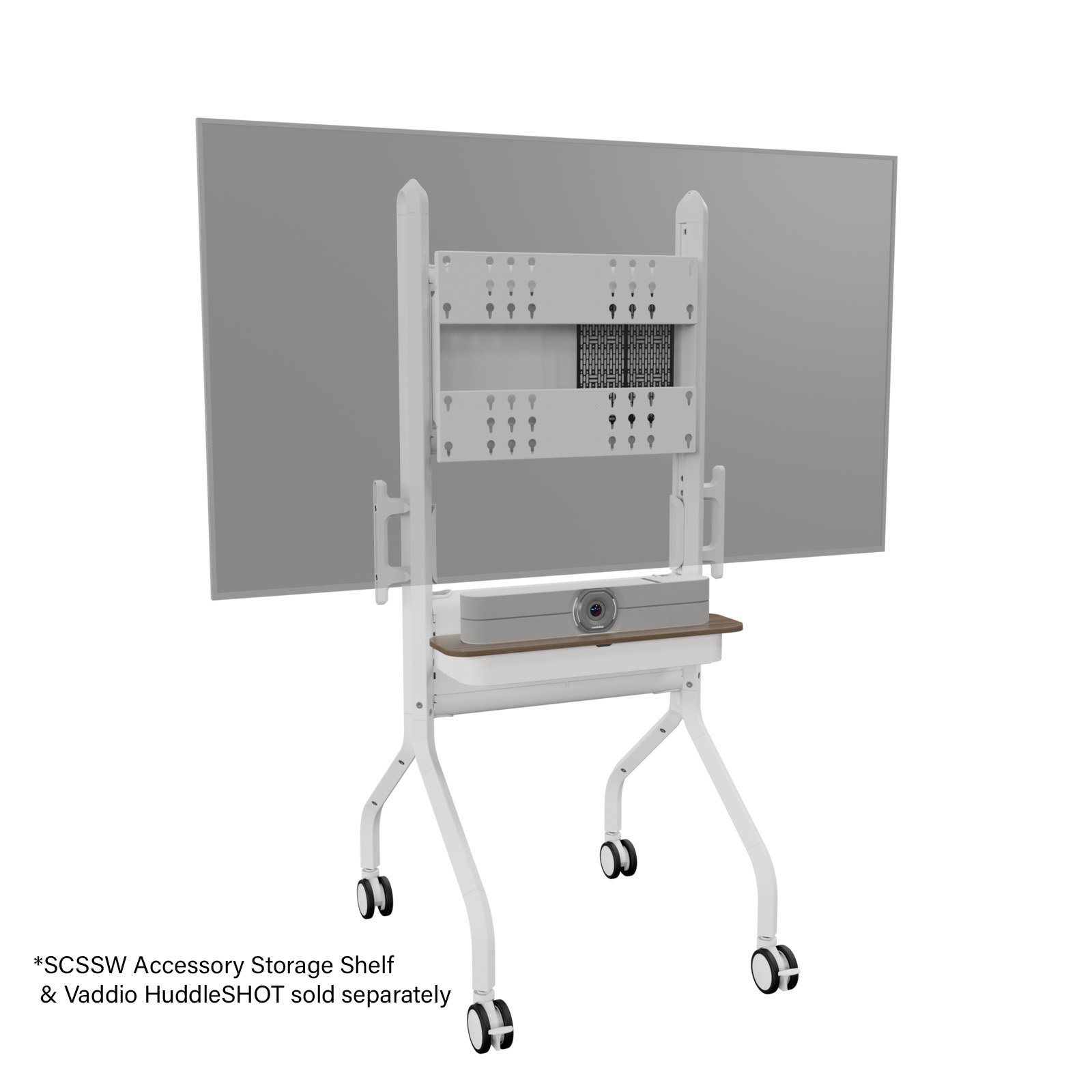

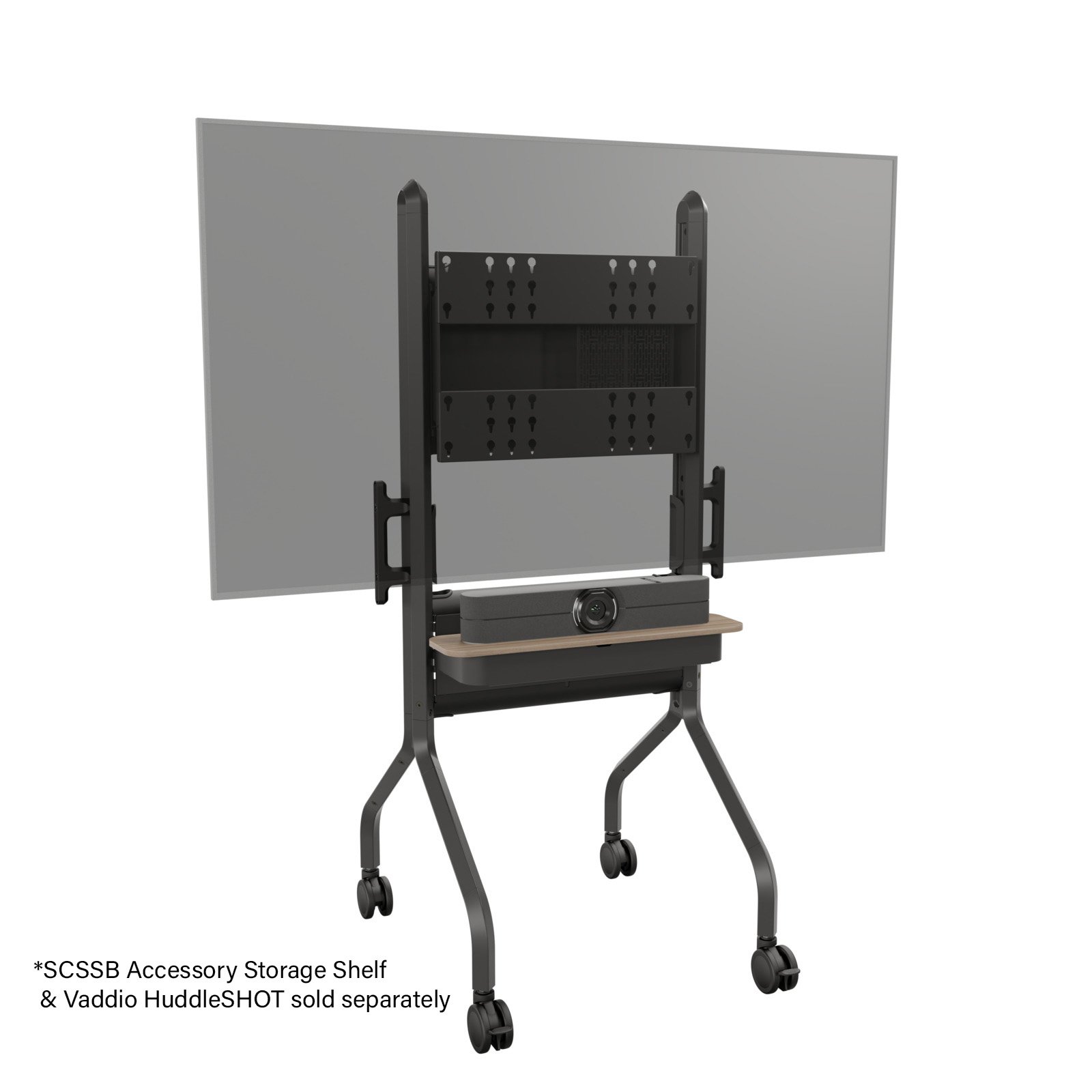

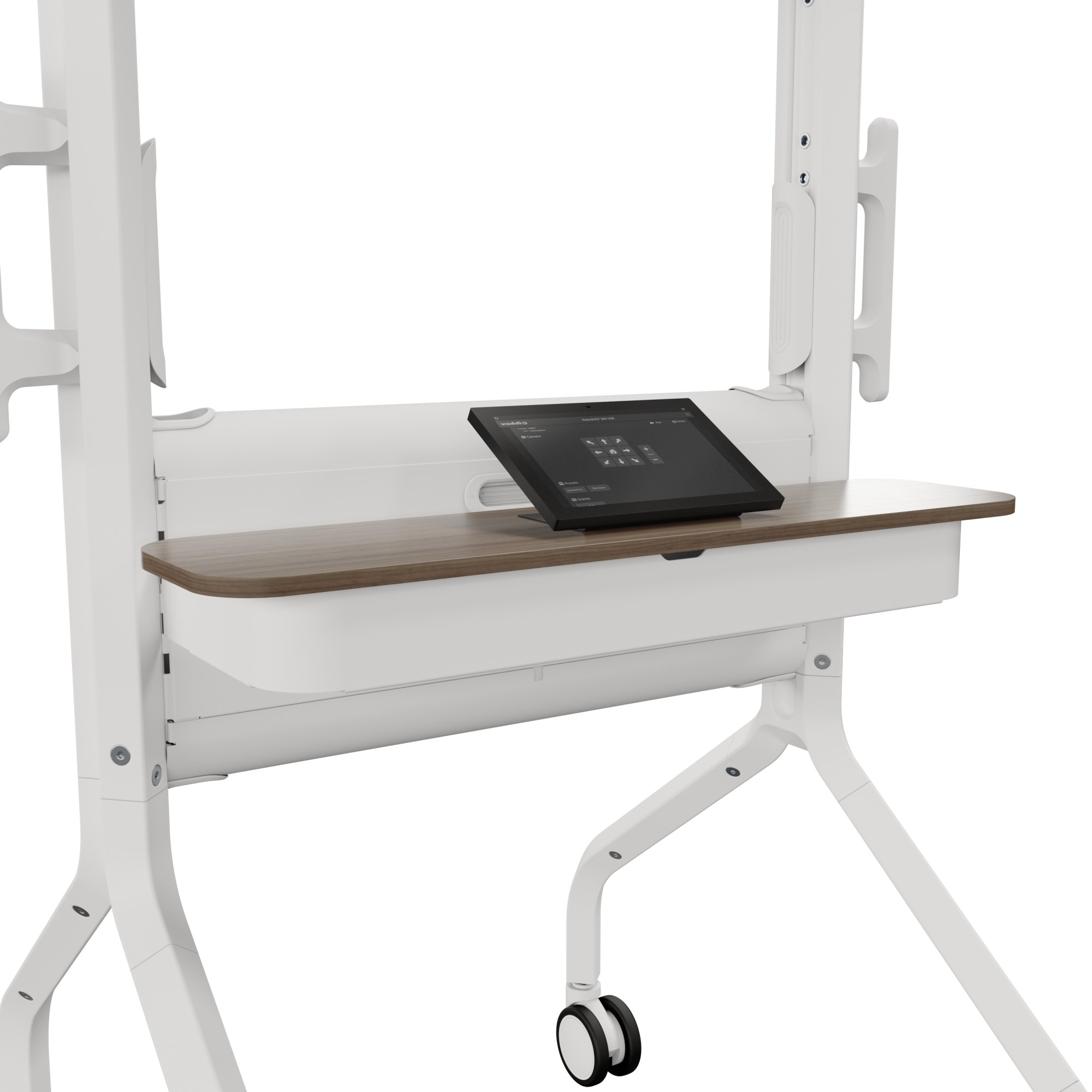

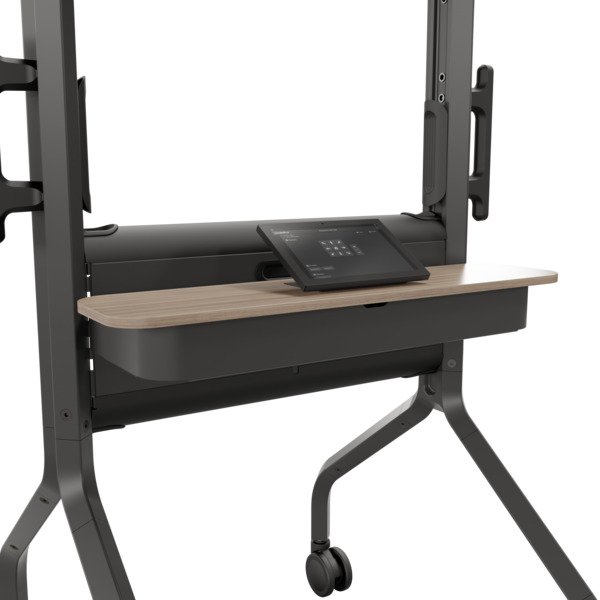

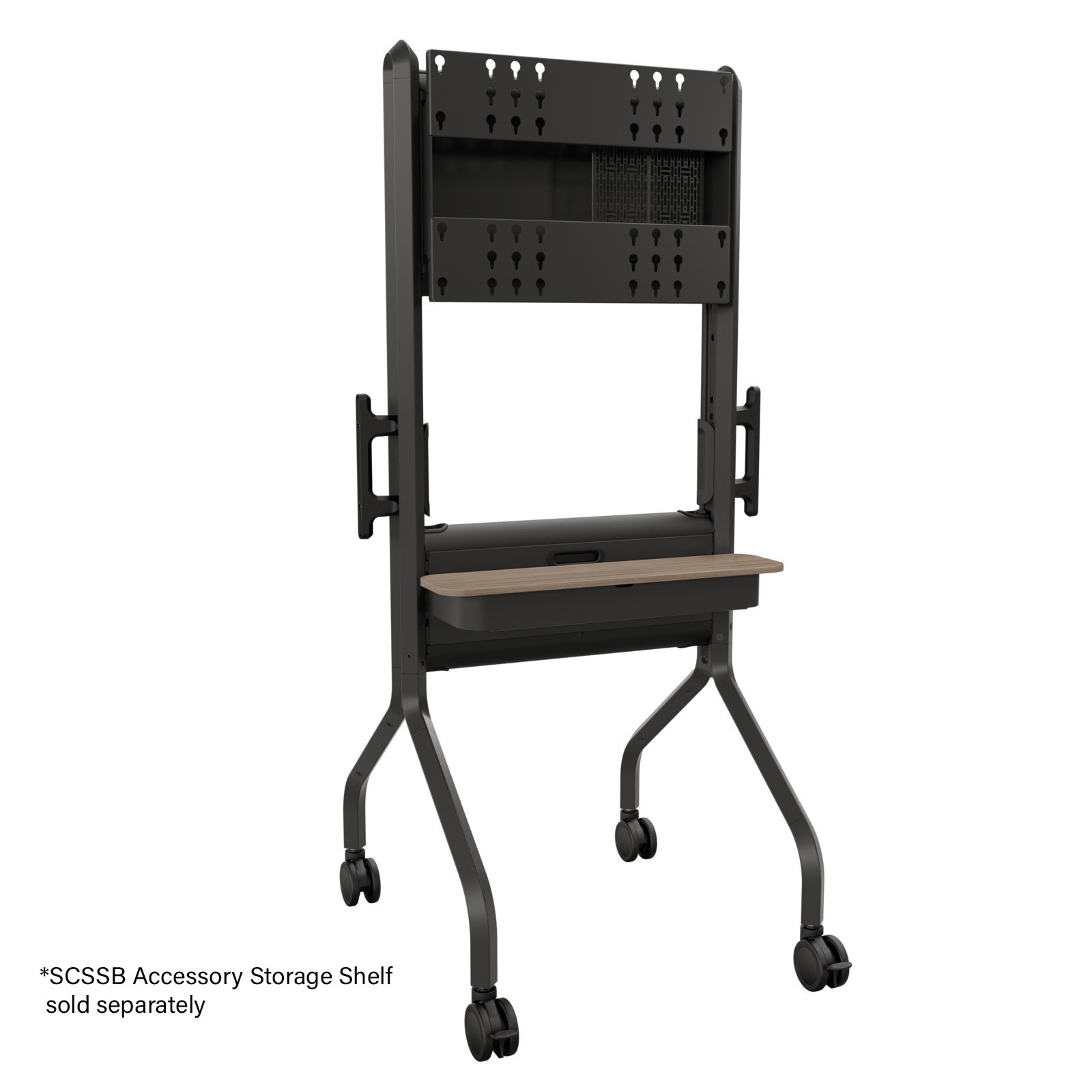

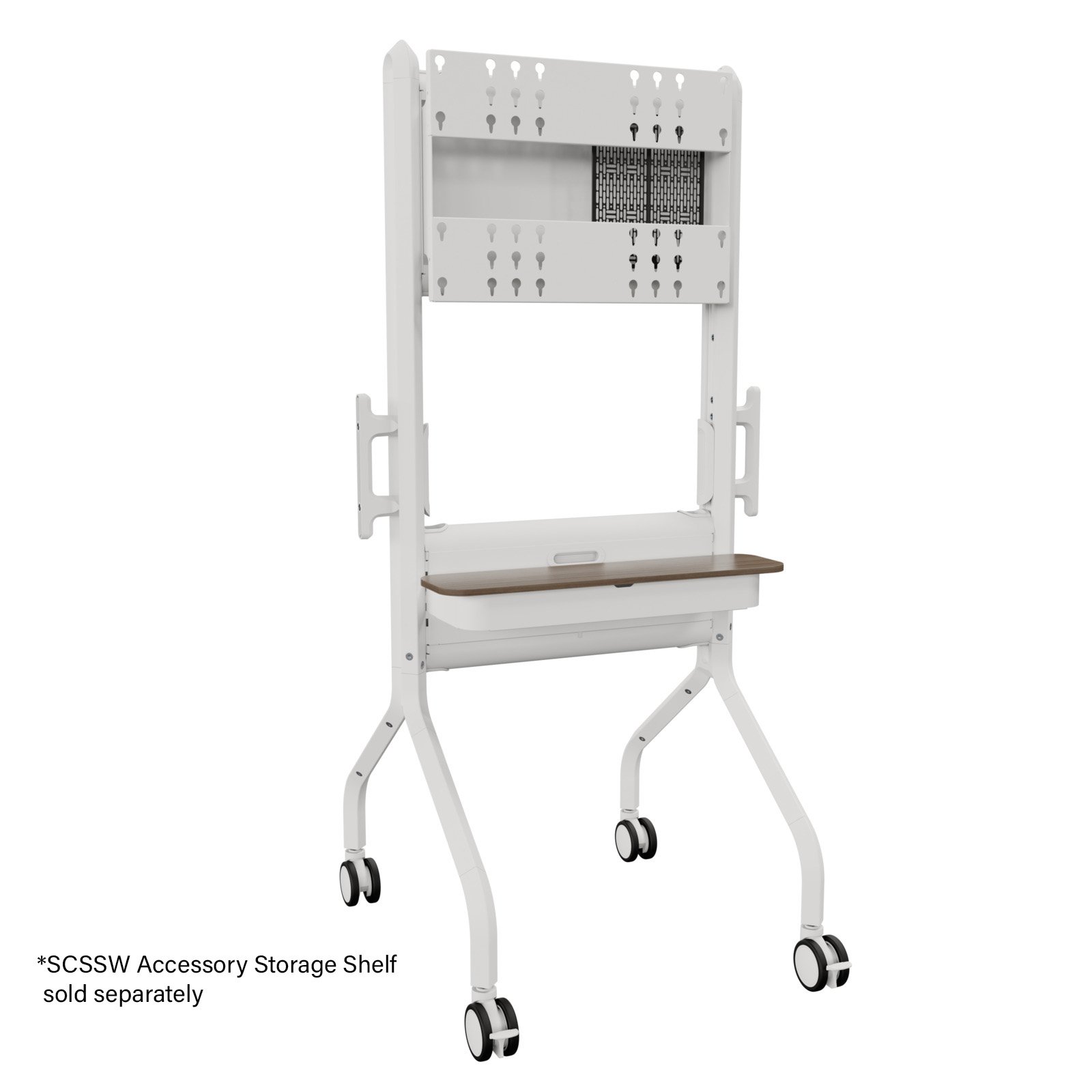

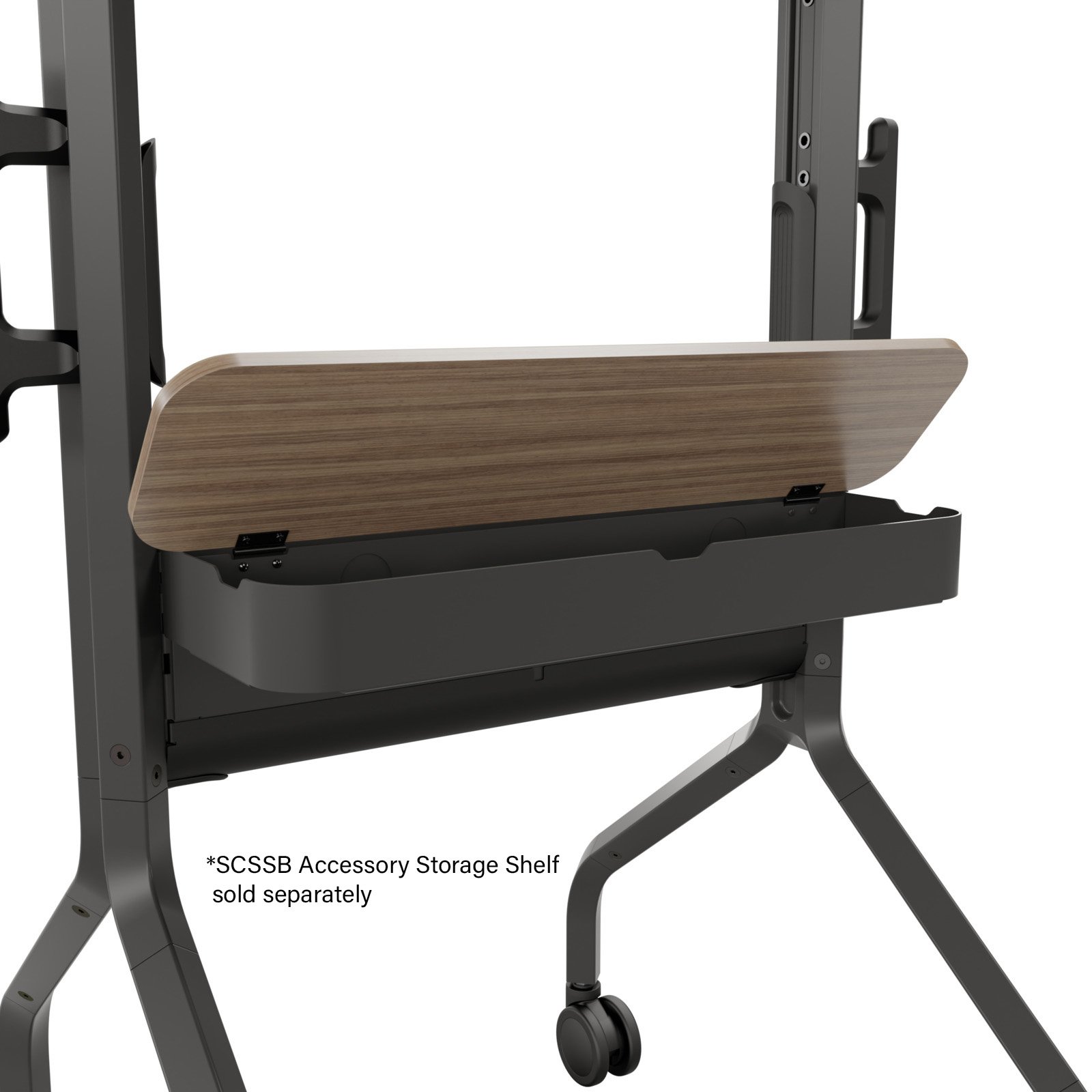

Stylish woodgrain shelf accessory for additional storage SCSSB (sold separately) - can be mounted with tool-free adjustment on front or back of cart.
Installer inspired design for fast, intuitive assembly and installation
Stocked globally for quick shipping
| Model | LSCUB, LSCUW |
| Manufacturer | Chief Mounts |
| Part Number | LSCUB, LSCUW |
| Color | White, Black |
| Center of Display to Floor/Table Range | 50.72" - 60.96" (1288 - 1548 mm) |
| Minimum Depth | 33" (838.7 mm) |
| Mounting Pattern | 200-200mm - 600-400mm VESA |
| Overall Dimensions | 71.26" x 34.8" x 33" (1809.9 x 885.2 x 838.7 mm) |
| Shipping Weight | 136 lbs (61.6 kg) |
| Screen Size | 50-75 in |
| Weight Capacity | 175 lbs (79 kg) |
| Orientation | Landscape, Portrait |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
