$1,170.00

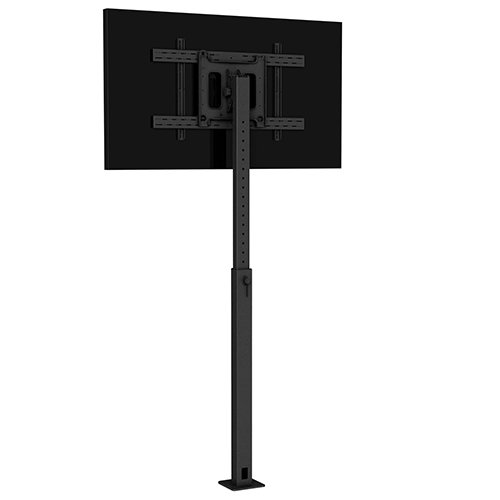

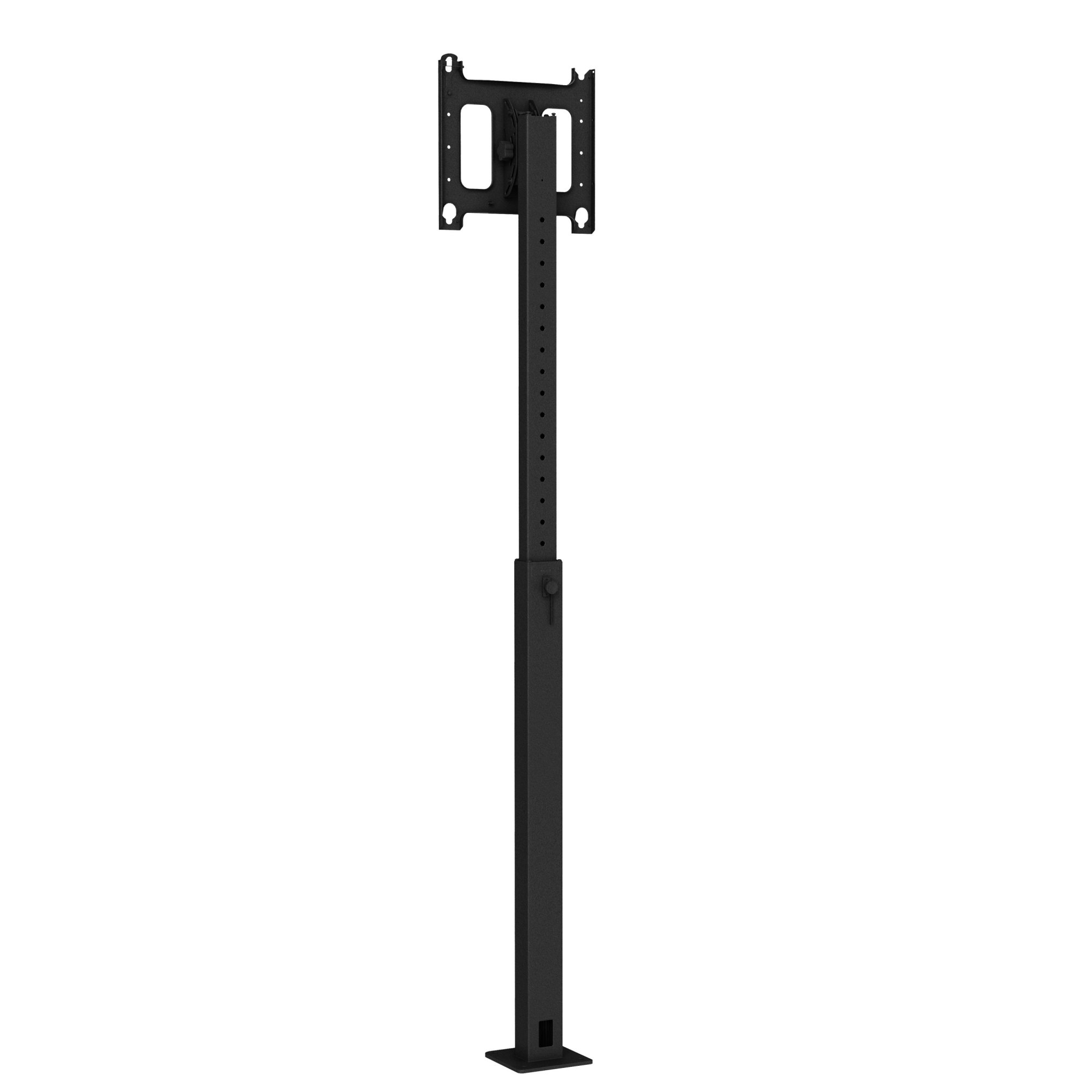

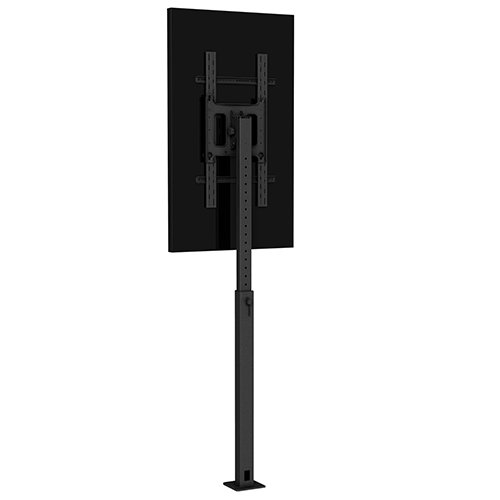

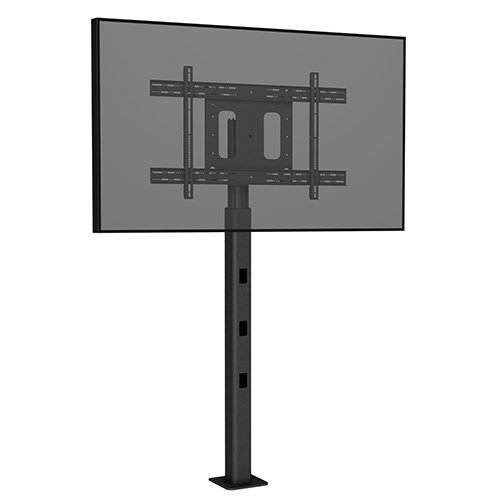

Chief PFB1UB Single Flat Panel Bolt-Down Floor Stand

Product ID 19845
Chief PFB1UB Single Flat Panel Bolt-Down Floor Stand
Chief PFB1UB Single Flat Panel Bolt-Down Floor Stand
Chief PFB1UB Single Flat Panel Bolt-Down Floor Stand
Chief PFB1UB Single Flat Panel Bolt-Down Floor Stand
Chief PFB1UB Single Flat Panel Bolt-Down Floor Stand
Chief PFB1UB Single Flat Panel Bolt-Down Floor Stand
Chief PFB1UB Single Flat Panel Bolt-Down Floor Stand
Chief PFB1UB Single Flat Panel Bolt-Down Floor Stand

Description

Chief PFB1UB small-profile bolt-down solution for displays is great for storefront, digital signage applications. The Q-Latch mount allows for quick changes between portrait and landscape, post installation leveling roll and tilt. The center of the display can be placed between 51.38 to 85.38” (1305 - 2169 mm) from the floor.

Technical Drawing

Technical Drawing for Chief PFB1UB Single Flat Panel Bolt-Down Floor Stand

Specifications

Dimensions & Measurements
Tilt +/- 15°
Typical Screen Size 42 - 75" (1067mm - 1905mm)
Weight Capacity 68.04 kg (150 lbs)
Characteristics & Features
Application Floor-Cart
ColorBlack
Number of Displays 1
OrientationLandscape, Portrait
Post-Installation Leveling Roll Yes
TAA Compliant No
VESA Mounting Pattern 200 x 200 - 860 x 515 mm
Certifications & Warranties
Certifications TUV Certified
UL Listed

Features

  • Small 8 x 8” (203 x 203 mm) footprint

  • Centris Technology provides effortless, fingertip tilt of +/- 15

  • Screen angle stays set in place until you decide to re-adjust

  • Height adjustment without tools between 51.38 to 85.38” (1305 – 2169 mm) from the floor

  • ClickConnect Technology provides an audible click to confirm that the flat panel is locked in place

  • Offers quick connect/disconnect wtih no tools necessary

  • Includes integrated security with the addition of a padlock

  • Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)

  • Integrated cable management to hide cables out of sight

  • Supports both portrait and landscape orientations

Product Options/Accessories

Model PFB1UB
Manufacturer Chief Mounts
Part Number PFB1UB
Color Black
Tilt +/- 15 degree
Monitor Size 42 - 75" (1067mm - 1905mm)
Weight Capacity 68.04 kg (150 lbs)
Application Floor Cart
Orientation Landscape, Portrait
Mounting Pattern VESA 200 x 200 – 860 x 515 mm

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)

Warranty

With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
