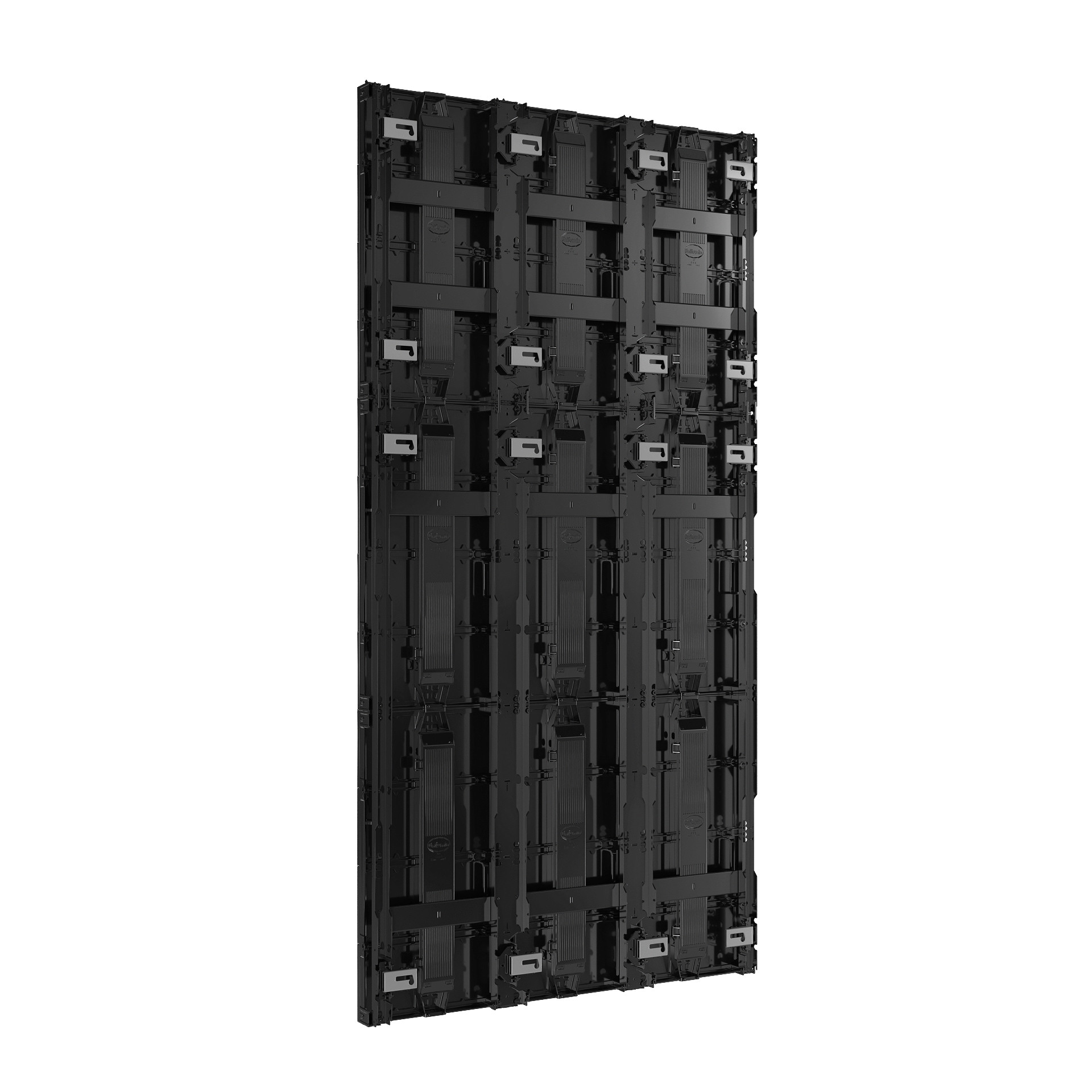

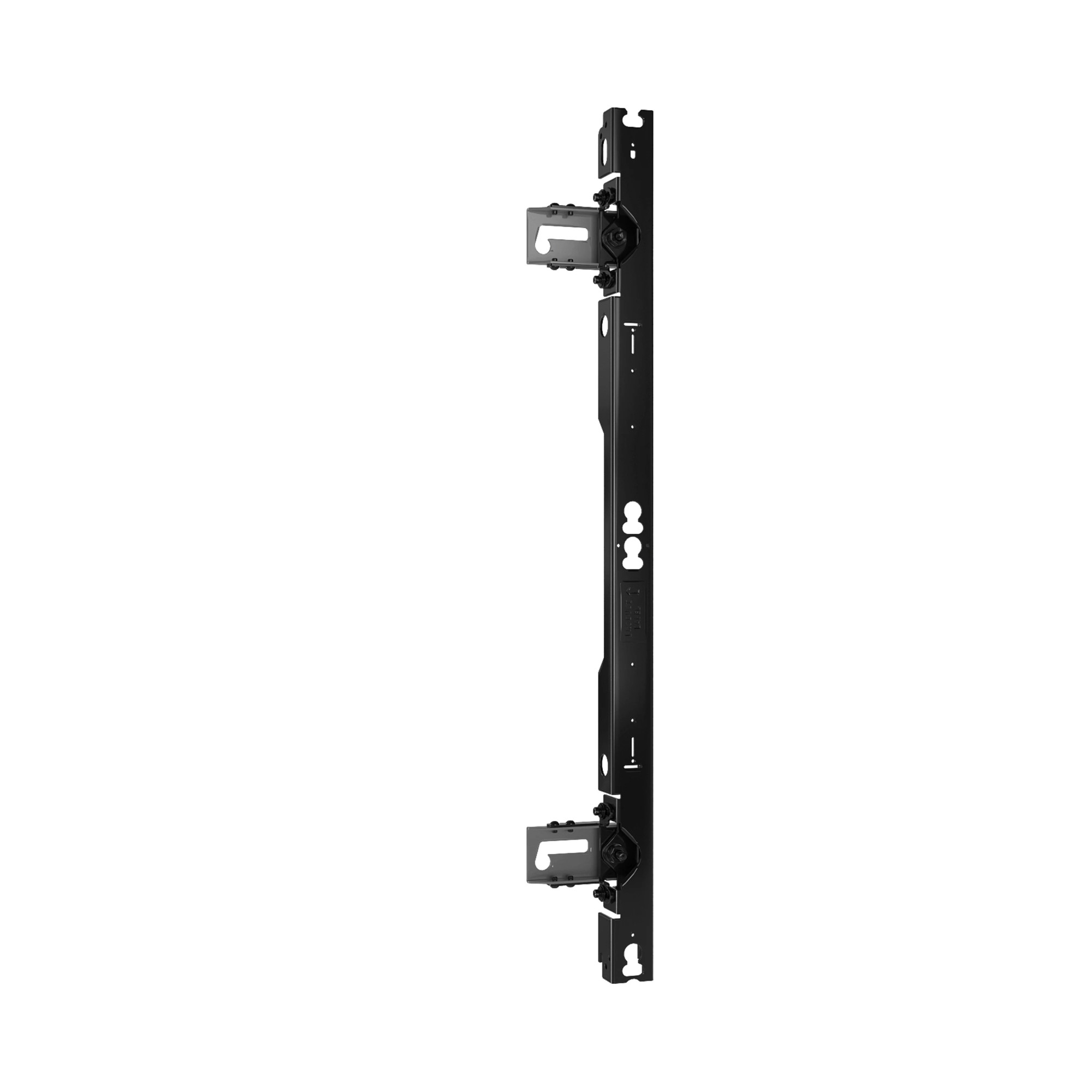

Chief TILD1X2IER-R TiLED Right dvLED Wall Mount for 2 Samsung IER/IEA Displays
Description

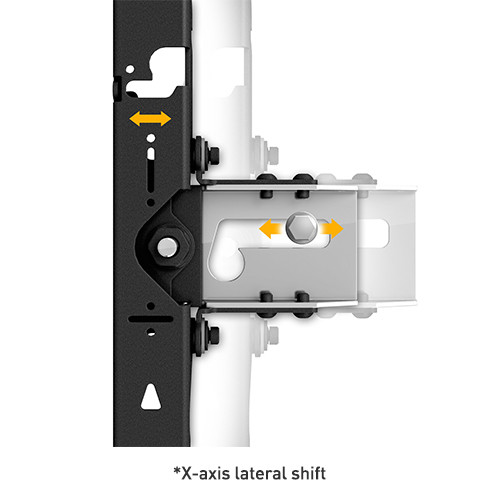

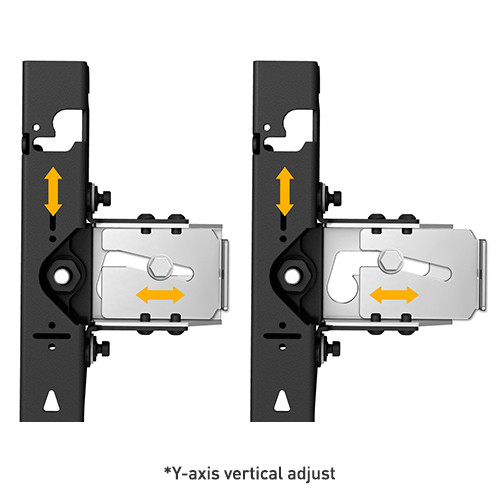

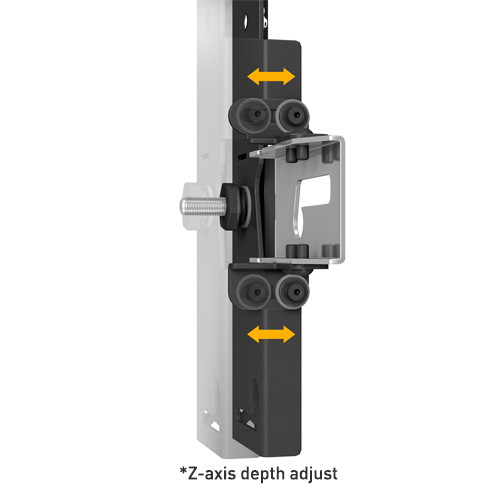

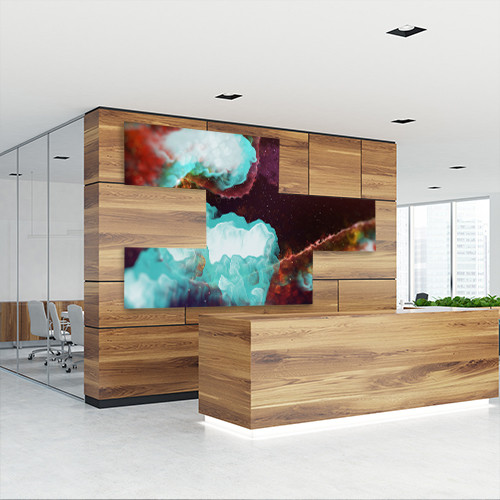

Chief TILD1X2IER-R modular system contains left, middle, and right structural components that can be ordered in 2 high and 3 high lengths to support the Samsung IER/IEA Series. Mix and match a variety of components to create endless video wall configurations. Essential X,Y, and Z-axis adjustments allow perfect positioning and alignment for a flawless video wall. TiLED direct view LED mounting solutions are in stock and ready to ship with no custom lead times or project registration required. Easy to specify, order, and install. Turn your creative vision into a reality.
Compatible with IER015R, IER020R, IER025R, IER040R, IE015R-F, IE020R-F, IE025R-F, IE040R-F, IF015R, IF025R, IF015R-F, IF025R-F, IF015R-E, IF020R-E, IF025R-E, IF040R-E, IF015R-EF, IF020R-EF, IF025R-EF, IF040R-EF, IE015A, IE020A, IE025A, IE040Al, IE015A-F, IE020A-F, IE025A-F, IE040A-F.

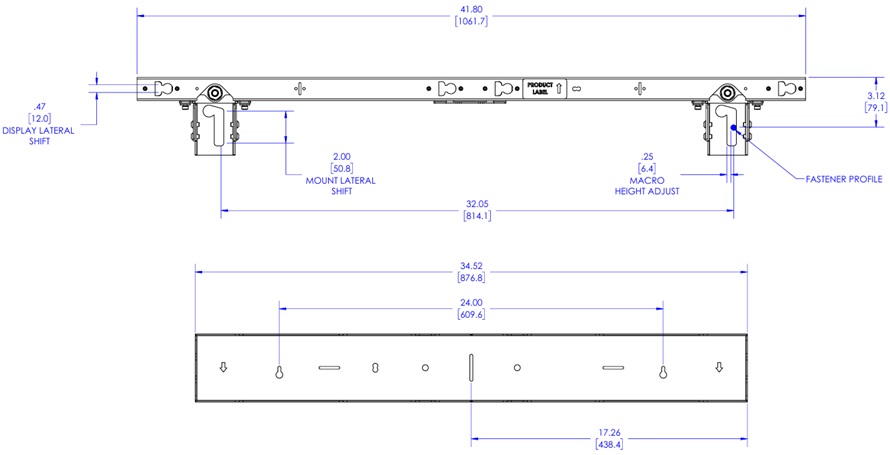

Technical Drawing
Specifications
| Dimensions and Measurements | |
| Equipment Width Range | 5.37" - 6.12" (136mm-156 mm) |
| Shipping Dimensions | 49" x 8.5" x 3.5" (124.5 x 21.6 x 8.9 cm) |
| Shipping Weight | 4.13 kg (9.1 lbs) |
| Weight Capacity | 30 lbs (13.6 kg) |
| Characteristics and Features | |
| Accessory Type |
Installation Mounting Brackets |
| Adjustability |
Fixed Height Adjustable Lateral Shift Micro-Adjustable |
| Application | Wall |
| LED Display Model | Samsung IER/IEA |
| Manufacturer | Samsung |
| Number of Displays | 2 |
| Orientation | Landscape |
| Special Features |
LED Video wall Multi-Display |
| TAA Compliant | No |
Frequently Asked Questions
No FAQs available for this product. Have a question? Ask us!
Product Information
- Model TILD1X2IER-R
- Manufacturer Chief Mounts
- Part Number TILD1X2IER-R
- UPC 841872176574
- Weight 9.1 lb(s)
- Width Range 5.37"-6.12" (136mm-156 mm)
- Shipping Dimensions 49" x 8.5" x 3.5" (124.5 x 21.6 x 8.9 cm)
- Shipping Weight 4.13 kg (9.1 lbs)
- Weight Capacity 30 lbs (13.6 kg)
- Orientation Landscape
- Application Wall
- TAA Compliant No
No reviews yet. Be the first to share your thoughts!
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
