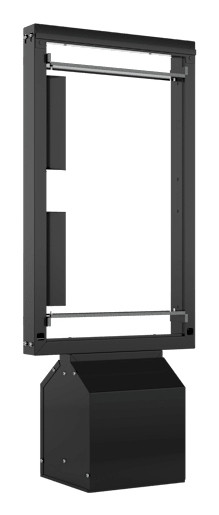

Chief ODMB1X1 Velocity Outdoor Single Pedestal System
Description
Ideal for drive-thru menu boards and wayfinding signage, Chief ODMB1X1 Velocity Outdoor Pedestal System is a modular outdoor digital signage pedestal mount that supports Samsung and LG 55" outdoor displays. Its modular design allows for single, double or triple displays and easily accommodates future expansion. Create a fully integrated solution with optional Speaker Mount and Back Cover accessories.
Designed to evolve
Because of Chief Velocity’s modular design, it’s easy to update menu boards or digital signage displays from a single to a double, or double to triple. This reduces long-term cost of ownership and makes the most of an investment in digital signage.
Fast, easy two-person installation
Chief Velocity is designed for quick setup and requires only two people for installation. No heavy lift equipment is necessary, saving money on equipment rental costs. Simplified French cleat display mounting provides fast, safe installation, with lateral shift for zero bezel-to-bezel gaps. For the owner of a QSR, speedy installation means reduced downtime for their drive through service.
Why we like Chief Velocity
Supports Samsung and LG 55" outdoor displays
Bezel-to-bezel distance between displays optimizes multi-display content, allowing content to be spread across all three displays
Slotted base plate provides 15° of rotational positioning flexibility to adjust customer viewing angles
Optional Speaker Mount Accessory can be mounted to the left or right of the display
Open back design provides easy access for maintenance
Site security - tamper-resistant security screws which prevent vandalism
Outdoor rated finish meets UL 2442 Part 2 requirements
Stands up to extreme weather conditions - wind-tested to 140 mph
Off-the-shelf, inventoried product for quick lead times allows for install in less than two weeks
Competitive standard product pricing - no waiting for custom quotes
Ships on a 40” x 48” pallet - convenient for smaller receiving docks and reduced shipping costs
UL Listed
Five-year warranty

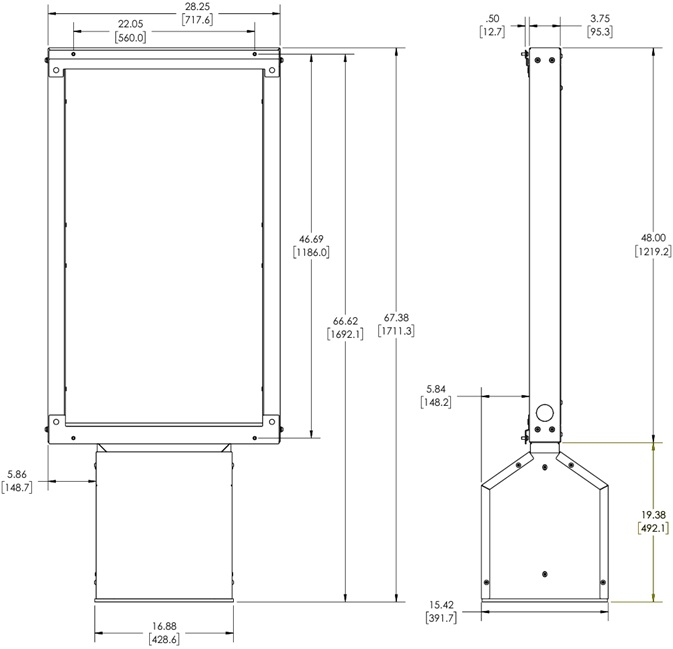

Technical Drawing
Specifications
| Dimensions and Measurements | |
| Internal Device Mounting Dimensions | 15.34" x 16.37" x 17.76" (390 x 416 x 451 mm) Mounting Plates: 16.18" x 7.6" (411 x 193 mm) |
| Overall Dimensions |
15.336” x 28.25” x 67.375” (390 x 718 x 1711 mm) 15.336” x 56.5” x 67.375” (390 x 1435 x 1711 mm) 15.336” x 84.75” x 67.375” (390 x 2153 x 1711 mm) 16.875” x 15.371” x 19.375” (428.625mm x 390.423mm x 492.125mm) 48" x 28.25" x 3.75" (1219.2 x 717.55 x 95.25 mm) |
| Typical Screen Size | 55" (1397mm) |
| Weight Capacity |
150 lbs (68 kg) per frame 200 lbs (90.72 kg) per frame and 343 lbs (155.58 kg) per side 20 lbs (9.07 kg) per panel and 948 lbs (430 kg) Maximum |
| Characteristics & Features | |
| Color | Black |
| Orientation | Portrait |
| Product Configuration |
Dual Display Modular Base Modular Frame Single Display Triple Display |
| VESA Mounting Pattern | 560" x 1186" |
| Certifications & Warranties | |
| Certifications | UL Listed |
Frequently Asked Questions
No FAQs available for this product. Have a question? Ask us!
Product Information
- Model ODMB1X1
- Manufacturer Chief Mounts
- Part Number ODMB1X1
- Weight 127 lb(s)
- Overall Dimensions 15.336" x 28.25" x 67.375" (390 x 718 x 1711 mm)
- Dimensions Internal Device: 15.34" x 16.37" x 17.76" (390 x 416 x 451 mm) Mounting Plates: 16.18" x 7.6" (411 x 193 mm)
- Monitor Size 55" (1397mm)
- Weight Capacity 150 lbs (68 kg) per frame
- Color Black
- Orientation Portrait
- VESA 560" x 1186"
- Certifications UL Listed
