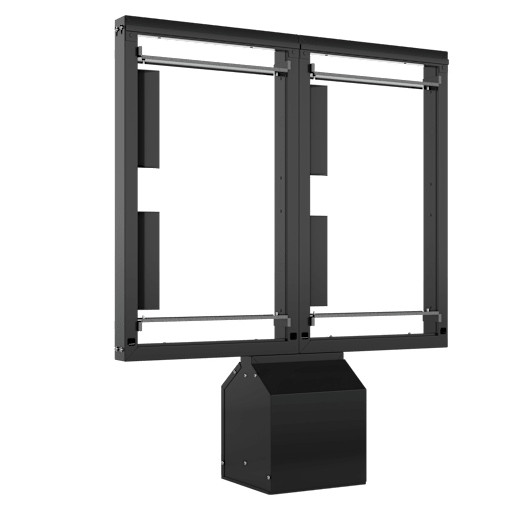

Chief ODMB2X1 Velocity Outdoor Dual Pedestal System
Description
Ideal for drive-thru menu boards and wayfinding signage, the Chief ODMB2x1 Velocity Outdoor Pedestal System is a modular outdoor digital signage pedestal mount that supports Samsung and LG 55" outdoor displays. Its modular design allows for single, double or triple displays and easily accommodates future expansion. Create a fully integrated solution with optional Speaker Mount and Back Cover accessories.
Designed to evolve
Because of Chief Velocity’s modular design, it’s easy to update menu boards or digital signage displays from a single to a double, or double to triple. This reduces long-term cost of ownership and makes the most of an investment in digital signage.
Fast, easy two-person installation
Chief Velocity is designed for quick setup and requires only two people for installation. No heavy lift equipment is necessary, saving money on equipment rental costs. Simplified French cleat display mounting provides fast, safe installation, with lateral shift for zero bezel-to-bezel gaps. For the owner of a QSR, speedy installation means reduced downtime for their drive through service.
Why we like Chief Velocity
Supports Samsung and LG 55" outdoor displays
Bezel-to-bezel distance between displays optimizes multi-display content, allowing content to be spread across all three displays
Slotted base plate provides 15° of rotational positioning flexibility to adjust customer viewing angles
Optional Speaker Mount Accessory can be mounted to the left or right of the display
Open back design provides easy access for maintenance
Site security - tamper-resistant security screws which prevent vandalism
Outdoor rated finish meets UL 2442 Part 2 requirements
Stands up to extreme weather conditions - wind-tested to 140 mph
Off-the-shelf, inventoried product for quick lead times allows for install in less than two weeks
Competitive standard product pricing - no waiting for custom quotes
Ships on a 40” x 48” pallet - convenient for smaller receiving docks and reduced shipping costs
UL Listed
Five-year warranty
Mounting Method: Concrete Mount Via Threaded Rod or Wedge Anchors

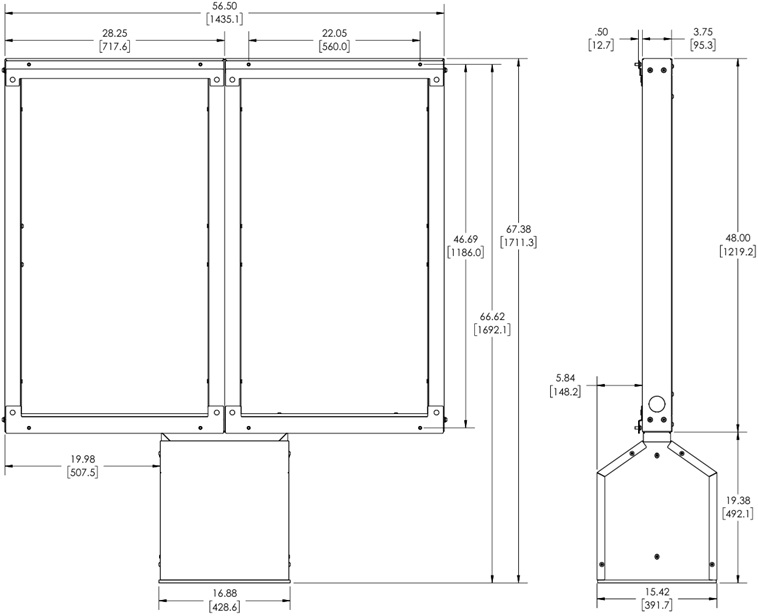

Technical Drawing
Specifications
| Dimensions and Measurements | |
| Internal Device Mounting Dimensions | 15.34” x 16.37” x 17.76” (390 x 416 x 451 mm) Mounting Plates: 16.18” x 7.6” (411 x 193 mm) |
| Overall Dimensions | 15.336” x 56.5” x 67.375” (390 x 1435 x 1711 mm) |
| Typical Screen Size | 55" (1397mm) |
| Weight Capacity | 150 lbs (68 kg) per frame |
| Characteristics and Features | |
| Color | Black |
| Orientation | Portrait |
| Product Configuration | Dual Display |
| VESA Mounting Pattern | 560" x 1186" |
| Certifications and Warranties | |
| Certifications | UL Listed |
Frequently Asked Questions
No FAQs available for this product. Have a question? Ask us!
Product Information
- Model ODMB2X1
- Manufacturer Chief Mounts
- Part Number ODMB2X1
- UPC 841872178776
- Weight 189 lb(s)
- Dimensions Internal Device Mounting: 15.34" x 16.37" x 17.76" (390 x 416 x 451 mm) Mounting Plates: 16.18" x 7.6" (411 x 193 mm)
- Overall Dimensions 15.336" x 56.5" x 67.375" (390 x 1435 x 1711 mm)
- Monitor Size 55" (1397mm)
- Weight Capacity 150 lbs (68 kg) per frame
- Color Black
- Orientation Portrait
- Mounting Pattern VESA 560" x 1186"
- Certifications UL Listed
No reviews yet. Be the first to share your thoughts!
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
