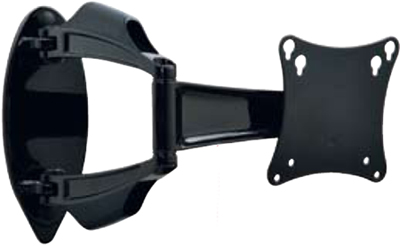

Peerless SA730P SmartMount Articulating Wall Mount

Be the first to review this product
Product ID: 14477
Recommended Accessories
List Price: $129.00
Our Price: $86.79
Shipping: $9.50 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States

Description

The SmartMount Articulating Wall Mount series offers the most versatile installation features and mounting options. With peerless SA730P, extend the display up to 16.99" (432mm) or fully-retract it to just 2.77" (70mm) from the wall for the perfect viewing position. The display can now simply be installed by a single person with the Hook-and-Hang system. One-Touch tilt technology offers ±35° vertical tilt movement for the ideal viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation

Helpful Hints: Full-motion capabilities allow you to swivel, tilt, extend or retract your display for the perfect viewing angle.

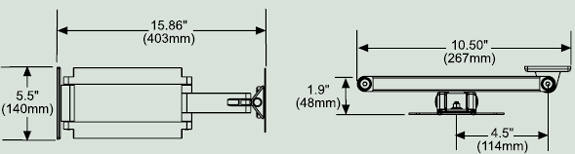

Technical Drawing

Technical drawing for
Peerless SA730P SmartMount Articulating Wall Mount for 10

Specifications

Color Black
Finish High Gloss
Minimum to Maximum Screen Size 10" to 29"
VESA Pattern 75 x 75, 100 x 100
Weight Capacity 25 lbs (11.0kg)
Distance from Wall 2.77 - 16.06" (56 - 408mm)
Mounting Pattern

75 x 75, 100 x 100mm (2.95 x 2.95, 3.94 x 3.94")

Roll

+7 / -7 degree

Security Features Non-Security Hardware
Swivel Yaw +90 / -90 degree
Tilt +35 / -35 degree
Package Contents
  • Wall mount
  • Wall and display installation hardware
  • Installation instructions
Product Dimensions

10.01" x 8.06" x 2.77"-16.99" (254 x 205 x 70-432mm)

Product Weight 3.55 lbs (1.61kg)
Shipping Dimensions

14.13" x 3.75" x 10.38" (358 x 95 x 263mm)

Shipping Weight 4.75 lbs (2.15kg)
UPC Code 735029237389

Features

  • Includes all necessary wall and display attachment hardware

  • Design is UL listed and tested to four times stated load capacity

  • Landscape or portrait mounting options increases display versatility

  • Easy leveling ±5° after display installation

  • Quick and easy, Hook-and-Hang one-person installation

  • ±90° of pivot allows for perfect display positioning

  • Retracts to hold display just 2.77" (70mm) from the wall

Product Options/Accessories

Peerless ACC918 Security Fasteners for VESA 75, 100 and 200x100 Peerless ACC918 Security Fasteners $9.95
Model SA730P
Manufacturer Peerless Mounts
Part Number SA730P
UPC 735029237389
Color Black
Finish High Gloss
Monitor Size 10" to 29"
Weight Capacity 25 lbs (11.0kg)
Distance From Wall 2.77 - 16.06" (56 - 408mm)
Mounting Pattern 75 x 75, 100 x 100mm (2.95 x 2.95, 3.94 x 3.94")
Roll +7 / -7 degree
Swivel +90 / -90 degree
Tilt +35 / -35 degree
Dimensions 10.01" x 8.06" x 2.77"-16.99" (254 x 205 x 70-432mm)
Weight 3.55 lbs (1.61kg)
Shipping Dimensions 14.13" x 3.75" x 10.38" (358 x 95 x 263mm)
Shipping Weight 4.75 lbs (2.15kg)
Warranty Limited 5 year
Number of Monitors 1 Monitor
Mounting Options Wall
