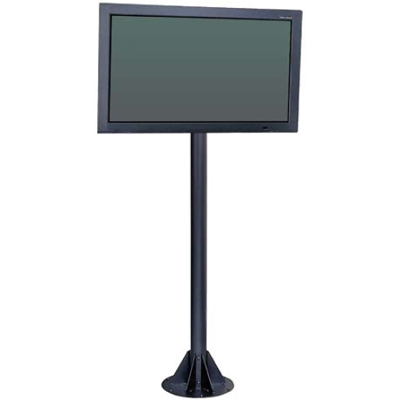

Peerless COL510P Floor Stand Pedestal Mount for 32 to 50 inch Screens

Requires screen-specific adapter to be purchased separately

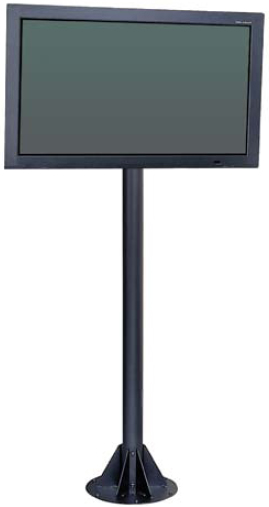

Peerless COL510P Floor Stand Pedestal Mount for 32"-50" LCD and Plasma Screens COL 510P

Dimensional Diagram for Peerless COL510P Pedestal Mount COL 510P

The Flat Panel Pedestal offers the perfect floor standing solution for plasmas and large LCD screens in retail environments, sports arenas, airports and auditoriums. It delivers 360° of swivel and 15° of forward tilt. The screen can be rotated from landscape to portrait. The pedestal comes in four different heights and is to be used in conjunction with Peerless' PLP screen adapter plates.

Features:

• Choice of 5', 6', 7' or 8' pedestal height
• Concrete floor anchors included
• 360 degree swivel with swivel stop
• 0-15 degree tilt for viewing flexibility
• Screen can be mounted either horizontally or vertically. Screen can be changed from landscape to portrait orientation without screen removal
• Screen orientation can be easily adjusted after installation
• Internal cord management
• Pedestal used in conjunction with plasma bracket (purchased separately)
• Black scratch resistant finish

Details Product Information:

Screen Adapter:

Dedicated Models:

Requires screen-specific adapter to be purchased separately

Product Specifications

Dimensions (W x H x D):

COL510P: 15" x 68.15" x 14.48" (38.1 x 173.1 x 36.8 cm)

COL610P: 15" x 80.15" x 14.48" (38.1 x 203.6 x 36.8 cm)

COL710P: 15" x 92.15" x 14.48" (38.1 x 234.1x 36.8 cm)

COL810P: 15" x 104.15" x 14.48" (38.1 x 264.5 x 36.8 cm)

Maxi Load Capacity:

150 lb (68 kg)

Tilt:

15°

Swivel:

360°

Available Color:

Black

Accessories:

ACC833: Equipment Accessory Shelf

Package Specifications

Mounting Surfaces:

Concrete

Package Ship Weight

COL510P: Box 1: 16.40 lb (7.42 kg) Box 2: 25.20 lb (11.44 kg)

COL610P: Box 1: 19.15 lb (8.65 kg) Box 2: 25.20 lb (11.44 kg)

COL710P: Box 1: 23.25 lb (11.50 kg) Box 2: 25.20 lb (11.44 kg)

COL810P: Box 1: 26.15 lb (11.86 kg) Box 2: 25.20 lb (11.44 kg)

Warranty

Limited 5-year

Additional Images:
