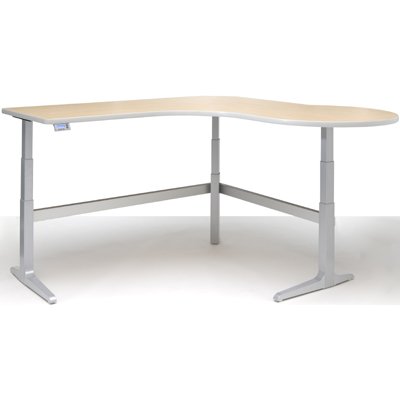

WorkRite Sierra SE72374824X Electric P Peninsula Height Adjustable Desk and Workcenter

General Information

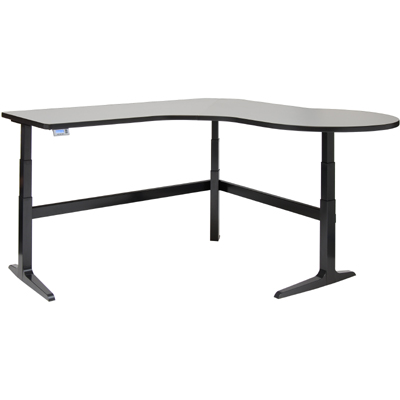

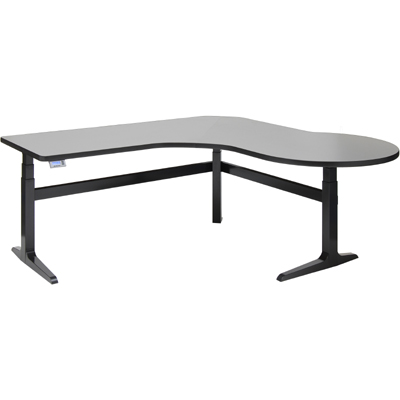

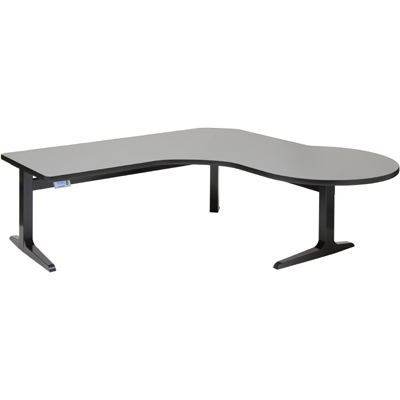

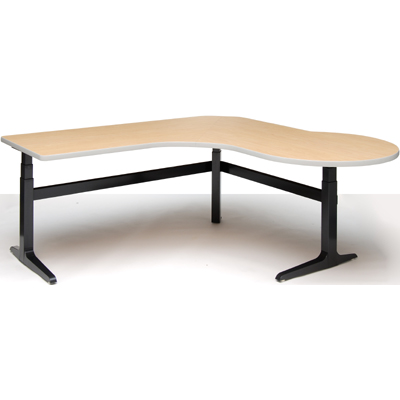

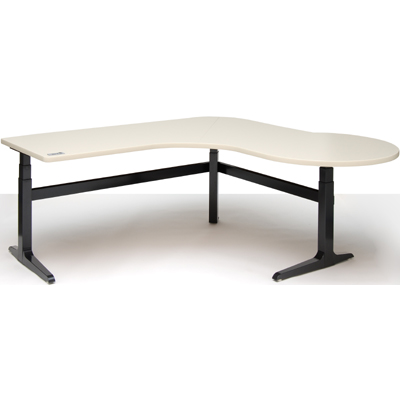

WorkRite Sierra Electric SE72374824X P Peninsula 3 Legs Adjustable Height Workstation

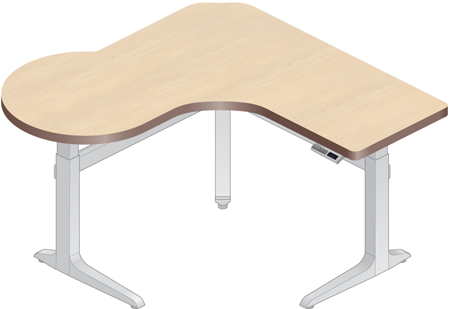

WorkRite Sierra Electric P Peninsula 3 Legs Adjustable Height Workstation

Workrite Sierra Workcenter Description

Features:

Adjusts from 22" - 48" at 2" per second
Two piece thermofoil top, two piece laminate top if right/left width greater than 48"
Specify position of up/down control switch with 3 memory presets - under front edge of worksurface (U) or on right/left front corner of table top (A)
Load capacity 250 lbs.

The single solution for a varied workforce:
The increased diversity of today's workforce heightens the need to provide workcenters that meet the requirements for the entire range of body shapes and sizes. Only Sierra provides 5th - 95th percentile height adjustability for the complete worksurface. Sierra is the only workcenter whose entire working surface - not just a keyboard platform can be raised or lowered to meet the ANSI/BIFMA height range requirements.

Strength in numbers:
A smooth and powerful, yet quiet, computer controlled motor moves the workcenter at 2 inches per second, quickly making the transition from seated to standing position heights.

A sleek profile that works everywhere:
With its transitional styling, wide range of available shapes and silver or charcoal metal finish, the Sierra will adapt to virtually any office environment.

Advanced Controls:
Sierra features an exclusive backlit LCD control panel with tactile soft-touch control buttons and 3 programmable memory height presets. Panel mounts on or under worksurface.

Exclusive backlit LCD control panel

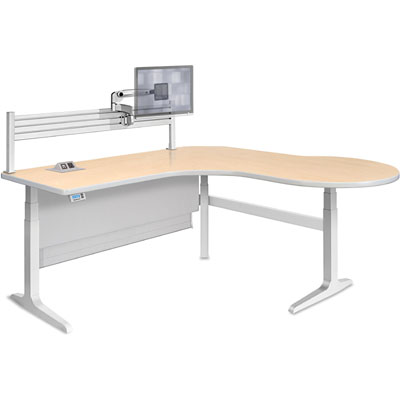

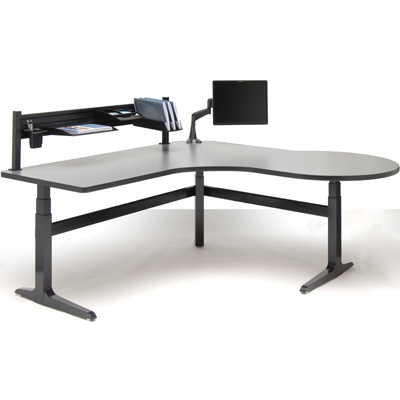

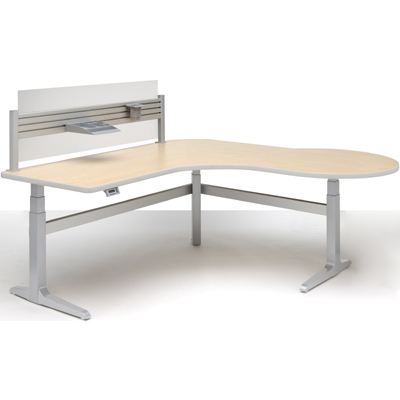

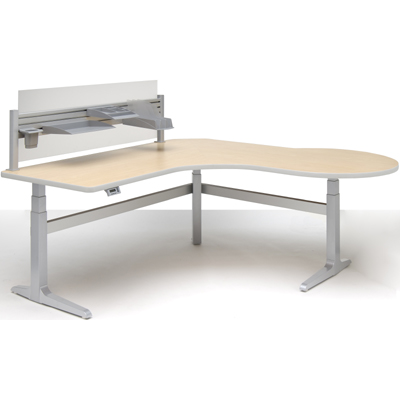

Tool Bar and Privacy Panel:

Make your workcenter work for you with our complete line of accessories, mounted to our stylish tool bar or privacy panel.

Tool Bar and Privacy Panel

Extended Range:
Sierra's electric worksurface adjusts from 22.0" - 48.0", smoothly and quietly at a rate of 2" per second, with a lifting capacity of 250 lbs.

Extended Range

Option 1 and 2: Choose your Desk Top Position and Surface Dimensions:

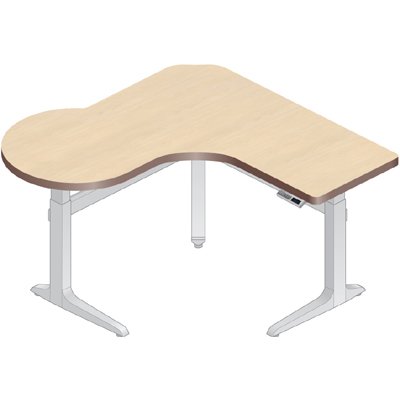

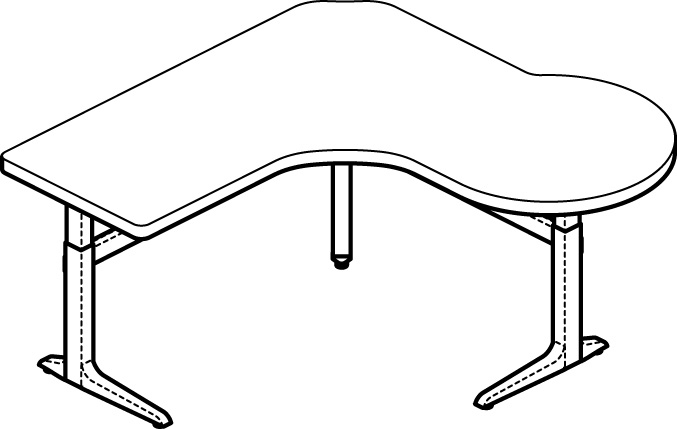

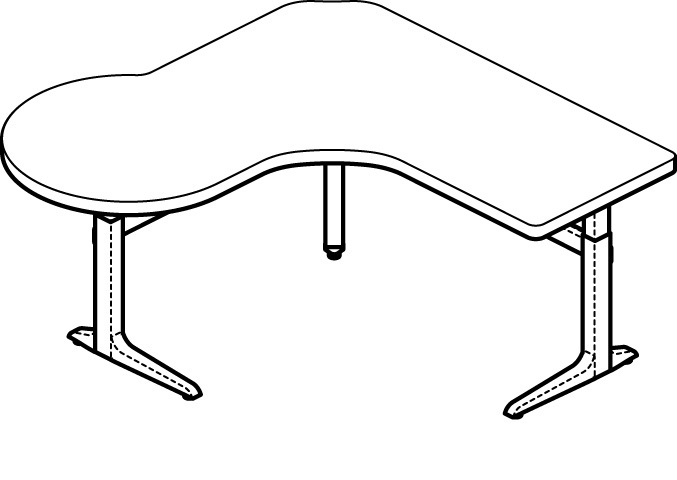

P Peninsula Workcenter Left (Round P section is on the left side, in the back)	P Peninsula Workcenter Right (Round P section is on the right side, in the back)
Model SE72364824X : 72" x 37" x 48" x 24" Surface Dimensions	Model SE48247236X : 48" x 24" x 72" x 37" Surface Dimensions
Model SE72366024X : 72" x 37" x 60" x 24" Surface Dimensions	Model SE60247236X : 60" x 24" x 72" x 37" Surface Dimensions
Model SE72367224X : 72" x 37" x 72" x 24" Surface Dimensions	Model SE72247236X : 72" x 24" x 72" x 37" Surface Dimensions
Model SE72364830X : 72" x 37" x 48" x 30" Surface Dimensions	Model SE48307236X : 48" x 30" x 72" x 37" Surface Dimensions
Model SE72366030X : 72" x 37" x 60" x 30" Surface Dimensions	Model SE60307236X : 60" x 30" x 72" x 37" Surface Dimensions
Model SE72367230X : 72" x 37" x 72" x 30" Surface Dimensions	Model SE72307236X : 72" x 30" x 72" x 37" Surface Dimensions

Option 3: Switch Position:

On Worksurface (A)

Under Worksurface (U)

Option 4: Choose your Base Frame Color:


Charcoal (C)

Option 5: Choose your Laminate Top Color:

Classic Collection Laminates

White Spectrum

AW785

Amber Raffia

AO351

Black

SE101

Black Ashwood

SZ101

Caramel Crepe

AT111

Coriander Fiber

AT981

Folkstone Gray

SG241

Gateway to the Future AV100

Hardrock Maple

WM791

IL Palio Papel

AV981

Jewel Mahagony WY351

Manila Linen

AT231

Opti Gray

SG213

Pearwood

WX031

Sharker Cherry

WC521

Taupe

ST606

Vanilla Fiber

AW871

Wheat Fiber

AT991

Opti Gray Crepe

AG341

Oiled Cherry

WC421

Designer Collection Laminates

Almond

ST655

Spa White

S740T

Sage

SV720

Thyme Fiber

AV721

Anigre

WX041

Beige Crepe

AT251

Beige Crepe

AT301

Blue Sandstone

AB191

Cubicle Papel

AG561

Yorkshire Cherry

WC411

Graveyard

AG611

Gray Santos

AG291

Gridlock

PFA51

Honey Maple

WM951

Millwork Cherry

WC431

Moonlighting Papel AV971

Moroccan Fresco AT121

Negotiating in Geneva PFA60

Oatmeal Fiber

AT101

Pearl of the Orient AG601

Pepper Fiber

AG581

Putty Gray

SG209

Rhinestone Cowboy AT151

Sipping Seattle Java PFA48

Star of the West

AT361

Streets of San Francisco PFA54

Witchcraft

WX421

Thermofoil Laminates (Minimum 10 Desks)

American Natural

98150

Aururn Pear

88898

Cashmere Fiber

98930

Clove

90340

Ebony Starlight

89865

Hayward Cherry

498120

Northern Gray

448395

Studio White

Dust 88885

Option 6: Edge Treatments

Edge Treatments for Laminated Surfaces:

Standard

Colors 01 - 05

Wedge

Black only - 06

Ripple

Black only - 07

Standard Edge Colors:

Folkstone 01

Black 02

Opti-Grey 03

Almond 04

HW Brown 05

Soft White 53

Edge Treatments for Thermofoil Surfaces:

Block B1

Cascade C1

Option 7: Casters

Sierra Locking Casters

Sierra Locking Casters

Features:

Low profile locking casters, 2" W x 1.5" H
Casters raise workcenters by 1" versus installed adjustable glides
Can be used with all Workrite adjustable workcenters, recommended for Sierra workcenters
Four (4) casters required for 2 leg workcenters, five (5) casters required for 3 leg workcenters

The following casters are available:

95234: 4 casters for 2 leg Workcenters
95235: 5 casters for 3 leg Workcenters

Option 8: Pinch Points

Actual Desktop Size:

Dimensions provided above are nominal. Actual widths of all tables are reduced by approximately 2" and depths by 1". For example, a nominal 72" x 72" x 24" large corner table has an actual dimension of 70" x 70" x 23", and a 72" x 30" rectangular table has an actual dimension of 70" x 29".

Workcenter Ordering Information

For Thermofoil laminates: Minimum quantity 25 tables per base model number (i.e. SE6030); consult factory for quote on larger projects.

Dual Surface specifications:

Front surface laminate and trim matches main worksurface.

Keyboard Cutout:

Front surface adjusted using fixed mount Pinnacle 2 Arm with 0" to -6" height range and -15 degree to +10 degree tilt range.

Switch Position:

If switch position not specified, under mount version (U) will be provided.
All tables have adjustable glides at front and back of each foot, providing 0.5" adjustment.

Table Surface Installation:

Table surfaces are pre-drilled with mounting location for bases and dual surface platform (if any). A joining kit is provided for all three leg tables with a two piece top.

Assembly:

All tables and bases ship unassembled. Weight information is shipped weight for laminate option only.

Sierra Assembly Image

Power:

Control box powered by 120V / 60Hz. May draw 6 amps maximum under full load, idle current is typically 20mA. 10ft grounded power cord with IEC type connection at control box provided.
Cable management spool provided to manage excess control cables; optional cable mount accessories are available - see Accessories.

Application Tips:
Mobile pedestals 21.5" H x 17" D and 21.5" H x 18.75" D will fit under 24"D and 30" D tables, respectively. To accommodate deeper pedestals, contact factory for custom leg placement.

Moving worksurfaces can collide with other components. Installation of overhead storage or wall mounted accessories in the path of the worksuface is not recommended. WorkRite has tool bars which move with the worksurface and can accept a variety of desk accessories.

Note for Base Units Only:

For safe operation of the moving worksurface in close proximity to walls or other worksurfaces, we recommend the following:

Reduce the width of the worksurface by two inches.
Reduce the depth of the worksurface by one inch.
Customer assumes full responsibility for proper clearances.

Lead Times:

Classic Collection Laminates: Ships in 10 working days
Designer Collection Laminates: Ships in 15 working days
Thermofoil Laminates: Ships in 6 weeks, minimum quantities apply
Note: All lead times quoted are for the models shown in current catalog. Please call for lead times on custom tables.
