The below item has been discontinued. See above for similar products that we offer instead. We apologize for this inconvenience.

Ergotron SV21-91008 StyleView Notebook Cart Autolock Drawer DISCONTINUED

Be the first to review this product
Product ID: 15219
Our Price: $1,697.13
Shipping: $147.57 * - UPS Ground
Usually ships in 2 to 3 business days
* applies to Contiguous United States

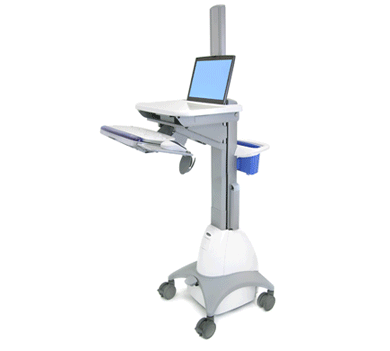

Animated Image for Ergotron StyleView Notebook Cart with Autolock Drawer, Non-powered SV21-91008





Ergotron StyleView Notebook Cart with Autolock Drawer, Non-powered SV21-91008



General Information







Ergotron SV21-91008 StyleView Notebook Cart with Autolock Drawer, Non-powered

Ergotron SV21-91008 StyleView Notebook Cart with Autolock Drawer, Non-powered

Ergotron SV21-91008 StyleView NoteBook Cart with Autolock Drawer, Non-powered



Features include an auto-locking drawer, sit-to-stand height adjustment, secure notebook mounting, and an adjustable negative-tilt keyboard tray. An expansive enclosed cable management compartment makes it easy to keep cables concealed and organized.

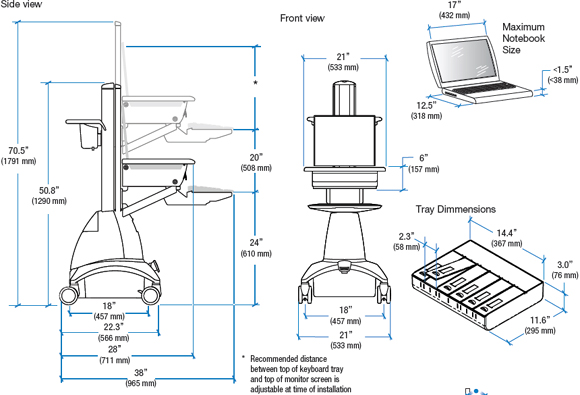

Dimensional Diagram for Ergotron StyleView Notebook Cart

Dimensional Diagram for Ergotron StyleView Notebook Cart



Technical Specifications:

LCD Size

Weight Capacity

Lift

Tilt

Pan

Rotation

Vesa

LCD Size

Wt. Capacity

Lift

Tilt

Pan

Rotation

VESA

up to 17"

up to 43 cm

5 - 12 lbs

2.3 - 5.4 kg

20"
50.8 cm

-

-

-

-



Comparison Chart for Ergotron Carts:

LCD size image

Weight capacity image

Lift image

Tilt image

Pan image

Rotation image

VESA image

Product No

LCD Size

Wt. Capacity

Lift

Tilt

Pan

Rotation

VESA

SV21-91075

up to 20"

up to 51 cm

5 - 18 lbs

2.3 - 8.2 kg

25"
63 cm

25°

-

90° P/L

MIS-D

SV21-30075

up to 22.9"

up to 58.3 cm

up to 25 lbs

up to 11.3 kg

20"
50.8 cm

± 12°

-

-

MIS-F

SV21-30007

up to 15.4"

up to 39.1 cm

5–30 lbs

2.3–13.6 kg

20"

50.8 cm

± 15°

-

-

-

SV22-22001

up to 22.9"

up to 58.3 cm

up to 25 lbs

up to 11.3 kg

20"
50.8 cm

± 12°

-

-

MIS-D

SV22-22002

up to 15.4"

up to 39.1 cm

5–30 lbs

2.3–13.6 kg

20"
50.8 cm

± 15°

-

-

-

24-182-055

up to 20"
up to 51 cm

28 lbs
12.7 kg

25"
63 cm

25°

-

90° P/L

MIS-D

SV22-92026

up to 17"
up to 43 cm

5–12 lbs
2.3–5.4 kg

20"
50.8 cm

-

-

-

-

SV22-92023

up to 20"
up to 51 cm

5–18 lbs
2.3–8.2 kg

25"
63 cm

25°

-

90° P/L

MIS-D

SV21-91008

up to 17"
up to 43 cm

5–12 lbs
2.3–5.4 kg

20"
50.8 cm

-

-

-

-

SV21-91007

up to 17"
up to 43 cm

5–12 lbs
2.3–5.4 kg

20"
50.8 cm

-

-

-

-

SV21-31645

up to 231/4"

up to 59 cm

up to 13 lbs

up to 5.9 kg

-

180°

180°

360° P/L

MIS-D

SV22-22009

up to 22.9"

up to 58.3 cm

up to 17 lbs

up to 7.7 kg

20"

50.8 cm

± 12°

-

-

MIS-D



Product Information:

Part Number

SV21-91008

Description

Style View Notebook Cart with Autolock Drawer, Non-powered

Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel

Includes

Programmable auto-locking drawer, work surface, storage area for one (1) lithium-ion battery, scanner holder bracket, mouse holder, gel wrist rest, negative-tilt keyboard tray, left/right mouse tray, rear handle, storage basket, cable storage box, riser lock, four dual casters (two locking)

Features

Storage Drawer features programmable integrated keypad lock/unlock system with key lock/unlock back-up, facilitates medication delivery

Comfortable, ergonomic 12°-negative-tilt keyboard tray

Riser Lock

Foot-activated riser lock

Weight Capacity

Notebook = 5–12 lbs (2.3–5.4 kg); Keyboard Tray, Drawer and Work surface = 10 lbs (4.5 kg) total maximum payload (with riser lock disengaged)

Compatible with 17" notebooks; maximum physical dimensions of notebook = 17"W x 12.5"H x 1.5"D (43 x 32 x 4 cm)

Caster Footprint

18" x 18" (46 x 46 cm)

Work surface Dimensions

20.8"W x 14.8"D (53 x 41 cm)

Shipping Dimensions

24" x 32" x 56" (610 x 813 x 1422 mm)

Shipping Weight

150 lbs (68 kg)

Warranty

Five (5) years



Benefits:
Secure auto-locking drawer controlled by electronic keypad, facilitates medication delivery, enhancing caregiver efficiency and patient safety
Comfortable, ergonomic data entry either sitting or standing
Wrists remain in a neutral position during data entry with negative-tilt keyboard tray—avoid repetitive-stress injuries
Easy to use—cart comes fully assembled
Expansive cable management storage area
Easier mousing and typing with rigid keyboard platform
Equipment locks deter theft
Open architecture provides flexibility for future hardware upgrades



Images:

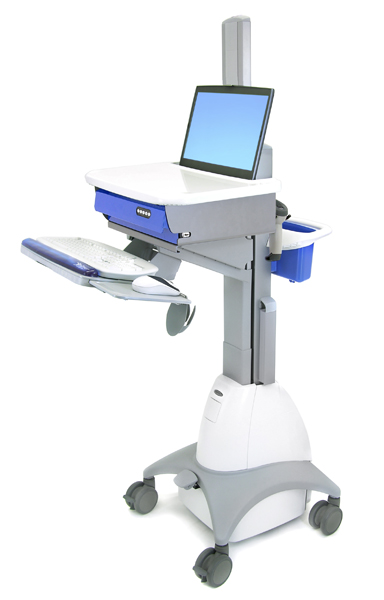

Ergotron StyleView Notebook Cart with Autolock Drawer, Non-powered SV21-91008



Literature (Please open the following documents for more technical information)

Description

File Type

Dimensional Illustration

reader-14.jpg - pdf

Product Sheet

reader-14.jpg - pdf

Installation Manual

reader-14.jpg - pdf
