The below item has been discontinued. See above for similar products that we offer instead. We apologize for this inconvenience.

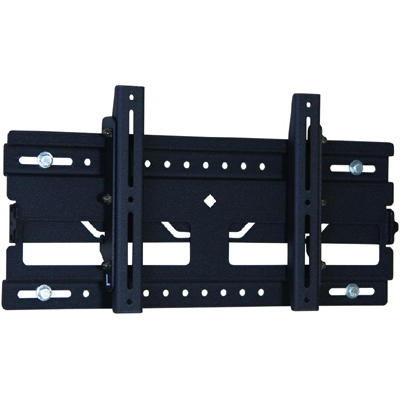

Chief RMF1 Universal Fixed Wall Mount up to 40 inch Medium Flat Panel Displays

Be the first to review this product
Product ID: 15313
Recommended Accessories
Our Price: $63.20
Shipping: $12.75 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States





Accessories for Chief RMF1 Fixed Wall Mount

Chief KSA1022B or KSA1022S Wall Extrusion (Wall Track)

Chief KSA1022 Wall Extrusion (Wall Track)







General Information

Image of Warranty and Returns



Nationwide Delivery Image

Buy from an Authorized Dealer





Chief RMF1 Universal Fixed Wall Mount up to 40 inch Medium Flat Panel Displays



Chief RMF1 Medium Flat Panel Universal Fixed Wall Mount up to 40 inch Displays









Features of Chief RMF1 Fixed Wall Mount:

    1.  Integrated Lateral shift: Reposition mount 2.25” (57 mm) left or right after installation for

         ultimate positioning flexibility.



    2.  Exclusive Glide Lock Latch: Tool-less locking feature saves time and effectively secures flat

         panel to wall mount.



    3.  Rapid Leveling: Hands free leveling of mount on wall.



    4.  Multiple mounting options on single stud or 16" on center studs.



    5.  Integrated security with addition of padlock.



    6.  All mounting hardware included.









Technical Drawing for Chief RMF1 Medium Flat Panel Universal Fixed Wall Mount



Technical Drawing for Chief RMF1 Medium Flat Panel Universal Fixed Wall Mount









Universal Fixed Mount:

The maximum width between your mounting holes must be less than 17.9” (455 mm) and the maximum height must be less than 9.25” (235 mm) to ensure compatibility of this mount.



Description of Chief RMF1:

The RMF universal fixed mount for medium flat panels offers unique installation features in an ultra low profile design.







Specifications:

Depth from Wall:

1.63" (41 mm)

Dimensions (H x W x D):

10.25” x 20” x 1.63” (260 x 508 x 41 mm)

Lateral Shift:

2.25” (57 mm)

Color:

Black

Weight Capacity:

100 lbs (45.4 kg)







Literature (Please open the following documents for more technical information)

Description

File Type

Chief RMF1 Universal Fixed Wall Mount - Catalog Page

reader-14.jpg - pdf

Chief RMF1 Flat Panel Fixed Wall Mount - Installation Assembly

reader-14.jpg - pdf

Chief RMF1 Fixed Universal Wall Mount - Technical Drawing

reader-14.jpg - pdf
