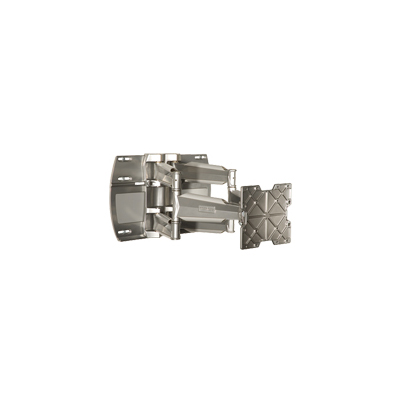

Peerless SA760P Articulating Wall Arm for LCD Flat Panel SA-760P SA760P-S DISCONTINUED

Model Numbers

Universal Models (37" to 63" Screens)

Standard Fasteners

SA760PU - High gloss black

SA760PU-S - High gloss silver

Dedicated Models: (37" to 71" Screens)

Screen Adapter Purchased Separately for Non- VESA Screens

Standard Fasteners

SA760P - High gloss black

SA760P-S - High gloss silver

Product Specifications

Features:

• Arm extends up to 27.8" from wall

• VESA 100/200x100/200x200 compatible

• 1" clearance per channel for clean and simple cable management

• Dual-arm construction for extra strength and smooth motion

• Up to 7.75" total horizontal adjustment

• One-touch tilt allows adjustment of +15/-5 degree without the use of tools

• Three pivot points with up to 180 degree swivel

• Two knockouts in wall plate for optimal electrical access

• ±2.5 degree roll to level screen horizontally

• Allows portrait or landscape screen orientation

• Metal stud compatible with ACC615 (up to 125lb)

Screen Adapter

Universal Models:

Includes universal screen adapter to accommodate

mounting holes spaced up to 30.13" horizontally

and 17.24" vertically

Dedicated Models:

Includes screen adapter to accommodate VESA 100, 200 x 100 and 200 x 200 mm mounting holes. Non-VESA compatible screens require screen-specific adapter to be purchased separately.

Dimensions (W x H x D)

Universal Models: 32.87" x 18.25" x 6.8" to 29.8" (83.48 x 46.35 x 17.2 to 75.6 cm)

Dedicated Models: 28" x 14.5" x 4.8" to 27.8" (71.12 x 36.83 x 12.19 to 70.6 cm)

Tilt

+15/-5 degree

Swivel

±90 degree

Roll

±2.5 degree

Maximum Load

200 lb (90.71 kg)

Available Colors

Black and Silver

Package Specifications

Package Contents

SA760PU(-S): Dual Arm, Double Stud Mounting, Universal Adapter Plate included

SA760P(-S): Dual Arm, Double Stud Mounting

Units in Package

1

Package Ship Weight

Universal Models: 53.37 lb (24.2 kg)

Dedicated Models: 45 lb (20.4 kg)

Mounting Surfaces

Wood stud, concrete, cinder block and metal stud (for metal stud applications, contact Customer Care)

Package UPC Code

SA760PU: 735029251286

SA760PU-S: 735029251293

SA760P: 735029251200

SA760P-S: 735029251217

Warranty

Limited 5-year
