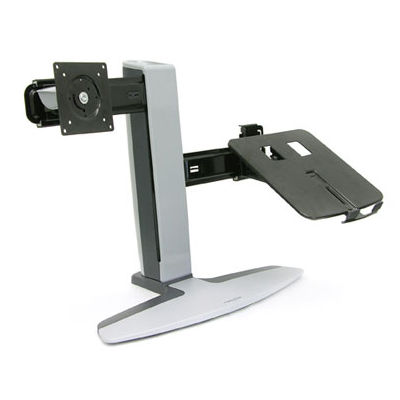

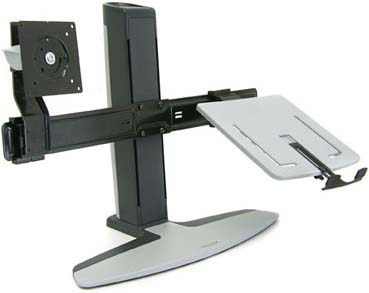

Ergotron 33-331-057 Neo Flex Combo Lift Stand 33318057
|

|
|
|
Description of Ergotron 33-331-057 Lift Stand:
|
Perfect for extensive laptop computing - work healthy and comfortable. Simply combine your notebook with an LCD display, separate keyboard and mouse to create a productive dual-display configuration.
Save time by viewing multiple applications at once. With this stand's height adjustment, tilt and rotation, you'll get desktop computing comfort combined with the portability of a laptop.
|
|
|
|

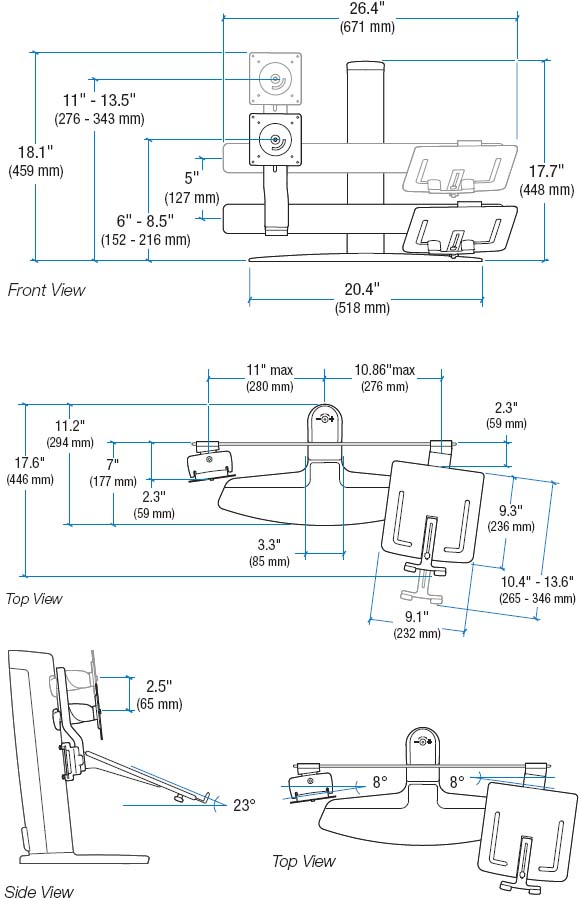

Technical Drawing for Ergotron 33-331-057 Neo-Flex Combo Lift Stand

|
|
|
|
Technical Specifications:
|

|

|

|

|

|

|

|
LCD Size
|
Wt. Capacity
|
Lift
|
Tilt
|
Pan
|
Rotation
|
VESA
|
up to 20"
|
12 - 28 lbs
5.4 - 12.7 kg
|
5"
12.7 cm
|
30 degree |
360 degree |
360 degree P/L
|
MIS-D
|
|
|
|
Product Information:
|
Part Number:
|
33-331-057 (previously sold as 33-318-057)
|
Description:
|
Neo-Flex Combo Lift Stand (two-toned grey)
|
Included:
|
|
Designed:
|
Designed for use with a separate, external keyboard for proper ergonomics
|
Not Included:
|
Laptop, monitor, keyboard and mouse not included
|
Included:
|
Everything is included to neatly route cables behind the stand, out of the way
|
Weight Capacity:
|
12 - 28 lbs (5.4 -12.7 kg) total
Notebook = 6 - 12 lbs (2.7 - 5.4 kg)
Monitor = 6 - 16 lbs (2.7 - 7.2 kg)
|
Monitor up/down Tilt:
|
+25 degree/-5 degree
|
Mounting Standards:
|
VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
|
Tested:
|
Tested in compliance to UL specification 1678 tip stability test
|
Shipping Dimensions:
|
24.4" x 16.8" x 8.8" (620 x 426 x 224 mm)
|
Shipping Weight:
|
23 lbs (10.4 kg)
|
Warranty:
|
Three (3) years
|
|
|
|
|
Benefits of Ergotron 33-331-057:
|
1. Get desktop comfort with notebook portability - the perfect home base for the business
traveler who is constantly on the go.
|
2. Affordable productivity gains. Check out our Multi-Display Payback Calculator - determine the
cost benefit associated with adding a second display.
|
3. Adjust the height of your notebook and external LCD for maximum productivity and ergonomic
comfort.
|
4. Superior technical design enables use with or without a docking station.
|
5. Create a productive dual-display configuration by placing your notebook's screen alongside an
LCD.
|
6. Flexible design enables notebook to be configured on either the right or left side.
|
7. Perfectly align notebook and monitor bezels for optimum viewing comfort and enhanced
productivity.
|
8. Integrated base rollers enable 360 degree pan rotation of the stand so you can share your
views with others.
|
9. Patented motion technology produces smooth adjustment.
|
10. Its small footprint frees up your desktop to increase workspace, making the addition of a
second display an easy fit.
|
11. Five-inch (12.7 cm) height adjustment ergonomically accommodates average range of users
|
|
|
