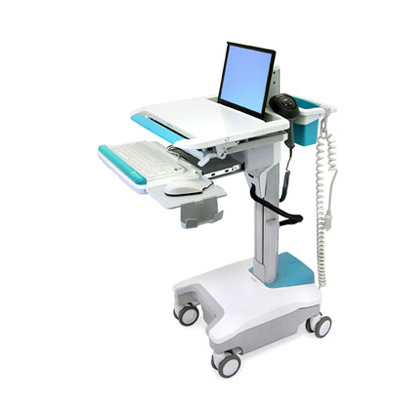

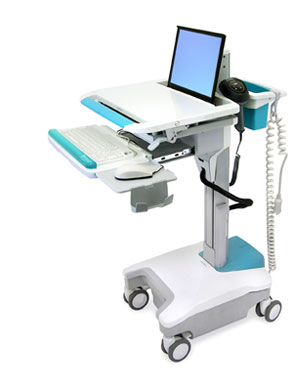

Ergotron SV32-32002 StyleView Notebook Cart, 40 Ah Powered

|
|
Ergotron SV32-32002 StyleView Notebook Cart, 40 Ah Powered
This innovative, ergonomic and easy-to-maneuver healthcare cart features sit-to-stand height adjustment, independent screen positioning and an adjustable negative-tilt keyboard tray. Our years of experience and collaboration in point-of-care computing have enabled us to design a cart that nurses, IT, infection control and procurement will all love!
|
Technical Specifications:
|

|
 |
 |
 |
 |
 |
 |
LCD Size
|
Wt. Capacity |
Lift |
Tilt |
Pan |
Rotation |
VESA |
up to 17"
|
up to 23 lbs
10.4kg |
20"
50.8 cm
|
- |
- |
- |
- |
|
|
Product Information: |
Part Number:
|
Ergotron SV32-32002
|
Description:
|
StyleView Notebook Cart, 40 Ah Powered, North America (white and turquoise)
|
Includes:
|
10-foot coiled cord, four hospital-grade AC outlets, power system user interface, StyleLink software, worksurface, secure notebook compartment, four-port USB hub and Ethernet ready-on function, scanner holder bracket, mouse holder, wrist rest, negative-tilt keyboard tray, left/right mouse tray, front/rear handle, storage basket, cable storage, four casters (two locking), two-battery 40 Ah power system
|
Enclosed Storage:
|
Secure, ventilated enclosed storage for notebook
|
Negative-Tilt Keyboard Tray:
|
Ergonomic negative-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry—avoid repetitive-stress injuries while increasing comfort and productivity
|
Keyboard Tray:
|
Lighted keyboard tray for nighttime usage
|
External Ready-on Button:
|
External ready-on button awakens an enclosed computer from hibernation mode—facilitates easy compliance with Energy Star 4.0 guidelines
|
Exterior:
|
Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel
|
Casters |
Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability |
Weight Capacity:
|
Total maximum load of height-adjustment assembly = 23 lbs (10.4 kg). This is the sum of the following components: Capacity of worksurface, keyboard tray and autolock drawer = ≤10 lbs (4.5 kg); capacity of CPU compartment = ≤13 lbs (5.9 kg)
|
Lift Range:
|
LCD and work surface adjust 20" (51 cm) in tandem
|
Wheel-to-Wheel Base Dimensions:
|
15.5" x 18.7" (39 x 48 cm)
|
Notebook Holder Internal Dimensions
|
16.75" W x 12.5" H x 2.0" D (43 x 32 x 5 cm)
|
Worksurface Dimension:
|
20.9" W x 16.4" D (53 x 42 cm)
|
Power System:
|
Power System User Interface integrated into the worksurface; includes visual and audio battery-status indicator
|
Upgraded Style Link software:
|
Upgraded Style Link software is Windows Vista compatible; integrates with Microsoft Group Policy Management Console and Microsoft Active Directory
|
Cart and power system:
|
Cart and power system are being certified to UL 60601-1 and NFPA current leakage limits
|
40 Ah Power System:
|
40 Ah Power System with two (2) 20 Ah, 12 V DC, Sealed Lead Acid (SLA), Absorbed Glass Mat (AGM), valve-regulated batteries with supporting electronics
|
VAC
|
120
|
Hz
|
60
|
Grounded plug and outlet:
|
Grounded plug and outlet: North American, NEMA 5-15P, hospital grade
|
Complies
|
Power system complies with EMI limits of FCC Part 15 Class A
|
Shipping Dimensions:
|
24" x 32" x 56" (61 x 81 x 142 cm). Ships fully assembled.
|
Shipping Weight:
|
153 lbs (69 kg)
|
Warranty:
|
Five (5) years for cart, two (2) years on all power supply components by Ergotron; battery carries limited one- (1-) year performance warranty and six- (6-) month warranty against manufacturer’s defects
|
|
Benefits:
|
-
Integrated four-port USB hub and Ethernet ready-on function: Awaken enclosed computer from energy-saving hibernation mode with the touch of an external button
-
Includes StyleLink - the most advanced Power Management Software available. Allows remote configuration of entire fleet of carts and seamlessly integrates with Microsoft tools
-
Lowest priced cart with most standard features, including basket, front/rear handles, scanner holder, mouse pouch, advanced cable management, four-port USB hub, Ethernet ready-on function and AC inlet powered coiled cord
-
Lowest total cost of ownership. StyleView is tested to UL/EN/IEC specifications through an ISO certified regimen for superior quality. When combined with StyleLink diagnostic tools and Ergotron’s service plan, using StyleView means less maintenance and on-site technical support cost.
Designed for Nurses:
-
StyleView’s small footprint, with smooth-gliding casters, travels across crowded carpeted or hard floors with ease—perfect for space-constrained areas
-
Advanced open-architecture design supports future hardware upgrades
-
Comfortable, ergonomic data entry—work sitting or standing—helps promote caregiver wellness.
-
Extensive warranty: Five years on cart; two years on power system; one-year limited warranty on battery
Engineered for IT:
Priced for Procurement:
-
Environmentally clean: RoHS, WEEE and EU (94/62/EC) packaging compliant
-
Extremely easy to clean design promotes infection control
-
Power system complies with EMI limits of FCC Part 15 Class A
Certified for Safety:
-
For patient and caregiver safety, the cart and power system are being certified to UL 60601-1 and NFPA current leakage limits
-
Take it for a spin—StyleView responds easily to caregivers’ touch and effortlessly maneuvers to the point of care
|
|
|
|
