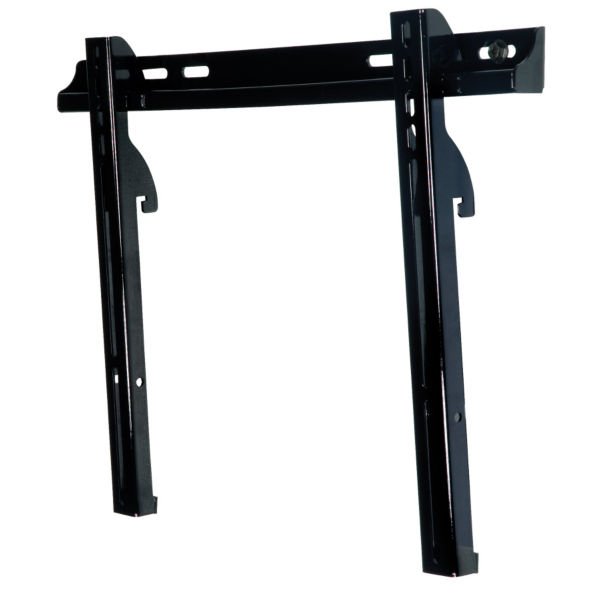

Peerless PFT640 Universal Fixed Tilt Wall Mount, 23"-46" Displays

This product has been discontinued.

Description

The unique single rail design of peerless PFT640 makes it the fastest and easiest mount to install yet. Simply hook the display on to the single-rail wall plate to simultaneously set the tilt angle and secure it. Its patent-pending safety hooks prevent the display from accidentally being dislodged, delivering a peace-of-mind with every installation. Its simplistic design and functionality provide the ultimate in value.

Technical Drawing

Technical drawing for Peerless PFT640 Universal Fixed Tilt Wall Mount for 23"-46" Displays

Specifications

Minimum to Maximum Screen Size	23" to 46"
VESA Pattern	400 x 300
Weight Capacity	100 lbs (45.0 kg)
Color	Black
Finish	High Gloss
Distance from Wall	1.70 - 2.68" (43 - 68mm)
Mounting Pattern	453 x 329mm (17.85 x 12.94")
Security Features	Non-Security Hardware

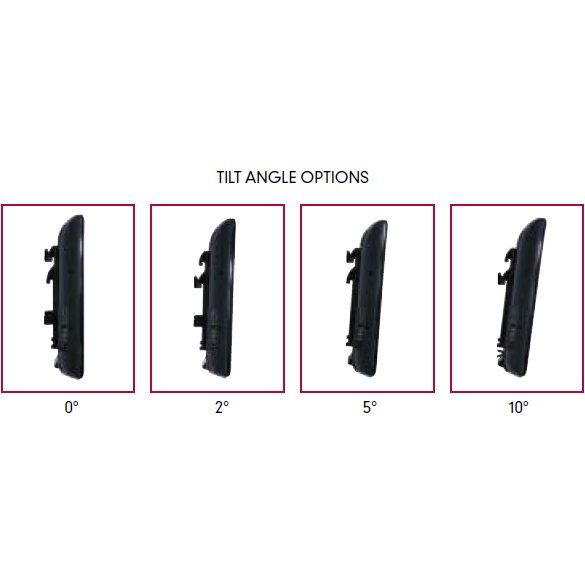

Tilt	0, 2, 5, 10 degree
Product Dimensions	19.25" x 13.75" x 1.7" (489 x 349 x 43mm)
Product Weight	3.4 lbs (1.54 kg)
Shipping Dimensions	20.5" x 4.375" x 2.125" (521 x 111 x 54mm)
Shipping Weight	3.8 lbs (1.72 kg)
Package Contents	Wall plate Universal brackets Mounting and screen attachment hardware
UPC Code	735029249917

Features

UL listed
Comes with Peerless-AV’s Sorted-for-You fastener pack with all necessary display attachment hardware
Safety tabs ensures display is securely attached to wall plate
Mounts to wood studs, concrete, cinder block or metal studs
Horizontal display adjustment of up to 6" (depending on display model) for perfect display placement
Low-profile design holds display only 1.7" from the wall for a clean application
Easy-glide brackets easily hook onto wall plate for a simple, safe and quick installation
Integrated tilt features with fixed angles of 0°, 2°, 5° and 10° for increased functionality and viewing flexibility
Universal mount fits displays with mounting patterns up to 17.85"W x 12.94"H
