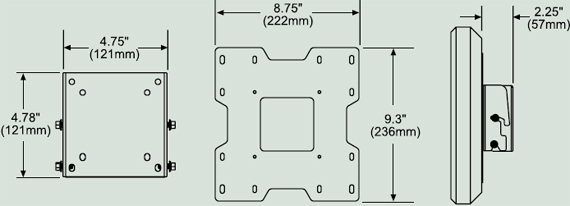

Dimensional Diagram for PeerlessPT632 PRO Tilt Wall Mount PT-632

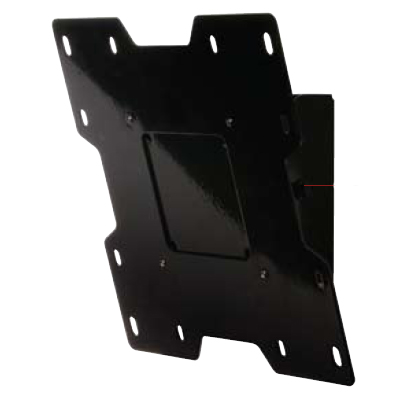

PRO Tilt Wall Mount:
This sleek, compact tilt wall mount delivers a big impact for small - mid-size screens. Its simple three step installation combined with its adjustable tilt angle enable flat panel screens to be installed and adjusted quickly. This mount delivers big results
Features:
Mount fits screens with VESA 75, 100, 200x100 or 200x200 mm hole patterns

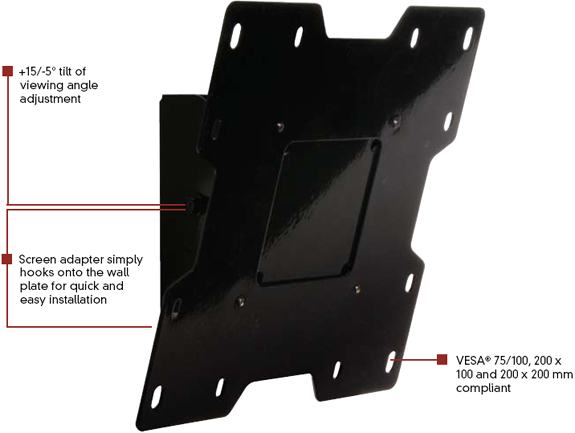

Adjustable 15 degree forward tilt and -5 degree backward tilt for finding the optimal viewing angle
Tilt angle locks into place with simple tightening of screws
Screen held only 2.25" from wall, perfect for a low profile application
Mounts to wood studs, concrete, cinder block or metal studs (metal stud accessory required)
Comes with all necessary screen attachment hardware
UL Listed
Product Information:
Model Numbers
Universal Models: PT632 -- Standard Fasteners (Includes standard hardware (hex or Phillips) for attaching screen to mount)
Screen Adapter
Universal Models:
Includes universal screen adapter to accommodate VESA 75, 100, 200 x 100 and 200 x 200mm mounting holes
Product Specifications
Dimensions (W x H x D)
8.75" x 9.35" x 2.25" (22.2 x 23.6 x 5.7 cm)
Load Capacity
115 lb (52.1 kg)
Product Weight
3.31 lb (1.5 kg)
Finish
Scratch-resistant fused epoxy
Available Colors
Gloss Black
Accessories
ACC215 - 2 Pack Metal Stud Fastener Kit
Patent
Patent Pending
Package Specifications
Package Contents
Wall plate, screen adapter, VESA 75/100, 200 x 100, or 200 x 200 screen adapter, mounting and screen attachment hardware
Units in Package
1
Package Size (W x H x D)
9.25" x 12.5" x 2.75" (23.4 x 31.7 x 6.9 cm)
Package Ship Weight
3.5 lb (1.58 kg)
Mounting Surfaces
Wood stud, concrete, cinder block or metal stud (Metal stud accessory required)
UPC Code
PT632: 735029255888
Warranty
Limited 5 years

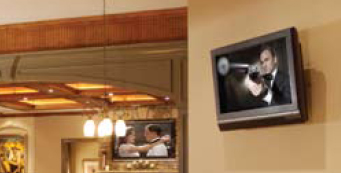

Additional Images:
Literature(Please open the following documents for more technical information)
Description
File Type
Peerless PT632 Product Profile
- pdf
Peerless PT632 Catalog Page
- pdf
Peerless PT632 Technical Data
- pdf
Peerless PT632 Installation and Assembly Sheet
- pdf
Metal Stud ACC215 Installation Sheet for Peerless PT632
- pdf
