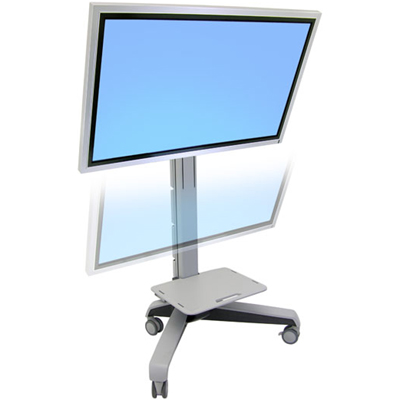

Ergotron 24-192-057 Neo-Flex Mobile Media Center UHD Ultra Heavy Duty for 50-65" LED Monitor Display

     LCD Size

 Wt. Capacity

     Lift

Tilt

Pan

Rotation

VESA

50" - 65"

90 - 130 lbs

41 - 59 kg

20"
51 cm

20°

-

90° P/L

MIS-F

Part Number:

24-192-057

Description:

Neo-Flex Mobile MediaCenter UHD, Ultra Heavy Duty (Grey)

Includes:

Cart, display and pan assembly, lower main shelf, 4-inch (100 mm) casters (two locking), rear cable shelf, cable channel kit

Others Information:

• Add the MMC Video-Conferencing Kit to place adjustable camera shelf above the display (ordered separately)

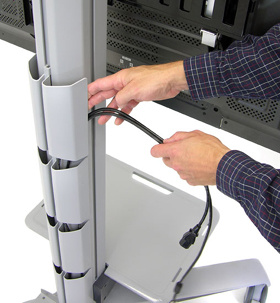

• Modular cable channel system is adaptable for various wiring configurations

• Rugged plastic-composite shelf conveniently attaches to cart at any height

• Complies with UL Tip Standards 1667 and 1678

CPU:

CPUs attach safely to rear of cart with Universal CPU Holder accessory (ordered separately). Compatible with CPU sizes from 12" H x 3" D to 18" H x 8.5" D (300 x 80 mm to 460 x 220 mm)

Weight Capacity:

Main shelf = 30 lbs (13.6 kg), cable shelf = 5 lbs (2.2 kg), if MMC Video-Conferencing Kit is added, display weight capacity is diminished by 3 lbs (1.4 kg), if 800 mm Accessory Kit is added, display weight capacity is diminished by 5 lbs (2.3 kg)

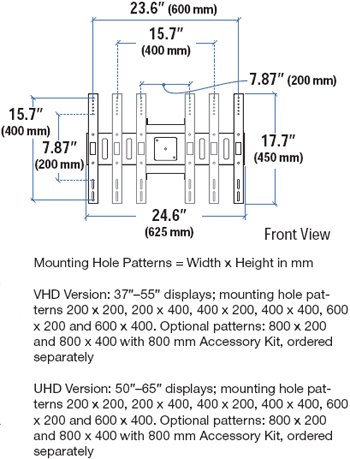

Mounting Hole Patterns

(Width x Height in mm):

200 x 200, 200 x 400, 400 x 200, 400 x 400, 600 x 200 and 600 x 400. Optional patterns: 800 x 200 and 800 x 400 with 800 mm Accessory Kit, ordered separately

Note:

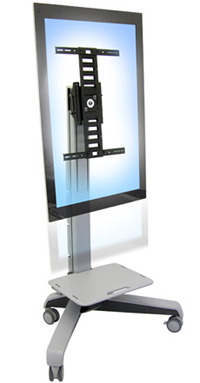

Portrait orientation is not recommended for some plasma displays. Contact display manufacturer if you have questions regarding your plasma’s portrait-mode capability (this is not an issue with LCD technology)

Shipping Dimensions:

66"L x 20"H x 14"D (1680 x 503 x 335 mm)

Shipping Weight:

122 lbs (55 kg)

Warranty:

Three (3) years
