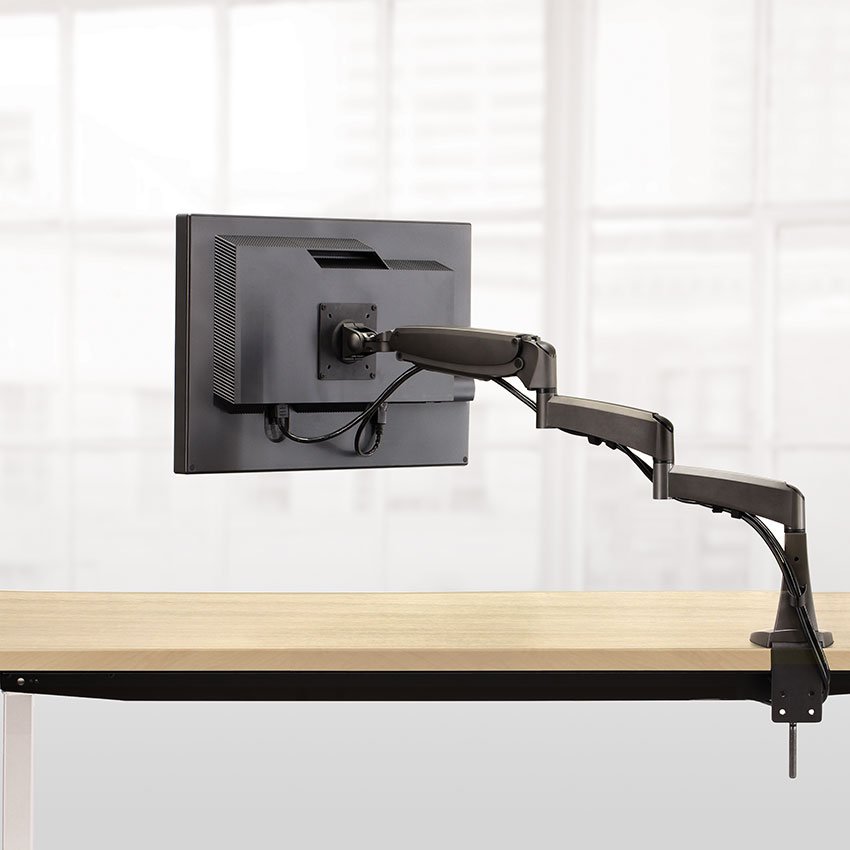

Workrite PA1500-DB-B or PA1500-DB-S Poise Extended Monitor Arm

4.5 out of 5 (based on 2 reviews)
Product ID: 15717
Highlights
  • Desk Mounting Single Monitor Arm
  • Weight Capacity: Supports monitor weighing between 8 - 22 lbs
  • Vertical Adjustment: Offers 12" height adjustability
  • Horizontal Extension: Provides 30 1/4" horizontal reach
  • Flexibility: Provides 180 degrees rotation and 160 degrees tilt to the display
  • Please see, if you want less horizontal extension
Options
List Price: $530.00
Our Price: $318.00
Shipping: $0.00 *
Usually ships in 3 to 5 business days
* applies to Contiguous United States

Description

Workrite PA1500-DB Poise-Extended monitor arm is designed to support heavier monitors in hard to reach applications such as corners and work surfaces deeper than 30". Poise-Extended provides an additional 7" of forward reach and features a pneumatic strut and precision machined couplings designed to create smooth lift, maximum stability and easy adjustability.

Poise-Extended is available in two contemporary finishes and comes standard with coordinated C-Clamp and Grommet mounts. A variety of optional mounts for more unique installations and a quick release adapter can also be purchased separately.

The Poise-Extended comes with a 10 year warranty and can be relied upon to provide years of dependable performance and adjustability

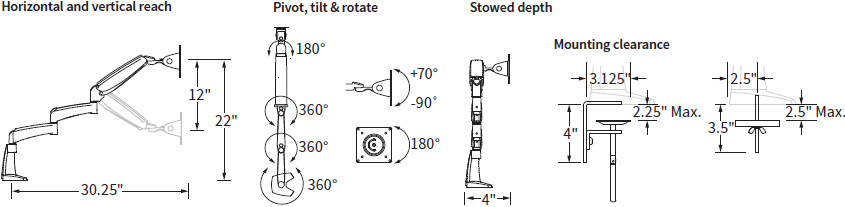

Technical Drawing

Technical drawing for Workrite PA1500-DB Poise Extended Flat Panel Monitor Arm

Specifications

Color Silver or Graphite
Supports One 8 - 22 lbs monitor
Max Monitor Height 15.5" (full range of motion)
Vertical Articulation 12"
Forward Reach 30.25"
Collapsible Down to 4"
Tilt Range 160° (+70°/-90°)
Pivot 180° (+/-90°)
Rotation 360° (portrait to landscape)
VESA Standard VESA (75mm & 100mm)
Mounts C-Clamp & Grommet Included
Warranty 10 Years

Comparison Chart

  Poise Single PA1000 Poise Extended PA1500-DB Poise Dual PA2000
Adjustability
Reach 23.25" 30.25" 14.75"
Articulation Range 12" 12" 12"
Monitor Tilt Range 160° (+70°/-90°) 160° (+70°/-90°) 160° (+70°/-90°)
Monitor Rotation 180° (+/-90°) 180° (+/-90°) 180° (+/-90°)
Stowed Depth 4" 4" 5.5"
Monitor Weight Range 8 - 22 lbs 8 - 22 lbs 8 - 22 lbs (each)
Features
Color Silver, Graphite Silver, Graphite Silver, Graphite
Integral Cable Management Yes Yes Yes
Accessories
Laptop Holder Yes Yes Yes
Quick Release Adaptor Yes Yes Yes
Non-VESA Mount Yes Yes Yes
100 mm x 200 mm VESA Yes Yes Yes
Extension Arm Yes No No
Mounting Options
C-Clamp Yes Yes Yes
Grommet Yes Yes Yes
Tool Bar and Privacy Panel Yes No No
Wall Mount Yes No No
Slatwall Yes No No
Warranty 10 Years 10 Years 10 Years

Warranty

Workrite warrants to the original purchaser that the products it manufactures are free from defects in design, material and workmanship. Subject to the limitations below, Workrite warrants each product in this catalog to be free from defects in materials and workmanship for the life of the product in its original installation. With prompt written notice, Workrite will repair or replace, free of charge, any product, part or component which fails under normal use as a result of such defect.

  • Sierra HX Height Adjustable Workcenter components - Limited Lifetime
    Electric components, motors, frames, brackets and feet.

All of the following exceptions to the limited lifetime warranty apply:

  • Fundamentals Electric Height Adjustable Workcenter components - 10 years
    Electric components, motors, frames, brackets and feet

  • Essentia Height Adjustable Workcenter components - 5 years
    Electric components, motors, frames, brackets and feet

  • Laminated worksurfaces and modesty panels - 5 years

  • Sierra HXL Crank Height Adjustable Workcenter components - 5 years
    Including crank mechanisms

  • Cascade Height Adjustable Workcenter components - 5 years
    Including counter-balance mechanisms

  • Line of Sight electrical components and manual lifts - 5 years

  • Line of Sight frames and metal desk parts - 5 years

  • Monitor supports and mounts - 10 years

  • Solace Clamp-on sit-stand products - 5 years

  • Solace Desktop sit-stand products - 2 years

  • LED and florescent lighting fixtures - 5 years

  • Lighting transformers and fluorescent ballasts - 1 year

  • Tranquility Wool & PET Felt panels and mounts - 5 years

  • Tranquility Poly Panels - 2 years

  • Fabrics, modesty panels, custom products and special order items - 2 years

  • Mousing surfaces and Slide Guide - 1 year

Frequently Asked Questions

Question: Is this arm wall-mountable? I only see the clamp and grommet mount selection. Answer: Wall mounting this PA1500-DB Monitor arm is not recommended. The reason being, it extends out so far that post mounting a monitor, it can possibly rip out the wall mount. That is why only C-clamp or Grommet mount is recommended. A wall mounting alternative to PA1500-DB is PA1000 Poise, which has a wall mounting as well as slatwall mounting option.
Model PA1500-DB-B, PA1500-DB-S
Manufacturer Workrite Ergonomics
Part Number PA1500-DB-B, PA1500-DB-S
UPC 029274408015
Weight 13.00 lb(s)
Mounting Options Desk
Monitor Arm Types 1 Monitor
Number of Monitors 1 Monitor
Weight Capacity 8-22 lbs
Maximum Screen Height 15.5" (full range of motion)
Vertical Range 12"
Forward Reach 30.25"
Stowed Depth 4"
Tilt (+70 degree/-90 degree) 160 degree
Pivot (+/-90 degree) 180
Rotation (Portrait to landscape) 360 degree
Mounting Pattern Standard VESA (75 mm & 100 mm)
Color Silver and Graphite
Warranty 10 years
