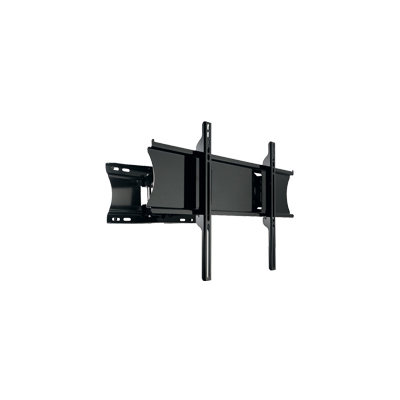

Peerless PA-760 PRO Articulating Wall Mount Arm for LCD LED Plasma Screens
|
|
|
|
|
|
|
|

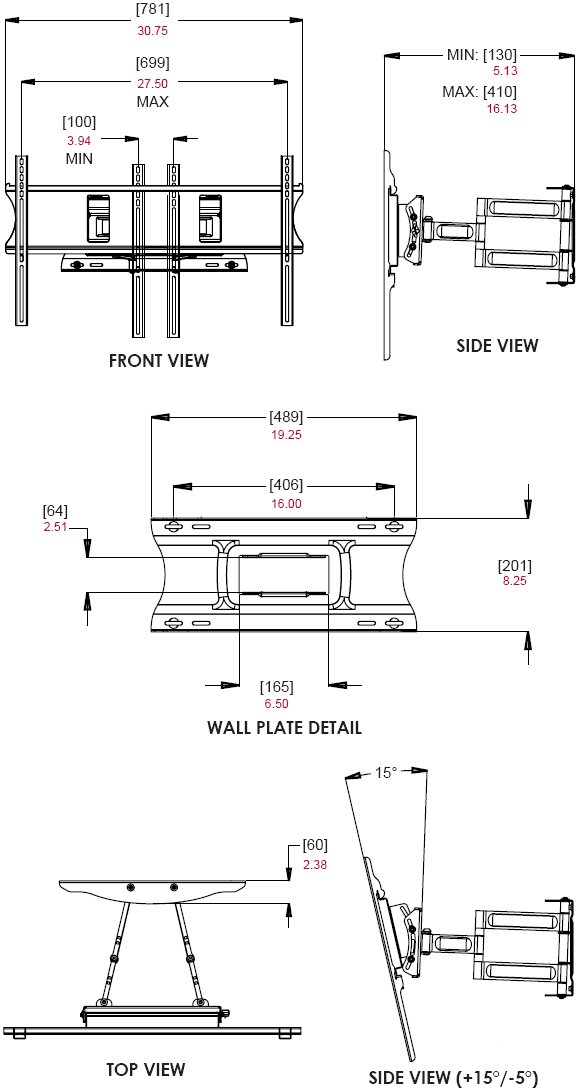

Dimensional Diagram for Peerless PA 760 Articulating Wall Mount Arm
|
|
|
|
|
|
Description of Peerless PA760 Articulating Wall Mount:
This solution captures the essence of articulating mounts while offering a high-performance, feature-packed design for any budget. Delivering exceptional strength and durability, this mount supports flat panel TVs from 37" to 60" (94-152 cm). Its smooth motion, extensive reach, swivel capabilities and continuous one-touch tilt deliver ideal TV placement for perfect viewing from anywhere in the room. The smooth lines of this stylish articulating arm combined with its high-gloss finish complement any environment and budget
|
|
|
|
|
|
|
|
Features of Peerless PA-760 PRO Arm:
|
|
1. Quick and easy to install
|
|
2. Accommodates LCD LED flat panels screens 37" to 60" in size, up to 130lbs (59kg) in weight.
|
|
3. Universal mounting pattern accommodates mounting holes up to 28.7" W X 17" H
|
|
4. One-touch tilt adjustment allows screen to be tilted forwards up to 15 degree or back to 5
degree without the use of tools.
|
|
5. Screen can be turned left or right up to 45 degree in either direction for the best possible
viewing angle.
|
|
6. Double arm construction for extra strength and smooth motion - arms extend up to 16" (410
mm) from the wall for virtually limitless viewing angles.
|
|
7. Integrated cable management system controls connecting cables with movement of arm and
delivers a clean cutter-free look.
|
|
8. Gloss black finish
|
|
9. UL listed
|
|
|
|
Product Information:
|
|
Product Specifications
|
|
Model Number:
|
PA760
|
|
Dimensions (W x H x D):
|
30.75" x 18" x 5.13"-16.13" (781 x 457 x 130-410 mm)
|
|
Product Weight:
|
21 lbs (9 kg)
|
|
Load Capacity:
|
130 lbs (59 kg)
|
|
Finish:
|
Scratch resistant fused epoxy
|
|
Available Colors:
|
High gloss black
|
|
Package Specifications
|
|
Package Size (W x H x D):
|
32" x 12" x 4.69" (813 x 305 x 119 mm)
|
|
Package Ship Weight:
|
25 lbs (11 kg)
|
|
Package UPC Code:
|
735029261674
|
|
Package Contents:
|
Mount, universal adapter plate, all necessary mounting and screen attchemtn hardware
|
|
Units in Package:
|
75 x 75 mm and 100 x 100 mm (without extra interface bracket)
|
|
Accessories:
|
PCC: Cable Management System
PS200: AV Shelf
|
|
|
|
|
|
|
