The below item has been discontinued. See above for similar products that we offer instead. We apologize for this inconvenience.

Ergotron 45-216-216 StyleView HD Heavy Duty Combo System LCD LED Mount 45216216

0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 15800
Recommended Accessories
Our Price: $669.40
Shipping: $45.00 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States





Accessories for Ergotron 45-216-216 StyleView HD Combo System

Ergotron 45-255-216 StyleView HD Extender white

Ergotron 45-255-216 StyleView HD Extender White

Ergotron 60-588-200 Interface Bracket for Motion Computing C5 Tablet PC 60588200

Ergotron 60-588-200 Interface Bracket

Ergotron 97-435-009 Display Security Bracket 97435009

Ergotron 97-435-009 Display Security Bracket





Ergotron 60-589-060 Quick Release LCD Bracket 60589060

Ergotron 60-589-060 Quick Release LCD Bracket

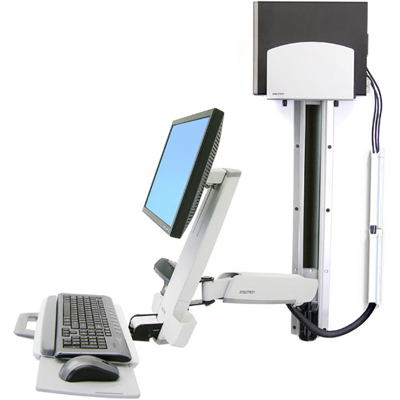

Animation of Ergotron 45-216-216 StyleView HD Combo System White





General Information



Image of Warranty and Returns

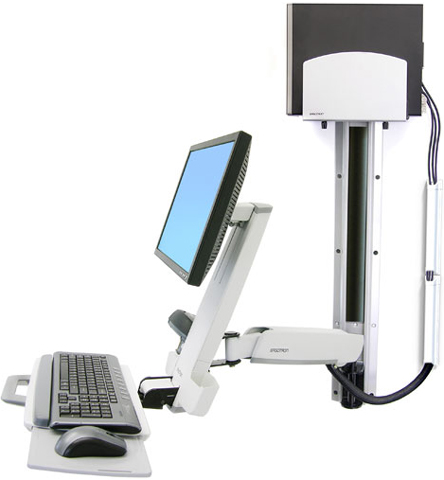

Ergotron 45-216-216 StyleView HD Combo System White 45216216



Ergotron 45-216-216 StyleView HD Combo System White









Description of Ergotron 45-216-216 HD Combo System:

This complete system provides easy re-positioning of your entire workstation - move your display, keyboard, mouse and barcode scanner in a single motion.



The ample height-adjustment range lets you work sitting or standing. The arm also extends and retracts, so you can fold it back out of the way when not in use. A unique cable management system conceals cords, making cleaning easy.

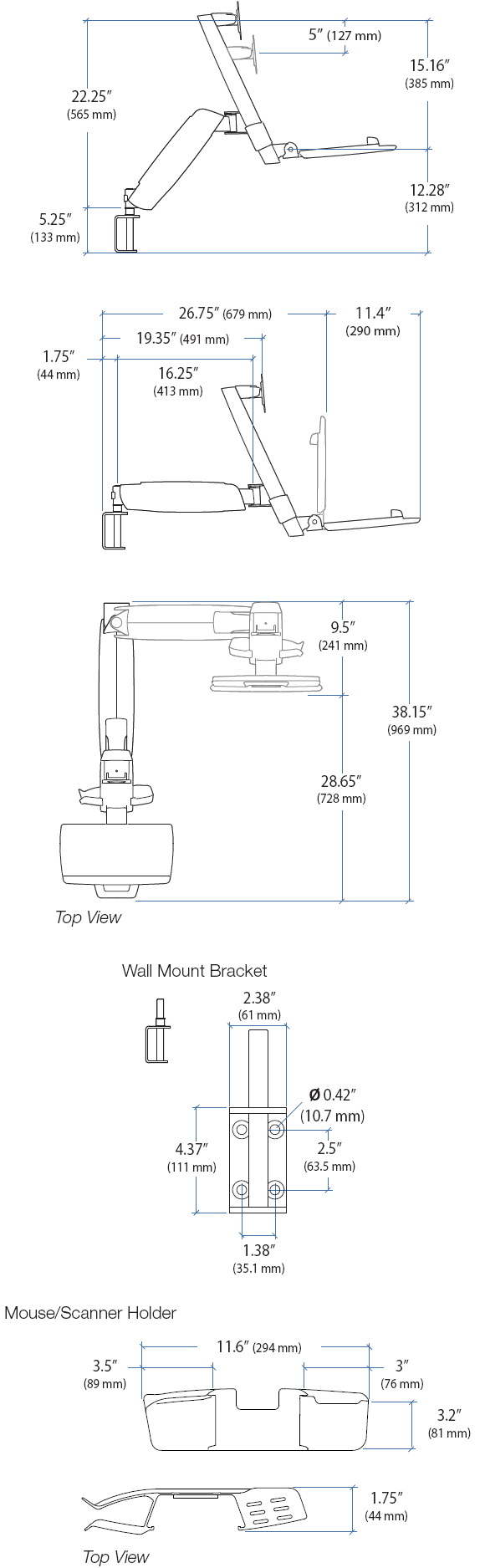

Technical Drawing for Ergotron 45-216-216 StyleView HD Combo System White



Technical Drawing for Ergotron 45-216-216 StyleView HD Combo System









Technical Specifications:

     LCD Size

 Wt. Capacity

     Lift

Tilt

Pan

Rotation

VESA

up to 24"

6 - 18 lbs
2.7 - 8.2 kg

20"
51 cm

 30° 180°

90° P/L

MIS-D







Product Information:

Part Number:

45-216-216

Description:

StyleView HD Combo System (white)

Included:

  • HD Combo Arm

  • 34" Wall Track with (2) black track covers

  • CPU Holder

  • (2) 10" cable channels

  • Track anchor hardware kit

  • CPU and Arm track mount bracket kits

  • CPU direct wall mount kit

  • Height-adjustable LCD mount

  • Wrist rest

  • Scanner and mouse holders

  • Integrated keyboard tray with left/right mouse tray

  • Handle

  • VESA monitor mounting kit

  • Cable ties

Exterior:

Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and powder coated painted steel

Weight Capacity:

Display = 6-18 lbs (2.7-8.2 kg);

Keyboard, mouse and barcode scanner = 5 lbs (2.3 kg)

Lift Range:

LCD and keyboard adjusts 15" (38 cm) in tandem,

LCD adjusts 5" (13 cm) independently,

maximum LCD height adjustment = 20" (51 cm)

Monitor up/down tilt:

+25°/-5

CPU Size Range:

2" to 8" (2 to 20 cm) wide

CPU Holder:

Includes fasteners for locking the holder’s width

Patended CF:

Patented CF lift-and-pivot motion technology provides premium five-inch (12.7 cm) LCD height adjustment, portrait to landscape rotation and 30° tilt

Mounting Standards:

VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)

Fold-down keyboard tray:

 Includes mouse tray that slides out to either right of left side, tray features mouse-pad surface

Negative-tilt keyboard tray:

Adjustable between 0 and -10 degrees

Optional:

18" (46 cm) extender arm (45-219-216 or 45-219-200) increases range of motion for even greater reach

Shipping Dimensions:

12.6"H x 37.7"W x 19.7"D (316 x 958 x 500 mm)

Shipping Weight:

42 lbs (18.9 kg)

Warranty:

Five (5) years









Benefits of Ergotron 45-216-216:

    1.  Flexible, open-architecture design is scalable for future computer equipment.



    2.  Comfortable, ergonomic data entry - work sitting or standing with 20" (51 cm) lift adjustment.



    3.  Maintains the relative position of screen and keyboard throughout full range of motion.



    4.  Five-inch (12.7 cm) independent LCD height adjustment ergonomically accommodates average range of users.



    5.  Easy to clean design promotes infection control.



    6.  Barcode scanner holder provides easy access to hand-held scanner.



    7.  Extend LCD and keyboard up to 39" (99 cm) from wall; fold equipment back out of the way when not in use. With keyboard in storage position, system depth is as little as 12" (30.5 cm).



    8.  Ergonomic negative-tilt keyboard tray (with left or right mouse tray) ensures wrists remain in a neutral position during data entry.



    9.  Clean, concealed and neat routing of cables through the expansive cable management system.







More Images:

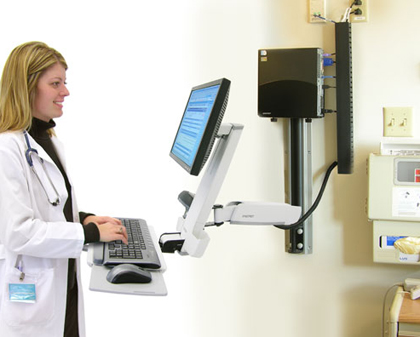

Application fo Ergotron 45-216-216 StyleView HD Combo System





Ergotron 45-216-216 StyleView HD Combo System White with Cables

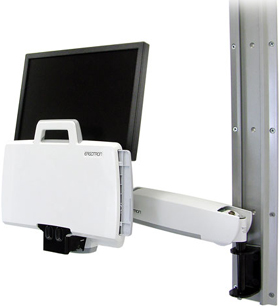

Folded image of Ergotron 45-216-216 StyleView HD Combo System White






Literature (Please open the following documents for more technical information)

Description

File Type

Ergotron 45-216-216 HD Combo System - Product Sheet

- pdf

Ergotron 45-216-216 StyleView HD Combo System - Dimensional Illustrations

- pdf

Ergotron 45-216-216 HD StyleView Combo System - Installation Manual

- pdf










Ergotron Logo



Hyperlink of all Ergotron products





Model 45-216-216
Manufacturer Ergotron
Part Number 45-216-216
UPC 698833010718
Weight 42.00 lb(s)
Color White
Weight Capacity 6-18 lbs
Lift 20" in
Tilt 30 Degrees degree
Mounting Pattern Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Shipping Weight 42 lbs (18.9 kg)
Shipping Dimensions 12.6"H x 37.7"W x 19.7"D (316 x 958 x 500 mm)
Warranty Five (5) years
