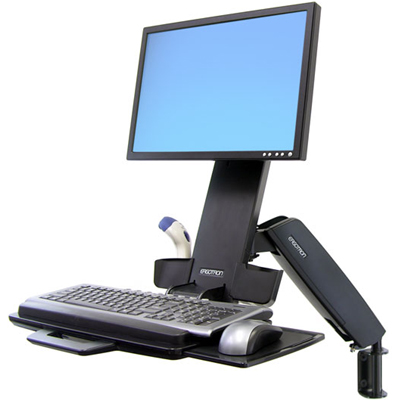

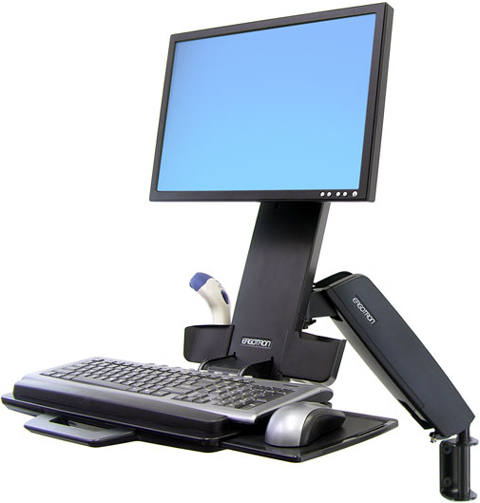

Ergotron 45-215-200 StyleView HD Heavy Duty Combo Arm Mount for up to 24" LCD LED 45215200 Black
|
|
|
|
|
|
|
|
Description of Ergotron 45-215-200 Combo LCD Arm:
|
|

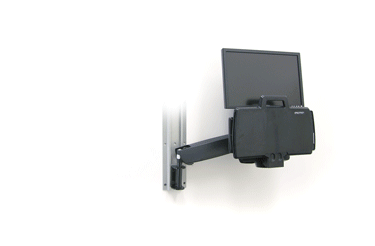

The SV HD Combo holds a monitor, bar-code scanner, keyboard, wrist rest and mouse on the same arm, providing easy, single-motion height adjustment. Arm extends and retracts, fold back out of the way when not in use. Work sitting or standing with the arm's 20" (51 cm) LCD height adjustment range. A unique cable management system conceals and organizes cords, making cleaning easy.
|
|
|
|
|
|
|
|
Technical Drawing for Ergotron 45-215-200 StyleView HD Combo LCD Arm Black
|
|
|
|
|
|
|
|
Technical Specifications:
|
|
|
|
|
|
|
|
|
|
LCD Size
|
Wt. Capacity
|
Lift
|
Tilt
|
Pan
|
Rotation
|
VESA
|
|
up to 24"
|
6 - 18 lbs
2.7 - 8.2 kg
|
20"
51 cm
|
30 degree |
180 degree |
90 degree P/L
|
MIS-D
|
|
|
|
|
|
|
Product Information:
|
|
Part Number:
|
45-215-200
|
|
Description:
|
StyleView HD Combo (Black)
|
|
Included:
|
-
HD Combo Arm
-
Wall mount bracket
-
Height-adjustable LCD mount
-
Wrist rest
-
Scanner and mouse holder
-
Integrated keyboard tray with left/right mouse tray
-
Handle
-
VESA monitor mounting kit
-
Cable ties
|
|
Exterior:
|
Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and powder coated painted steel
|
|
Weight Capacity:
|
Display = 6-18 lbs (2.7-8.2 kg);
Keyboard, mouse and barcode scanner = 5 lbs (2.3 kg)
|
|
Lift Range:
|
LCD and keyboard adjusts 15" (38 cm) in tandem, LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 20" (51 cm)
|
|
Monitor up/down tilt:
|
+25 degree /-5 degree
|
|
Patended CF:
|
Patented CF lift-and-pivot motion technology provides premium five-inch (12.7 cm) LCD height adjustment, portrait to landscape rotation and 30 degree tilt
|
|
Mounting Standards:
|
VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
|
|
Barcode Scanner Holder:
|
Integrated Mouse and Barcode scanner holder provides easy access
|
|
Fold-down keyboard tray:
|
Includes mouse tray that slides out to either right of left side; tray features mouse-pad surface |
|
Negative-tilt keyboard tray:
|
Adjustable (0 to -10 degrees)
|
|
Optional:
|
18" (46 cm) extender arm (45-219-216 or 45-219-200) increases range of motion for even greater reach
|
|
Shipping Dimensions:
|
12"H x 20"W x 24"D (305 x 508 x 610 mm)
|
|
Shipping Weight:
|
25 lbs (11.3 kg)
|
|
Warranty:
|
Five (5) years
|
|
|
|
|
|
|
|
|
Benefits of Ergotron 45-215-200:
|
|
1. Flexible, open-architecture design is scalable for future computer equipment.
|
|
2. Comfortable, ergonomic data entry - work sitting or standing with 20" (51 cm) lift adjustment.
|
|
3. Five-inch (12.7 cm) independent LCD height adjustment ergonomically accommodates average range of users.
|
|
4. Easy to clean design promotes infection control.
|
|
5. Barcode scanner holder provides easy access to hand-held scanner.
|
|
6. Extend LCD and keyboard up to 39" (99 cm) from wall; fold equipment back out of the way when not in use. With keyboard in storage position, system depth is as little as 12" (30.5 cm).
|
|
7. Ergonomic negative-tilt keyboard tray (with left or right mouse tray) ensures wrists remain in a neutral position during data entry.
|
|
8. Maintains the relative position of screen and keyboard throughout full range of motion.
|
|
9. Clean, concealed and neat routing of cables through the expansive cable management system.
|
|
|
|
|
|
