The below item has been discontinued. See above for similar products that we offer instead. We apologize for this inconvenience.

Peerless LCT-A1B6C or LCT-A1B6H Desktop Two Link Articulating Pole Mount DISCONTINUED

Be the first to review this product
Product ID: 15826
Recommended Accessories
Our Price: $173.61
Shipping: $21.52 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States





Related Products:

Part Number

Description

LCT-A1B6H

Silver Universal Desktop Two Link Articulating Arm Pole Mount Bolt-Thru Hole

LCT-A1B6C

Silver Universal Desktop Two Link Articulating Arm Pole Mount Clamp Style





Accessories for Peerless LCT-A1B6 Desk Mount

Peerless ACC918 Security Fasteners

 Peerless ACC918 Security Fasteners

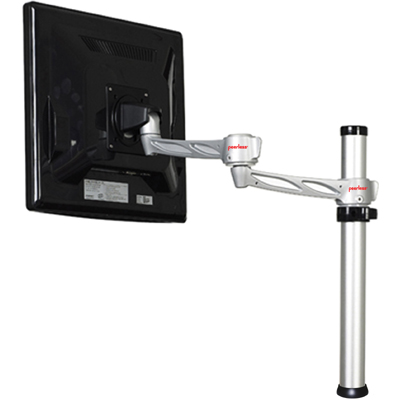

Peerless LCT-A1B6C or LCT-A1B6H Universal Desktop

Two Link Articulating Arm Pole Mount

Peerless LCT-A1B6C Desktop Two Link Articulating Arm Pole Mount Clamp









Features of Peerless LCT A1B6C or LCT A1B6H:

    1.  Tilts and Pivots: To provide virtually limitless viewing angles.



    2.  Cable Management: Integrated cable management system controls connecting cables with

      movement of arm.



    3.  Mounting Options for all surfaces: Desk clamp and desk bolt available.



    4.  Pole mount with two-link arm extends up to 21" (534 mm), enables 14.3" (365 mm) of height

      adjustment.



    5.  Quick and easy to install.



    6.  Arm extends up to 21" from the base.



    7.  Compatible with VESA 75/100 mounting hole patterns.



    8.  One-touch tilt adjustment allows screen to be tilted up to 20° or back to 30° without the use of

         tools.



    9.  Screen can be turned left or right up to 360° in either direction for the best possible viewing

         angle.



  10.  Silver finish.

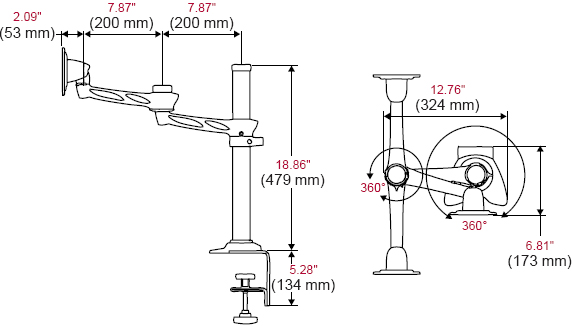

Technical Drawing for Peerless LCT A1B6 Desktop Two Link

Articulating Arm Pole Mount



Technical Drawing for Peerless LCT-A1B6C or LCT-A1B6H Desktop Two Link Articulating Arm Pole Mount









Description of Peerless LCTA1B6C or LCTA1B6H:

It is quick and simple to position the monitor to the users ideal viewing point and maximize work area when it is mounted on this desktop mount. This model is ergonomically designed and features smooth motion, spring-loaded architecture for the easiest height, depth and tilt adjustment of the monitor, assisting with reduced eye and neck strain.







Specifications:

Dimensions (W x H x D):

LCT-A1B6H: 6.81-17.83" x 6.34" x 18.86" (173 - 453 x 161 x 479 mm)

LCT-A1B6C: 6.81-17.83" x 6.34" x 24.1" (173 - 453 x 161 x 479 mm)

Product Weight:

LCT-A1B6H: 5.5 lb (2.5 Kg)

LCT-A1B6C: 8.8 lb (4 Kg)

Load Capacity:

17.5 lb (8 Kg)

Minimum Screen Size:

15"

Maximum Screen Size:

24"

Finish:

Aluminum

Available Color:

Silver

Package Size (L x W x H):

LCT-A1B6H: 32.08" x 14.96" x 6.5" (815 x 380 x 165 mm)

LCT-A1B6H: 32.08" x 14.96" x 6.5" (815 x 380 x 165 mm)

Package Ship Weight:

LCT-A1B6H: 9.2 lb (4.2 Kg)

LCT-A1B6C: 12.5 lb (5.7 Kg)

Package UPC Code:

LCT-A1B6H: 735029262268

LCT-A1B6C: 735029262251

Package Contents:

  • Mount

  • VESA 75/100 mm adapter plate

  • All necessary mounting and screen attachment hardware

Units in Package:

1

Warranty:

Limited 5 years

Accessories:

AC918: Security Fasteners






Literature (Please open the following documents for more technical information)

Description

File Type

Peerless LCTA1B6 Desktop Articulating Arm Pole Mount - Installation Assembly

reader-14.jpg - pdf

Peerless LCT-A1B6C Two Link Articulating Arm Pole Mount - Product Sheet

reader-14.jpg - pdf
