General Information

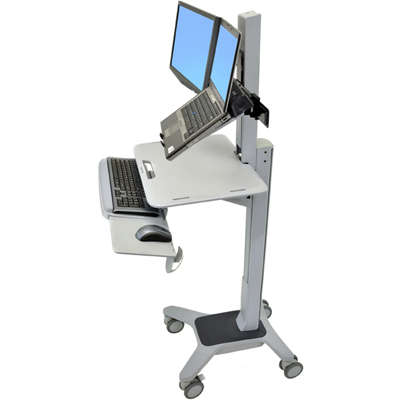

Description of Ergotron 24-195-055 Cart:

Stay energized and productive while you compute - move from a sitting to a standing position whenever you want. This workstation’s large work surface and height-adjustable keyboard tray and display make computing comfortable for prolonged periods.

Counterbalanced adjustment points allow instantaneous, tool-free re-positioning while you work! Additional features include 25" (63 cm) total height adjustment, a small footprint and advanced cable management.

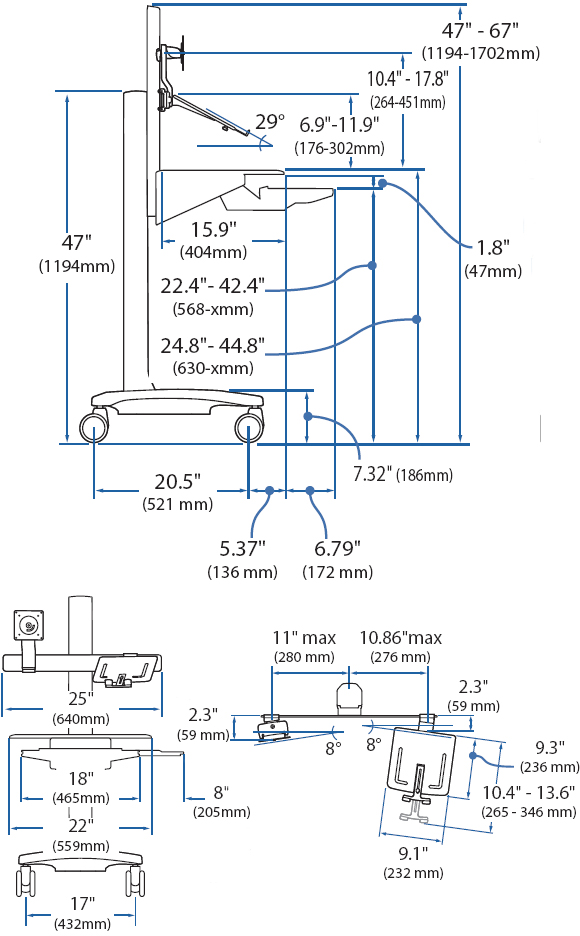

Technical Drawing for Ergotron 24-195-055 WorkFit C-Mod Sit-Stand

 Workstation for Combination of Notebook and LCD Display

Technical Specifications:

     LCD Size

 Wt. Capacity

     Lift

Tilt

Pan

Rotation

VESA

up to 24"

7 - 20 lbs
3.1 - 9.1 kg

360° P/L

MIS-D

Product Information:

Part Number:

24-195-055

Description:

WorkFit C-Mod for Combination Laptop and LCD Monitor (two-tone grey)

Included:

• Cart

• Laptop platform

• One sliding monitor bracket

• Integrated worksurface

• Keyboard tray with left/right mouse tray

• Wrist rest

• Mouse holder

• Cable storage box

• Four dual casters (two locking)

Weight Capacity:

Maximum load on height-adjustment assembly = 37 lbs (16.8 kg). Includes weight of displays in addition to contents on Worksurface and in Cable Storage Box.

Laptop = 6–10 lbs (2.7–4.5 kg); monitor = 6–16 lbs (2.7–7.2 kg

Lift Range:

LCD/notebook/worksurface adjusts 20" (51 cm) in tandem,

LCD and laptop adjusts 5" (13 cm) independently,

Maximum LCD height adjustment = 25" (63 cm)

Mounting Standards:

VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)

Designed:

Designed for use with a separate, external keyboard for proper ergonomics

Keyboard Tray:

Ergonomic negative-tilt keyboard tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity. Includes concealed mouse tray that slides out on left or right

Exterior:

Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and powder-coated painted steel

Casters:

Four dual casters - lockble front casters

Work surface Dimensions:

22"W x 17"D (56 x 43 cm)

Wheel-to-Wheel Base Dimensions:

17"W x 20.5"D (43 x 52 cm)

Shipping Dimensions:

45.5"H x 19.75"W x 24"D (116 x 50 x 61 cm)

Shipping Weight:

98 lbs (44.6 kg)

Warranty:

Five (5) years

A Washington State Analysis:

A Washington State analysis of case studies related to office ergonomics showed a median productivity increase of 12% following an ergonomic intervention. New studies from the Office Ergonomics Research Committee (OERC) suggest that employees who are provided with well-designed ergonomic furniture and are trained to use it see an average productivity increase of 18%

Others:

• Patented Constant Force (CF) lift-and-pivot motion technology

• Cable management storage box

Benefits of Ergotron 24-195-055:

For Computer Users:

    1.  On-demand sit-stand workstation - improve your energy and productivity by standing or sitting

      as you work, and then switch positions whenever you choose. This work style encourages

      healthy movement throughout the day.

    2. Combine your laptop with an LCD display to create a productive dual-display

         configuration.

    3. Promote fitness and comfort as you compute, reducing potential back and neck pain by

      adding movement into your work routine in a truly ergonomic workstation.

    4.  Easily and simultaneously lift keyboard, laptop and monitor screen to proper height for

         unsurpassed ergonomic comfort.

    5.  Patented Constant Force lift technology provides fluid, one-touch adjustments of the keyboard

      and monitor positions for personalized computing.

    6.  Mobile configuration brings flexibility into the workspace. Easily moves through small

      doorways and over thresholds for collaborative meetings.

    7.  Burn more calories by choosing to stand for periods of your work-day; periodic standing also

     promotes greater bone density and better sleep at night.

For IT and Facilities Staff:

    1.  IT deployment friendly - set aside several fully equipped WorkFit C-Mods for temporary

      workers, unassigned workstations (aka hoteling or hot desking) or telecommuter work pods,

      roll to the place of need (easily stored and ready to roll)

    2. Modify existing office spaces or cubes by simply removing a section of worksurface and rolling

         in the sit-to-stand WorkFit, without the cost of expensive professional installers.

    3. Safe and neat routing of cables through the expansive cable management storage area.

    4.  Flexible, open-architecture design is scalable for future computer equipment.

    5.  Takes less time to retrofit existing stations or repurpose for changing workforce, reduces

      facility spend.

For HR/Risk Management and Company Cost Savings:

    1.  Manage the cost of healthcare premiums by promoting wellness in the daily work routine.

    2. Provide standing work platforms for employees without having to buy expensive height-

         adjustable chairs.

    3. Comfortable computing offers provable ROI on investment - healthcare costs associated with

      unhealthy computing and missed time are reduced while productivity increases.

    4.  WorkFit helps alleviate back and neck pain, the most costly conditions affecting employees

         according to the 2007 OE Medicine Journal.

    5.  Studies show an average productivity increase of 20 - 30% when using two displays instead of

      one.

    6.  Studies in office ergonomics show productivity increases 12% - 18% following an ergonomic

      intervention where employees are provided with well-designed ergonomic furniture.

    7.  Biz4You Program - Complimentary units available to 1000+ seat companies to prove

      WorkFit’s value. Contact an Ergotron representative for details.
