Peerless LCT-A1B4C or LCT-A1B4H Dual Desktop Two Link Articulating Pole Mount

This product has been discontinued.

Related Products:

Part Number	Description
LCT-A1B4H	Silver Universal Dual Arm Desktop Two Link Articulating Pole Mount Bolt-Thru Hole
LCT-A1B4C	Silver Universal Two Link Articulating Dual Arm Desktop Pole Mount Clamp Style

Accessories for Peerless LCT-A1B4 Dual Desktop Mount

Peerless ACC918 Security Fasteners

Peerless ACC328 Laptop Tray

General Information

Nationwide Delivery Image

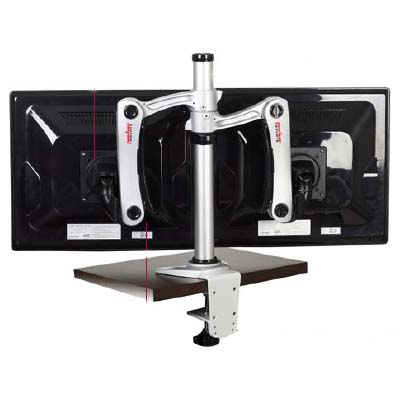

Peerless LCT-A1B4C or LCT-A1B4H Universal Dual Desktop Arm

Two Link Articulating Pole Mount

Peerless LCT-A1B4C Universal Articulating Dual Desktop Arm Pole Mount

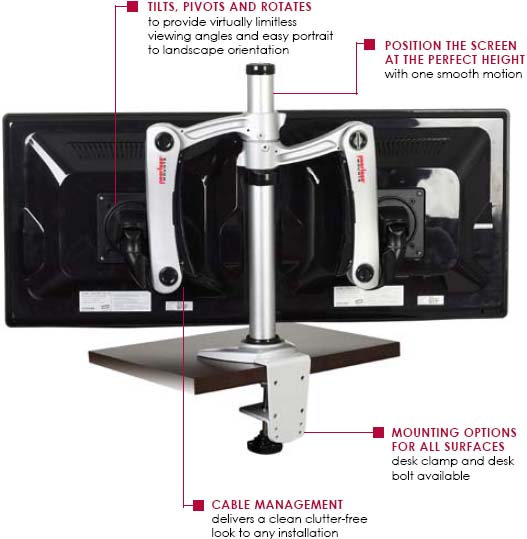

Features of Peerless LCT A1B4C or LCT A1B4H:

1. Tilts, Pivots and Rotates: To provide virtually limitless viewing angles and easy portrait to

landscape orientation.

2. Cable Management: Delivers a clean clutter-free look to any installation. It controls

connecting cables with movement of arm.

3. Mounting Options for all surfaces: Desk clamp and desk bolt available.

4. Dual arm design can support any combination of 15” to 24” (38 - 61 cm) monitors.

5. Quick and easy to install.

6. Compatible with VESA 75/100 mounting hole patterns.

7. One-touch tilt adjustment allows screen to be tilted up to 20° or back to 30° without the use of

tools.

8. Screen can be turned left or right up to 360° in either direction for the best possible viewing

angle.

9. Silver finish.

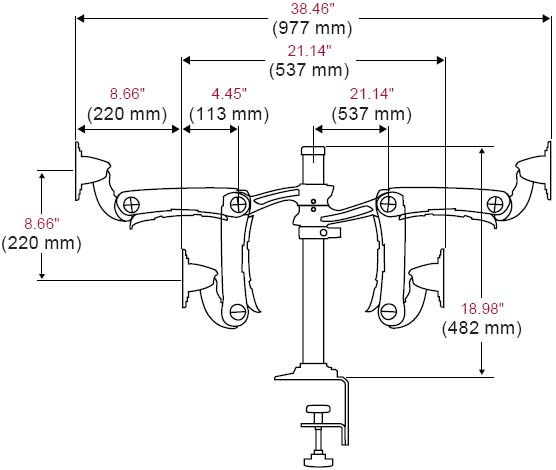

Technical Drawing for Peerless LCT A1B4 Universal Dual Desktop Arm

Two Link Articulating Pole Mount

Technical Drawing for Peerless LCT-A1B4 Articulating Dual Desktop Arm Two Link Pole Mount

Description of Peerless LCTA1B4C or LCTA1B4H:

It is quick and simple to position the monitor to the users ideal viewing point and maximize work area when it is mounted on one of these six single or dual screen desktop mount models. Each of the six models is ergonomically designed and features smooth motion, spring-loaded architecture for the easiest height, depth and tilt adjustment of the monitor, assisting with reduced eye and neck strain.


Specifications:
Dimensions (W x H x D):	LCT-A1B4H: 21.4" - 38.7" x 21.4" x 5.9" (545 - 985 x 544 x 151 mm) LCT-A1B4C: 21.4" - 38.7" x 26.2" x 5.9" (545 - 985 x 668 x 151 mm)
Product Weight:	LCT-A1B4H: 9.9 lb (4.5 Kg) LCT-A1B4C: 13.2 lb (6 kg)
Load Capacity:	17.5 lb (8 Kg)
Minimum Screen Size:	15"
Maximum Screen Size:	24"
Finish:	Aluminum
Available Color:	Silver
Package Size (L x W x H):	LCT-A1B4H: 32.08" x 14.96" x 6.5" (815 x 380 x 165 mm) LCT-A1B4C: 32.08" x 14.96" x 6.5" (815 x 380 x 165 mm)
Package Ship Weight:	LCT-A1B4H: 14.3 lb (6.5 Kg) LCT-A1B4C: 17.5 lb (8 Kg)
Package UPC Code:	LCT-A1B4H: 735029264576 LCT-A1B4C: 735029264569
Package Contents:	Mount VESA 75/100 mm adapter plate All necessary mounting and screen attachment hardware
Units in Package:	1
Warranty:	Limited 5 years
Accessories:	AC918: Security Fasteners

Literature (Please open the following documents for more technical information)

Description	File Type
Peerless LCTA1B4 Dual Articulating Desktop Mount Pole Arm - Installation Assembly	- pdf
Peerless LCT-A1B4 Dual Two Link Articulating Pole Mount Arm - Product Sheet	- pdf
