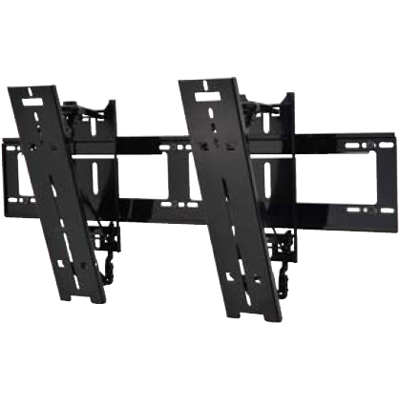

Peerless SUT660P Universal Ultra-thin Tilt Wall Mount
for 37 to 60 inch Screens weighting up to 100 lbs
|
|
|
|
|
|
|
|
Features of Peerless SUT 660P:
|
|
1. Holds screen .68" (17 mm) from the wall.
|
|
2. Screen extended up to 5.5" (140 mm) from the wall allowing for hand-free installation access to the back of the screen.
|
|
3. Full motion tilt allow for +17.5/-5°.
|
|
4. Screen adapters simply hook on to wall plate for quick and easy installation.
|
|
5. Horizontal adjustment up to 8" (203 mm).
|
|
6. Screen Mounting Requirements:
-
The depth of this mount (.68" (17 mm)) may not provide sufficient space for proper heat ventilation on some screens. Refer to the manufacturer’s requirements for mounting your screen before installation.
-
The screen must have a flat mounting surface or the mounting holes need to be on the furthest back surface of the screen.
|
|
|
|
|
|
|
|
Technical Drawings for Peerless SUT660P Universal Ultra-thin
Tilt Wall Mount for 37 to 60 inch Screens Weighting up to 100 lbs
|
|
|
|
|
|
|
|
Description of Peerless SUT-660P:
The SUT660P Slimline Universal Ultra-thin Tilt Wall Mount is the industry’s thinnest tilt wall mount that delivers an aesthetically-pleasing mounting solution with no sacrifice to functionality. Its innovative design and use of new technologies merge style with state-of-the-art continuous tilt technology, horizontal adjustment, and installer-friendly features. Complementing its versatility and functionality is a sleek, ultra-low profile design with a high gloss black finish that harmonizes the TV with the mount. The SUT660P provides the ultimate combination looks and functionality in an ultra-thin package for the perfect, close-to- the-wall TV installation.
|
|
|
|
|
|
Specifications:
|
|
Model:
|
SUT660P - Includes standard hardware (hex or Phillips) for attaching screen to mount.
|
|
Color:
|
Gross Black
|
|
Screen Adapter
(Mounting Pattern):
|
31.53" W x 16.06" H (801 x 408 mm)
|
|
Distance From Wall:
|
0.68" - 5.55" (17 - 140 mm)
|
|
Tilt:
|
+17.5/-5°
|
|
Maximum Load:
|
100 lb (45 kg)
|
|
Product Dimensions
(W x H x D):
|
36.43" x 17.25" x .68" (930 x 438 x 17 mm)
|
|
Mounting Surfaces:
|
Wood stud, concrete, cinder block and metal stud (Metal stud accessory required)
|
|
Ship Weight:
|
11.5 lb (5.2 kg)
|
|
|
|
|
|
|
|
|
More Images:
|
|
|
|
|
